40
MAGFLO
â
Installation of signal
conv.
6. Installation of signal converter
6.2.3
Remote installation
Wall mount
(continued)

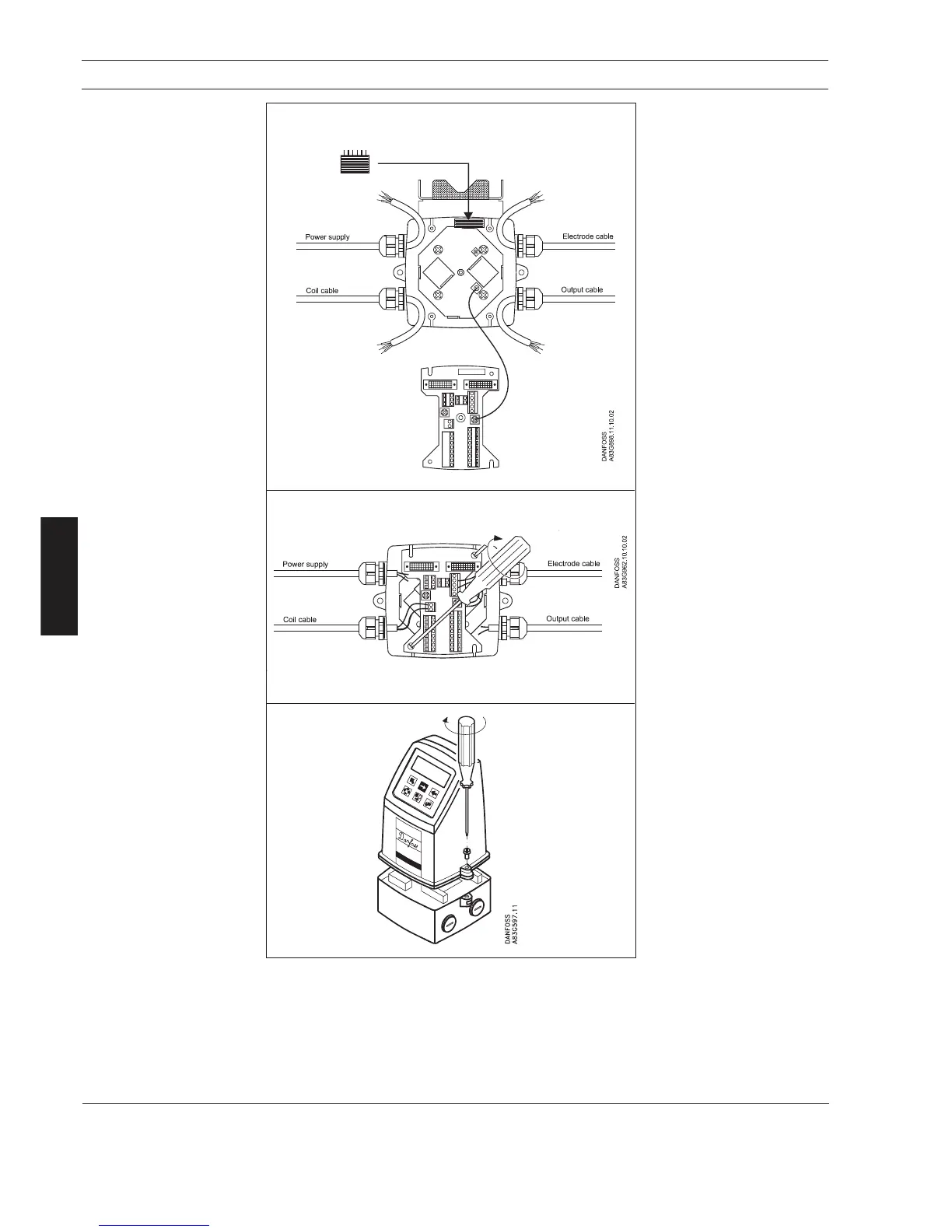

Step 4 (wall mounting)
Remove the SENSORPROM
®
unit from the sensor terminal
box. Mount the SENSOR-
PROM
®
unit in the wall mount-
ing terminal box as shown.
The text on the SENSOR-
PROM
®
unit must face to-
wards the wall bracket.
Mount an earth wire between
PE on the connection board
and bottom of connection box.
Step 5 (wall mounting)
Mount the connection board in
the terminal box. Fix the con-
nection board with the two dia-
gonal opposite screws.
Fit the coil, electrode, supply
and output cables respectively
and tighten the cable glands to
obtain optimum sealing.
Please see the wiring diagram
in section 7 for the electrical
connections.
Step 6 (wall mounting)
Mount the signal converter on
the terminal box.
Remove the SENSORPROM
®
unit
