76
MAGFLO
â
Ordering
10. Ordering
10.3

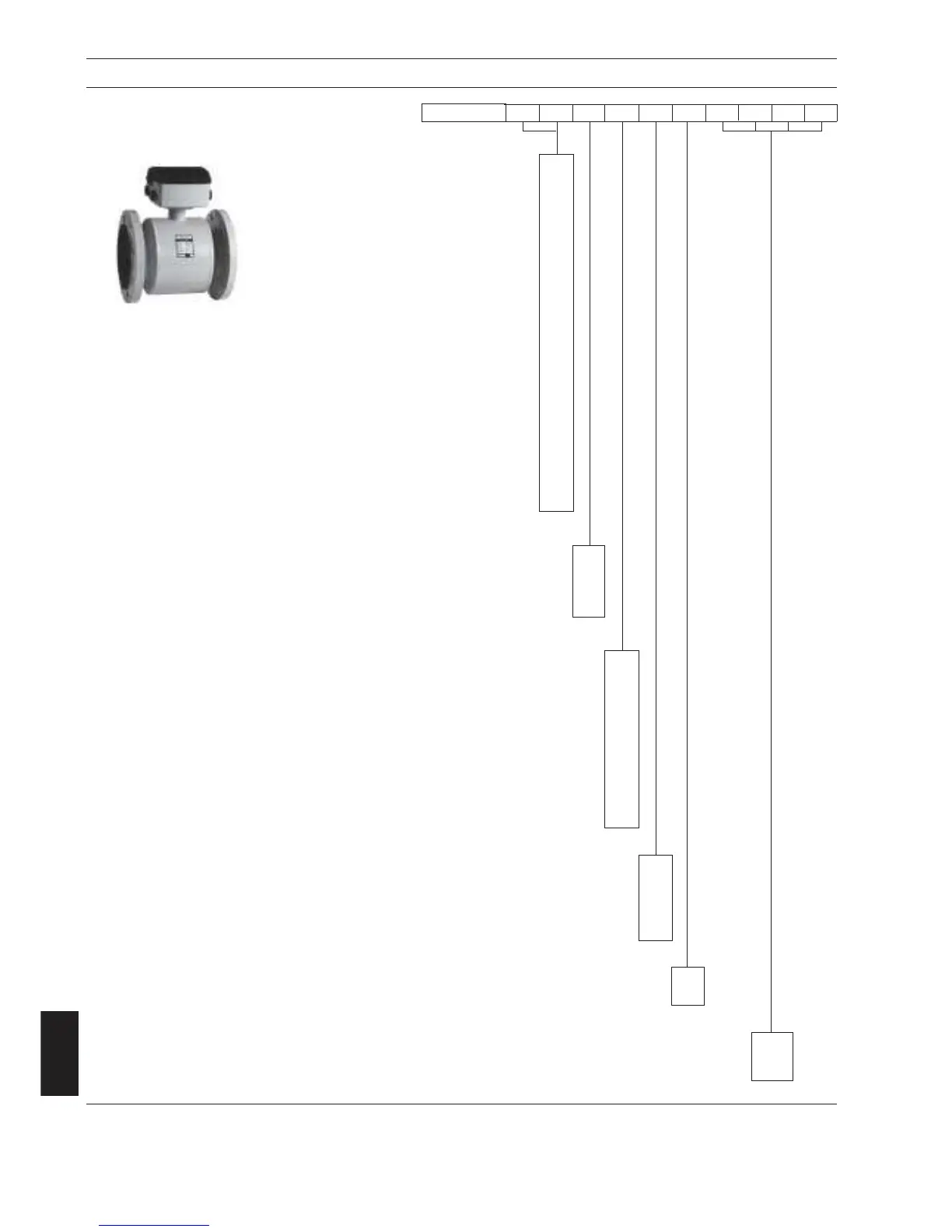

Sensor MAG 3100 and
MAG 3100 Ex
Type No.: MAG 3100 -
1. Nominal size (inch)
½" ........................................................................... 04
1" ............................................................................. 06
1½" .......................................................................... 08
2" ............................................................................. 09
2½" .......................................................................... 10
3" ............................................................................. 11
4" ............................................................................. 12
5" ............................................................................. 13
6" ............................................................................. 14
8" ............................................................................. 15
10" ........................................................................... 16
12" ........................................................................... 17
14" ........................................................................... 18
16" ........................................................................... 19
18" ........................................................................... 30
20" ........................................................................... 20
24" ........................................................................... 21
28" ........................................................................... 22
30" ........................................................................... 34
32" ........................................................................... 23
36" ........................................................................... 24
40" ........................................................................... 25
42" ........................................................................... 35
44" ........................................................................... 26
48" ........................................................................... 27
54" ........................................................................... 28
60" ........................................................................... 29
66" ........................................................................... 31
72" ........................................................................... 32
78" ........................................................................... 33
2. Liner material
Neoprene ............................................................................ 1
EPDM ................................................................................. 2
PTFE (Size
£ 12", max. 750 psi), ...................................... 3
(Size 14" to 24", max. 600 psi)
Ebonite ............................................................................... 6
Linatex
â
(max. 600 psi) ...................................................... 7
3. Flanges
EN 1092-1, PN 6 (DN 65 - 2000) .................................................... A
EN 1092-1, PN 10 (DN 200 - 2000) ................................................ B
EN 1092-1, PN 16 (DN 65 - 2000) conform to PED 97/23/EC ....... C
EN 1092-1, PN 16 (DN 700 - 2000) not conform to PED 97/23/EC W
EN 1092-1, PN 25 (DN 200 - 600) ................................................. D
EN 1092-1, PN 40 (DN 15 - 600) ..................................................... E
EN 1092-1, PN 63 (DN 50 - 400) not with PTFE ............................ Q
EN 1092-1, PN 100 (DN 25 - 350) not with PTFE .......................... R
ANSI class 150 (½" - 24", 300 psi) ............................................ F
ANSI class 300 (½" - 24", 750 psi) ............................................ G
AS 2129, Table E (½" - 48", 210 psi) ........................................... N
AWWA C-207, class D (28" - 78", 150 psi) ................................ O
AS 4087 Class 14 (2" - 48", 210 psi) ............................................ P
AS 4087 Class 21 (DN 50 - 600, 21 bar) ..................................... T
AS 4087 Class 35 (DN 50 - 600, 35 bar) ..................................... V
4. Electrode material/Grounding electrodes (not PTFE)
AISI 316 Ti, ceramic coated (Grounding electrodes not coated) ........... 1
AISI 316 Ti (standard) ............................................................................... 2
Hastelloy C-276 ......................................................................................... 4
Platinum/iridium (80/20) ............................................................................. 5
Titanium ..................................................................................................... 6
Monel ......................................................................................................... 7
Tantalum .................................................................................................... 8
5. Flange and housing material
Carbon steel flanges and housing (grey coating) (standard) ............................ 1
AISI 304 flanges/carbon steel housing (grey coating) ........................................ 2
AISI 316 L flanges/housing (polished) ................................................................. 3
6. Temperature/Ex-version
Standard ........................................................................................................................................... 1000
High temperature (PTFE only, size
£ 12", max. 750 psi) ................................................................. 2100
EEx e ia IIC T4-T6 (14"- 78") ............................................................................................................ 4000
EEx ia ib IIB T4-T6 (½"- 12") ............................................................................................................ 4100
