Danfoss Maneurop NTZ Series User Manual

12

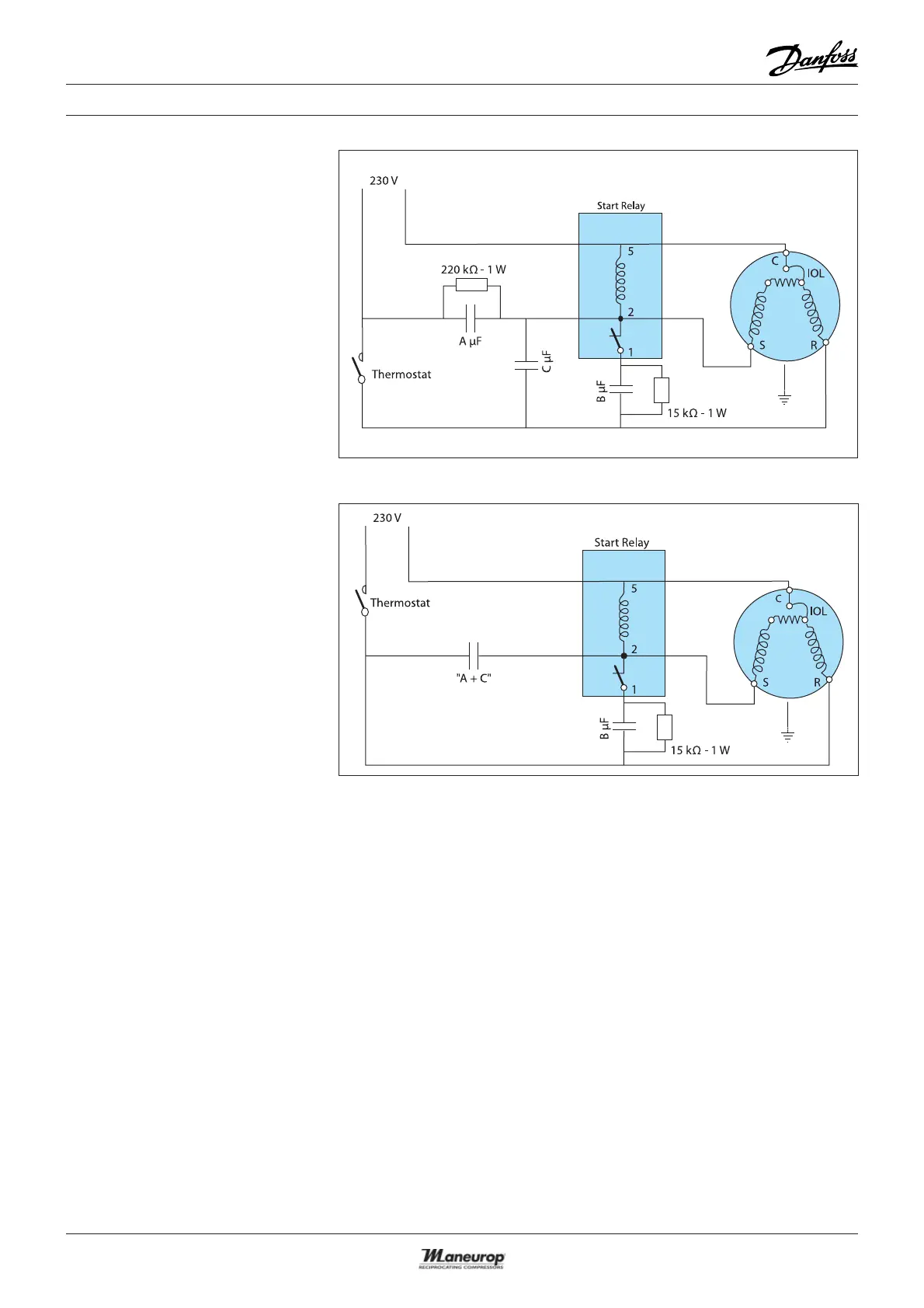

ELECTRICAL CONNECTIONS AND WIRING
Single phase
CSR wiring
with trickle circuit
IOL Motor protector
A & C Run capacitors
B Start capacitor
C Common
S Start winding (auxiliary)
R Run winding (main)
IOL Motor protector
A + C Run capacitors
B Start capacitor
C Common
S Start winding (auxiliary)
R Run winding (main)
Capacitors A and C are replaced by a single
capacitor of size A + C
Single phase
CSR wiring without trickle
circuit
