Danfoss Maneurop NTZ Series User Manual

6
Compressor
model
Swept
volume
cm
3
/rev
Displacement Nominal ratings*
Number
of
cylinders
Oil
charge
litre
Net
weight
kg
50 Hz
2900 rpm
m
3
/hr
60 Hz
3500 rpm
m
3
/hr
50 Hz 60 Hz
Cooling
capacity
W
COP
W/W
Cooling
capacity
W
COP
W/W
NTZ048 48 8.4 10.1 995 1.15 1190 1.13 1 0.95 21
NTZ068 68 11.8 14.3 1749 1.15 1870 1.10 1 0.95 23
NTZ096 96 16.7 20.2 2002 1.15 2395 1.16 2 1.8 35
NTZ108 108 18.7 22.6 2465 1.16 2788 1.10 2 1.8 35
NTZ136 136 23.6 28.5 3225 1.11 3739 1.12 2 1.8 35
NTZ215 215 37.5 45.2 4948 1.19 5886 1.19 4 3.9 62
NTZ271 271 47.3 57.0 6955 1.24 8058 1.21 4 3.9 64

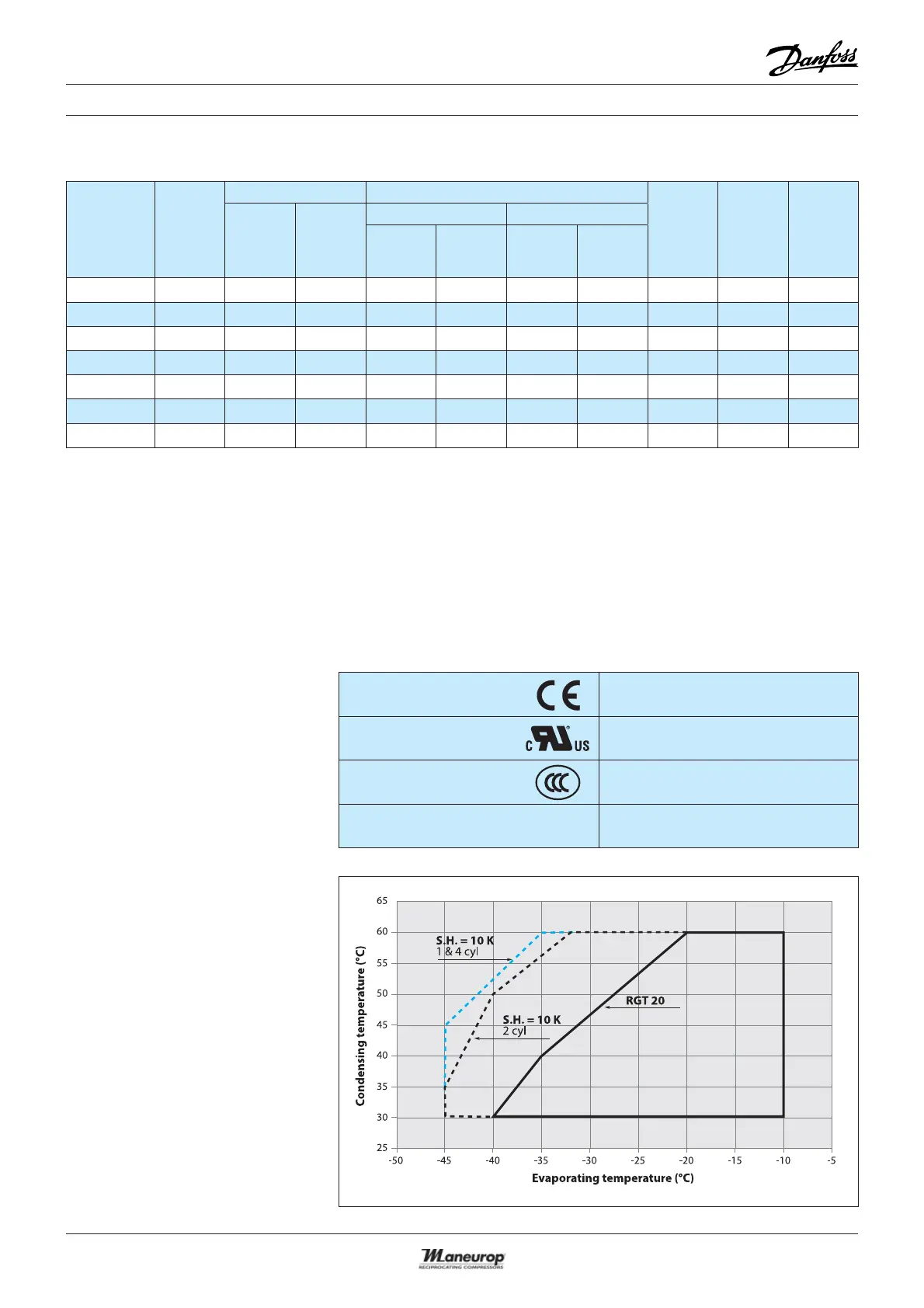

SPECIFICATIONS
Technical speci cations and nominal ratings
Operating envelope
R404A / R507A
(*) Motor code 4 operating conditions: R404A, Evap. temp.: -35°C, Cond. temp.: 40°C, RGT: 20°C, SC: 0K
For full NTZ data details and capacity tables refer to Online Datasheet Generator: www.danfoss.com/odsg
Approvals and certi cates Maneurop® NTZ compressors comply
with the following approvals and cer-
ti cates.
Certi cates are listed on the product
datasheets:
http://www.danfoss.com/odsg
Versions Available equipment version:
R1: Rotolock suction and discharge
connections, 3/8"  are oil equalisation
connection, threaded sight glass.
CE
(European Directive)
All models
UL
(Underwriters Laboratories)
Models with motor voltage code 1, 3 & 4
NTZ048 - 9 & NTZ068-9
CCC (China Compulsory
Product Certi cation)
Models with motor voltage code 4 & 5.
Gost
certi cate (for Russia)
Models with motor voltage code 4 & 5.
