Danfoss Maneurop NTZ Series - Outline Drawings; 1 Cylinder

Oil equalisation
3/8”
PTC crankcase heater
25
98
Schrader
1/4”
26
3
333
Suction rotolock
1”1/4
Discharge rotolock
1”
68
82
109
118
35°
33°
68
Suction 147
Discharge 142
159
17
17°
123
39
Threaded oil
sight glass
141
ø 224
68
HM8-40
23
15
Silent block
7
1 cylinder

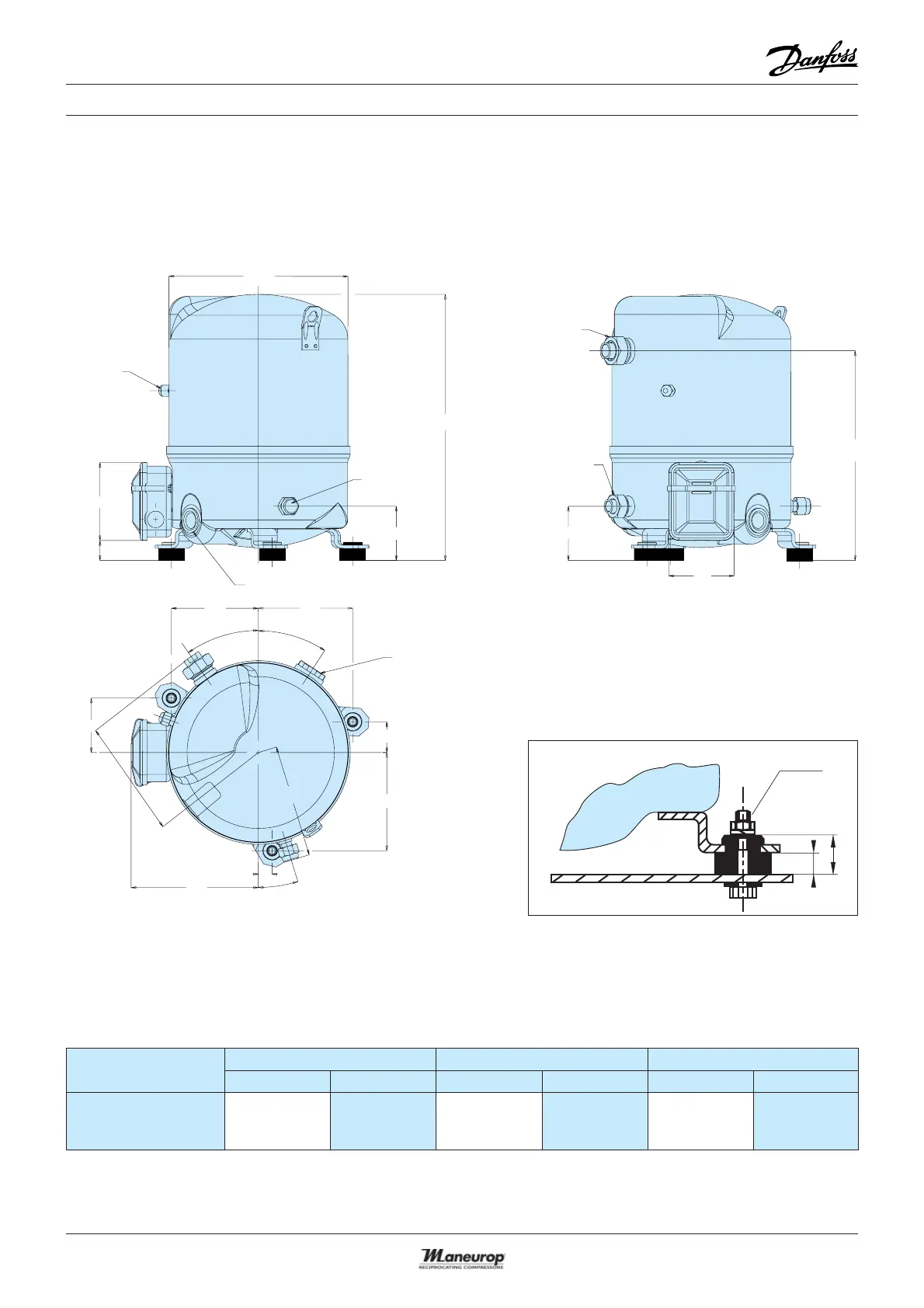

OUTLINE DRAWINGS
Rotolock connections size Pipe sizing Rotolock valve
Suction Discharge Suction Discharge Suction Discharge
NTZ048
NTZ068
1”1/4 1” 5/8” 1/2” V09 V06
