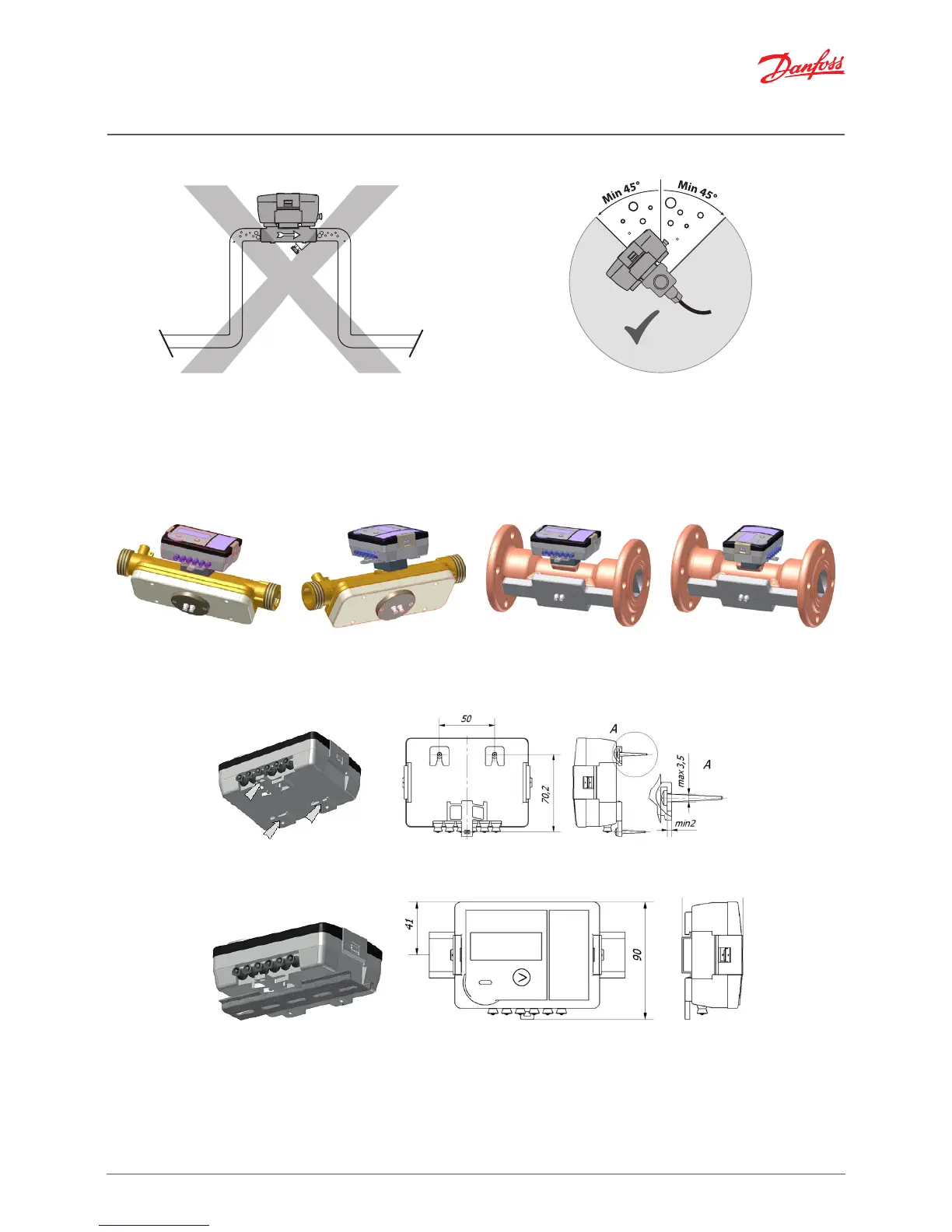

1.3. Mounting of flow sensor
Pipe position: No limitations but avoid positions
where air can be collected.
Rotation in pipe axis: Flow sensor should be angled
in 45 to 315° to avoid air collection in flow sensor.
1.4. Mounting and sealing of calculator
Direct mounting on ultrasonic flow sensor housing, turning every 90° (only when the temperature of the
flow does not exceed 90° C):
a) On the flow sensor with a thread connection b) On the flow sensor with flange connection
On the wall:
Panel mounting on standard DIN-rail:
