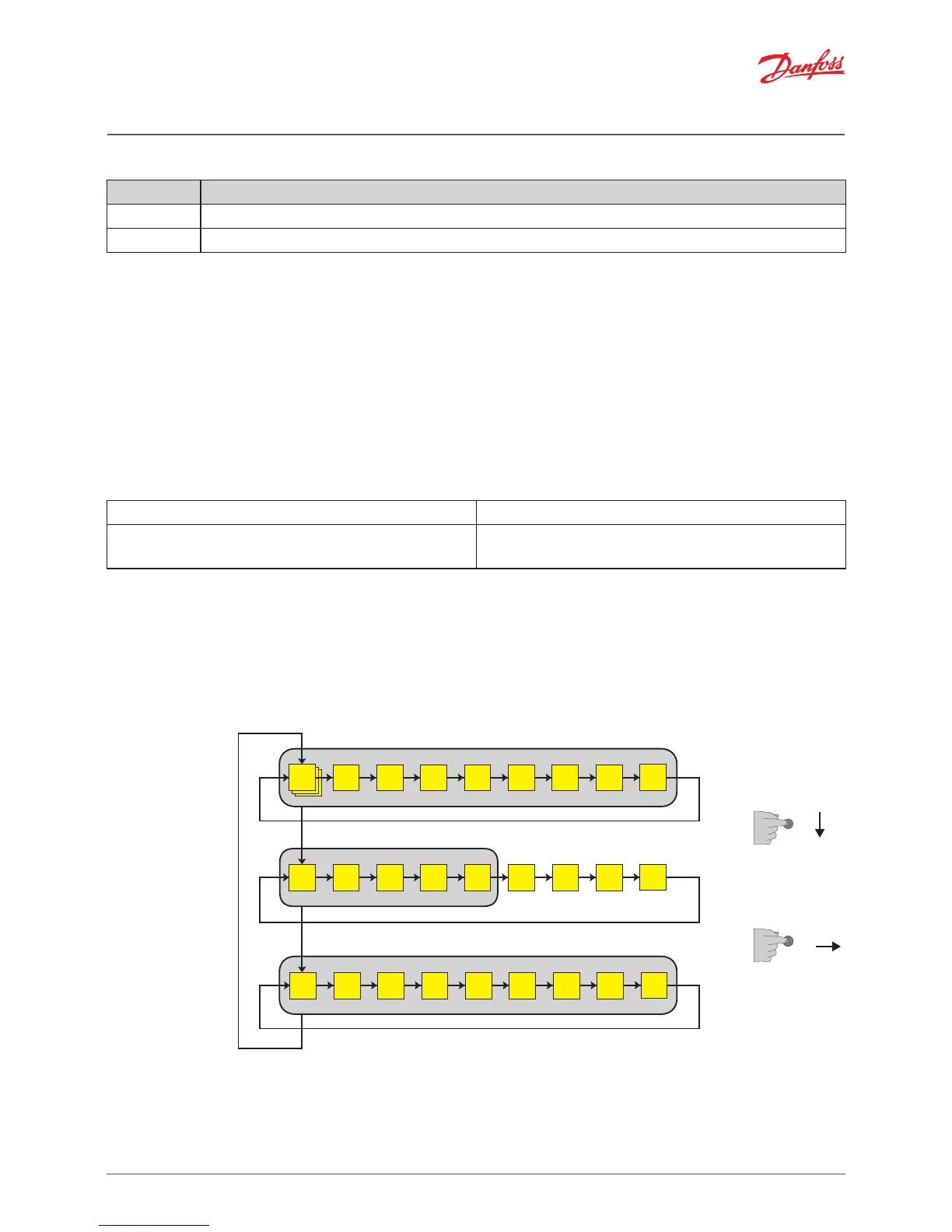

External power supply module
Terminals Description
54 Mains supply 24 V AC/DC (bipolar)
55 Mains supply 24 V AC/DC (bipolar)
3. Commissioning
3.1. Bleeding
1. Bleed the system until the flow rate display is steady.
2. Make sure no error codes are displayed.
3. Check the display for a plausible indication of flow rate and temperatures.
3.2. IP class
Calculator IP65
Flow sensor IP65 for heat meter
IP67 for heat and cooling meter
4. Display function overview
4.1. Menu structure
1.1 1.2 1.3 1.4 1.51.6 1.7
1.8
1.9
2.1 2.2 2.3 2.4 2.52.6.1 2.7.12xx 2.15.1
3.1 3.2 3.3 3.4 3.5
3.6.13.7 3x 3.15
L1
Integral parameters
L2
Statistical data
L3
Informative parameters
Long press
Short press
To Next Page
