Installation & User Guide SonoMeter 30

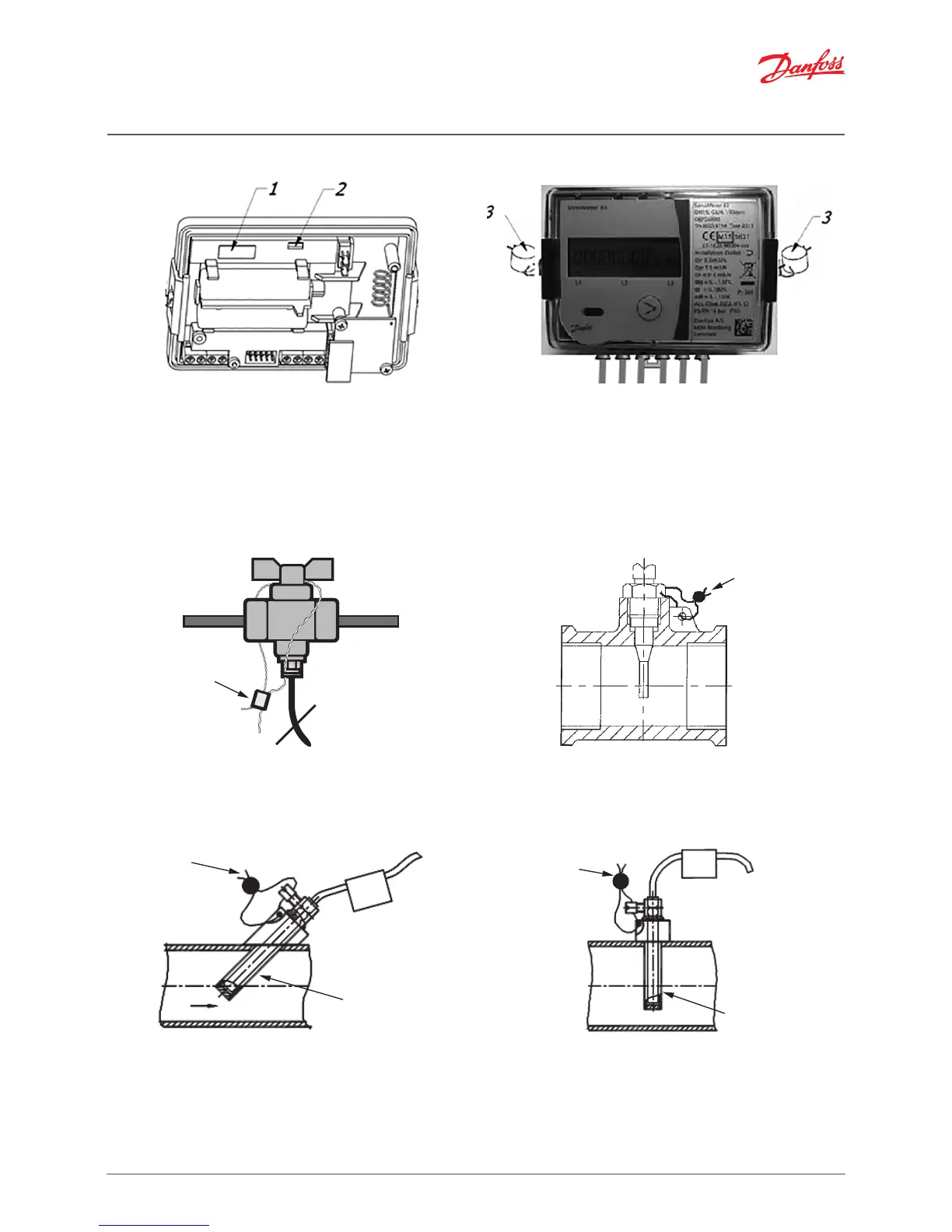

Calculator seals
1: Manufacturer adhesive seal-sticker on the access to the adjustment activation jumper -verification seal.
2: Manufacturer adhesive seal-sticker on the fixer of the cover protecting electronic module -manufacturer
security seal.
3: Mounting seal after installation.
1.5. Mounting and sealing of temperature sensors
Seal
Seal
Installation recommendations for
ball valve mounting and sealing
Installation recommendations for
direct short temperature sensors
Seal
Pocket
a) angled 45°
Seal
P
ocket
b) perpendicular
Installation recommendations for pocket temperature sensors with permanently connected signal leads.
