30 of 114

M-AP-001-EN Rev. Q

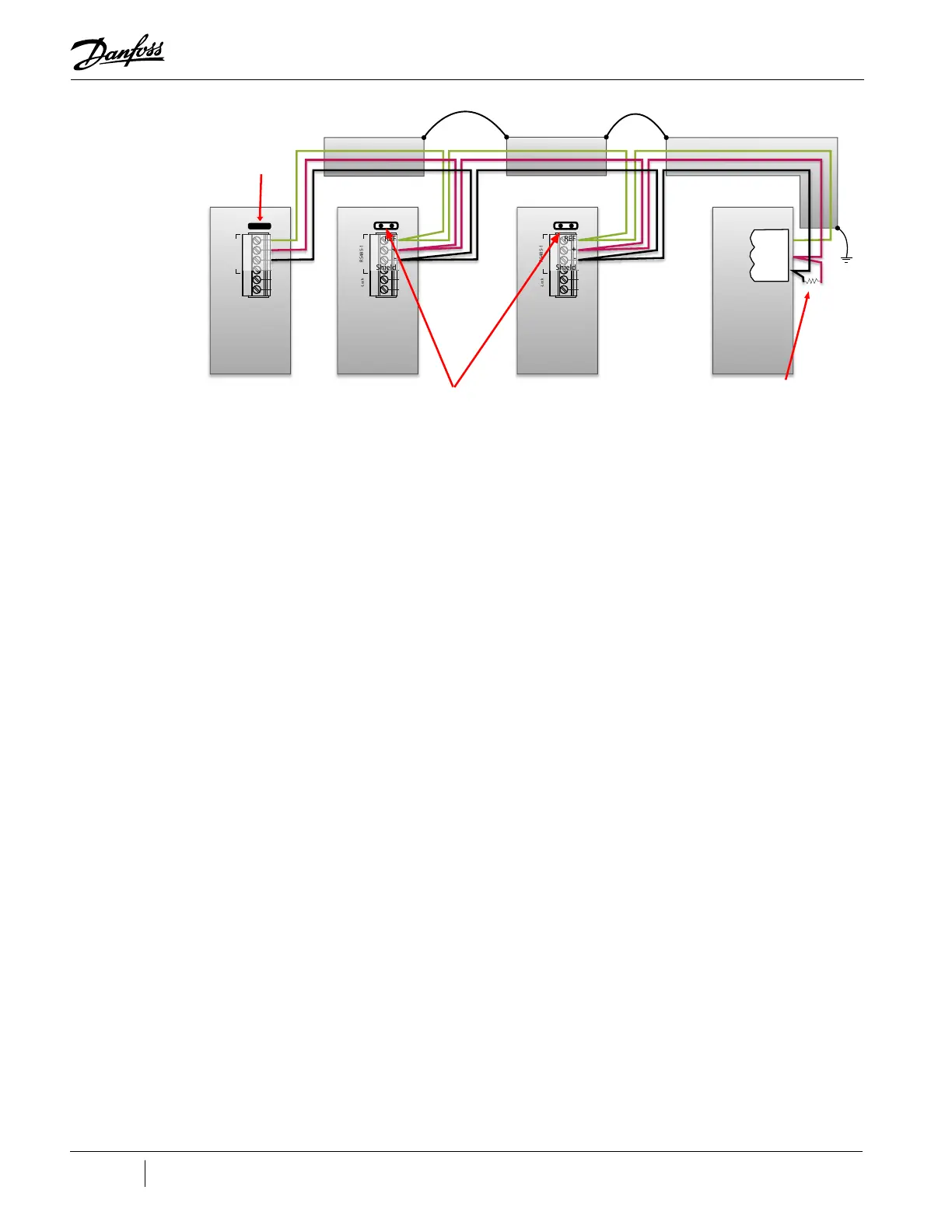

Figure 4-2 Modbus Grounding Diagram

RS485-1

I-Lock

CIM Board

RS485-1

I-Lock

CIM Board

RS485-1

I-Lock

CIM Board

REF

Shield

REF

Shield

REF

Shield

REF

120Ω

PLC

COM NETB NETA

MODBUS

Retain

Termination

Jumper in

Last Board

Remove Termination

Jumper in All

Intermediate Boards

Termination Resistor should only be included

if one is not included in the PLC. If the PLC

has a resistor installed, do not add an addi-

tional one. If the PLC does not have a resistor

installed, then one should be installed.
