33 of 114M-AP-001-EN Rev. Q

4.3 Compressor I/O Board Mounting Details

The Compressor I/O Board (Figure 4-4) must be installed in a Underwriters Laboratories (UL) approved

electrical enclosure equipped with DIN EN 50022, 50035, or 50045 mounting rails. The board should

be mounted in a dry area, free from vibration and electrical noise.

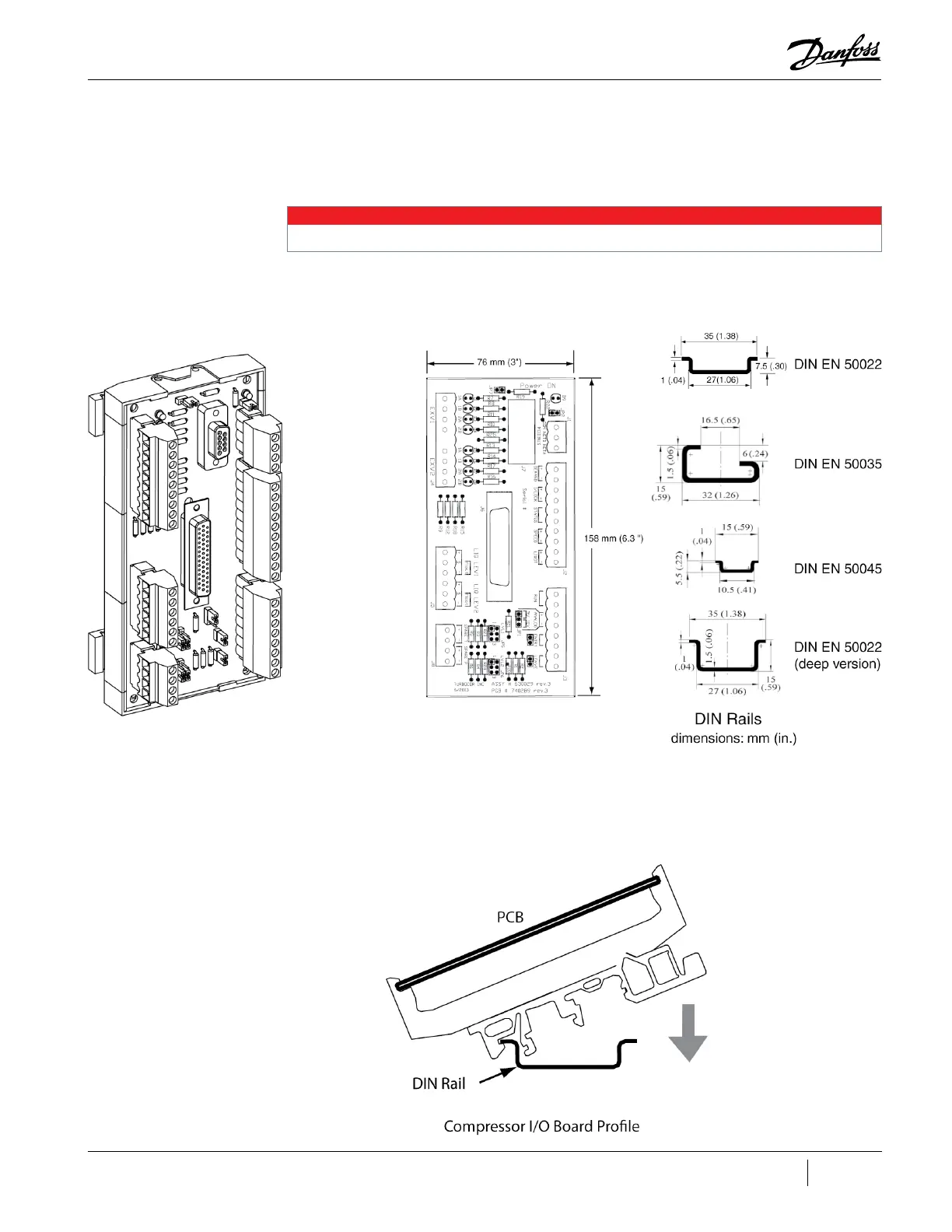

Figure 4-4 Compressor I/O Board

4.3.1 Compressor I/O Board Mounting Instructions

1. Tilt the I/O Board as shown in "Figure 4-5 Compressor I/O Board Installation" in order to engage

it into the DIN Rail.

2. Lower the I/O Board until it snaps into place.

Figure 4-5 Compressor I/O Board Installation

NOTE

The UL listed enclosure should protect against moisture and other corrosive elements.
