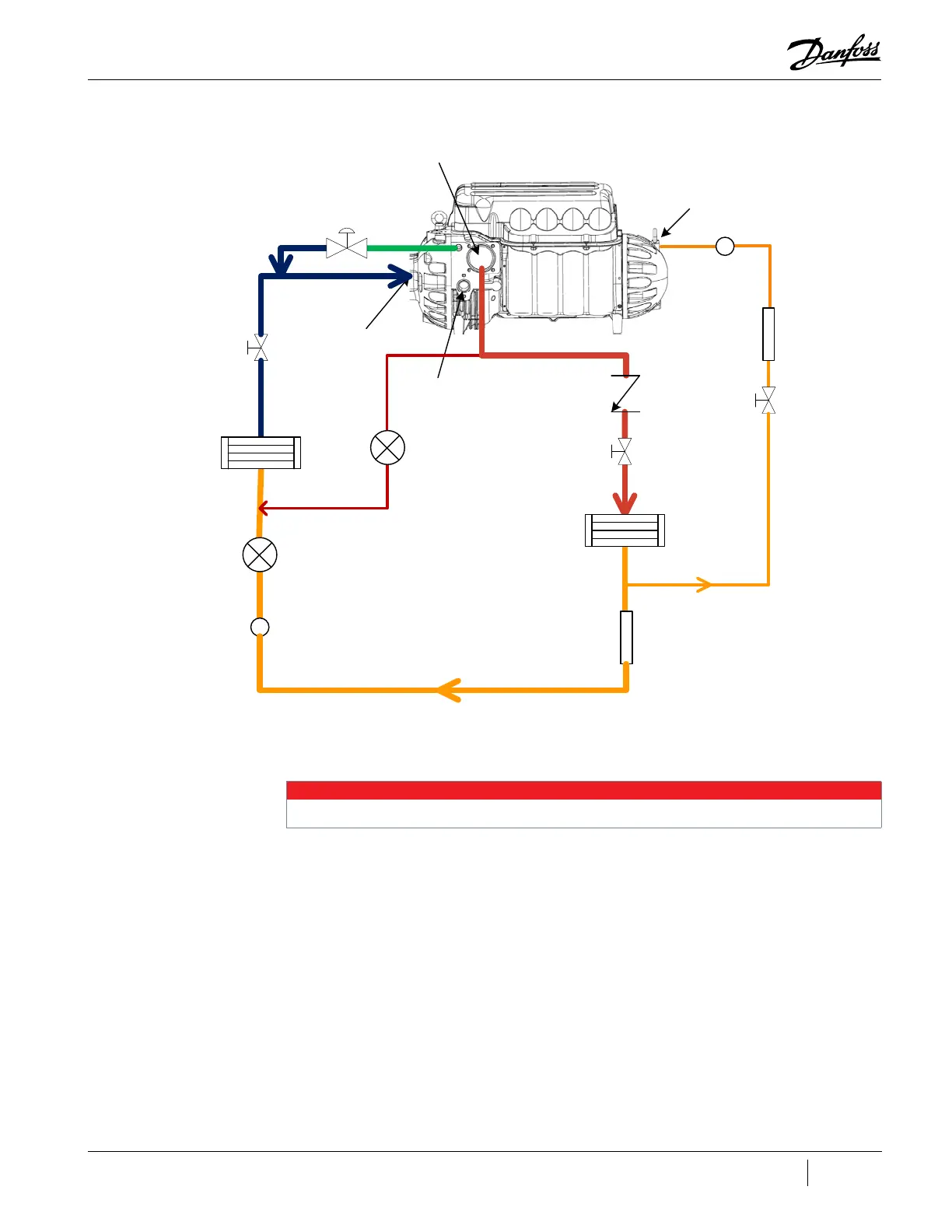

Figure 14-5 Typical Refrigeration Piping Schematic Using Motor-Cooling Pressure Regulating Valve (TTS300/TGS230 Medium

Temperature Compressors Only)



MotorCooling

Port

Suction

Port

Economizer

Port

DischargePort



Sight

Glass

Filter/

Drier



Expansion

Valve

Condenserwith

Subcooler

Sight

Glass

Pressure

Regulating

Valve

Filter/

Drier

Evaporator

 

Check

Valve

Staging

Valve

NOTE

*Service valves are optional.
