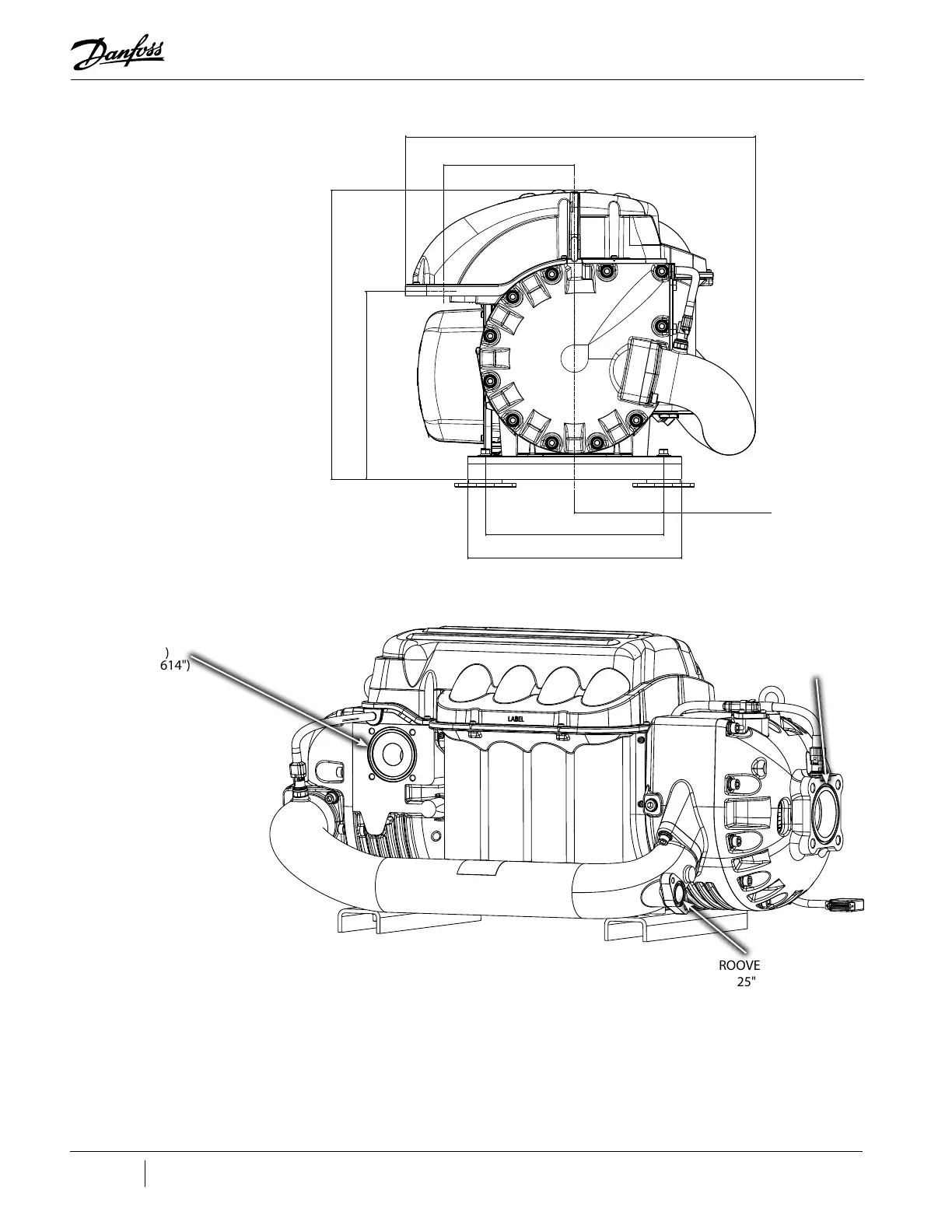

Figure 16-6 TTH/TGH Second Stage Housing View
Figure 16-7 TTH/TGH Discharge Side View
Front view
Scale: 1:1
150(5.9”)
300(11.81”)
360(14.17”)
316.1(12.44”)
487.23(19.18”)
220(8.66”)
589.56(23.21”)
O-RING GROOVE
OD: 88.9 (3.499")
WIDTH: 4.1 (0.1614")
ID: 80.7 (3.177")
O-RING GROOVE
OD: 41.3 (1.625")
WIDTH: 4.1 (0.1614")
ID: 33.1 (1.30")
O-RING GROOVE
OD: 98.4 (3.87")
ID: 90.2 (3.55")
Width: 4.1 (0.16")
