Chapter 14.0 Sample Refrigeration Circuits

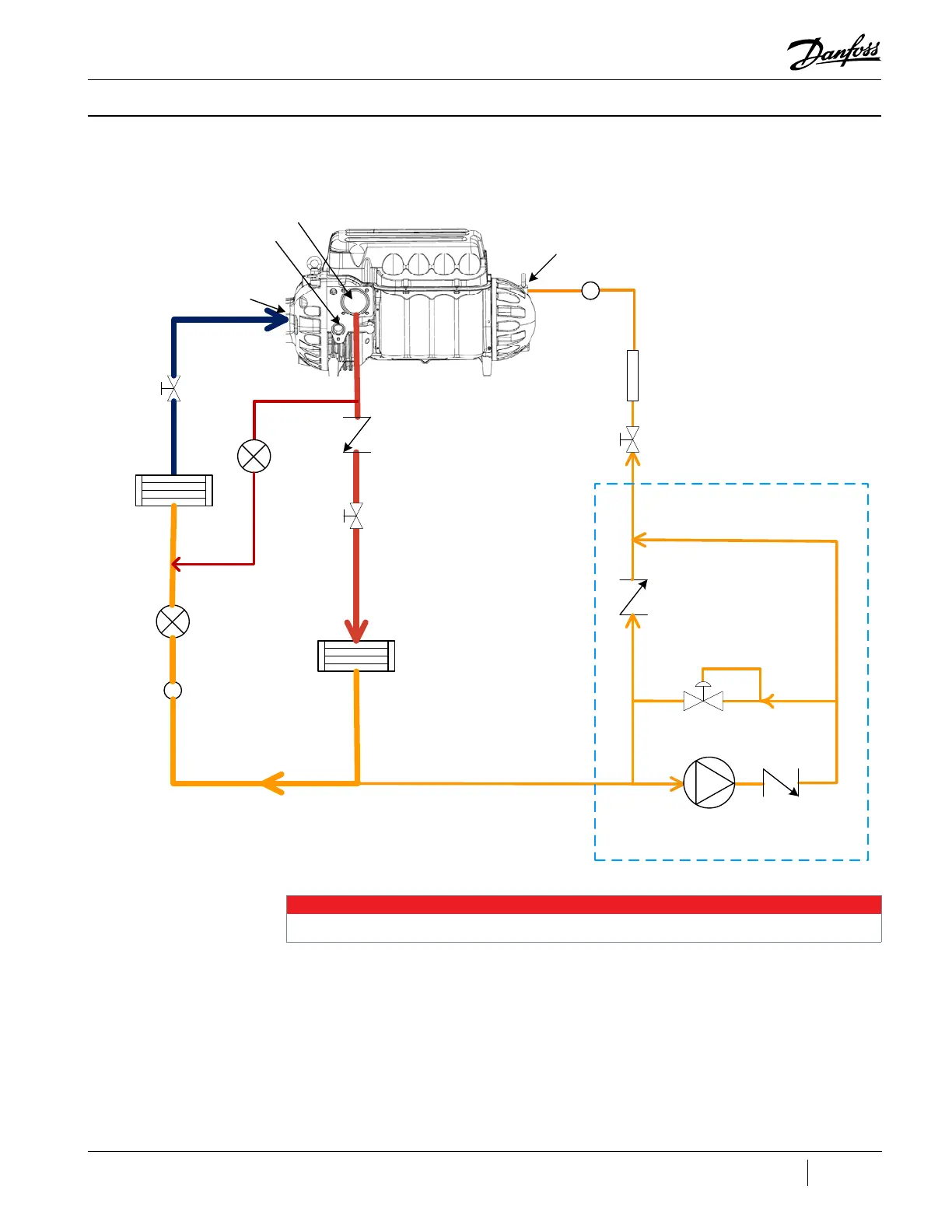

Figure 14-1 Typical Refrigeration Piping Schematic



Condenserwith

Subcooler



Evaporator

SightGlass



Check

Valve

Expansion

Valve

MotorCooling

Port

Suction

Port

Economizer

Port

DischargePort



Sight

Glass

Filter/

Drier



Check

Valve

Refrigerant

Pump

PressureRegulating

Valve

Check

Valve

Optionalconfigurationfor

LowLiftoperation

(CC4.1&later)

Staging

Valve

NOTE

*Service valves are optional.
