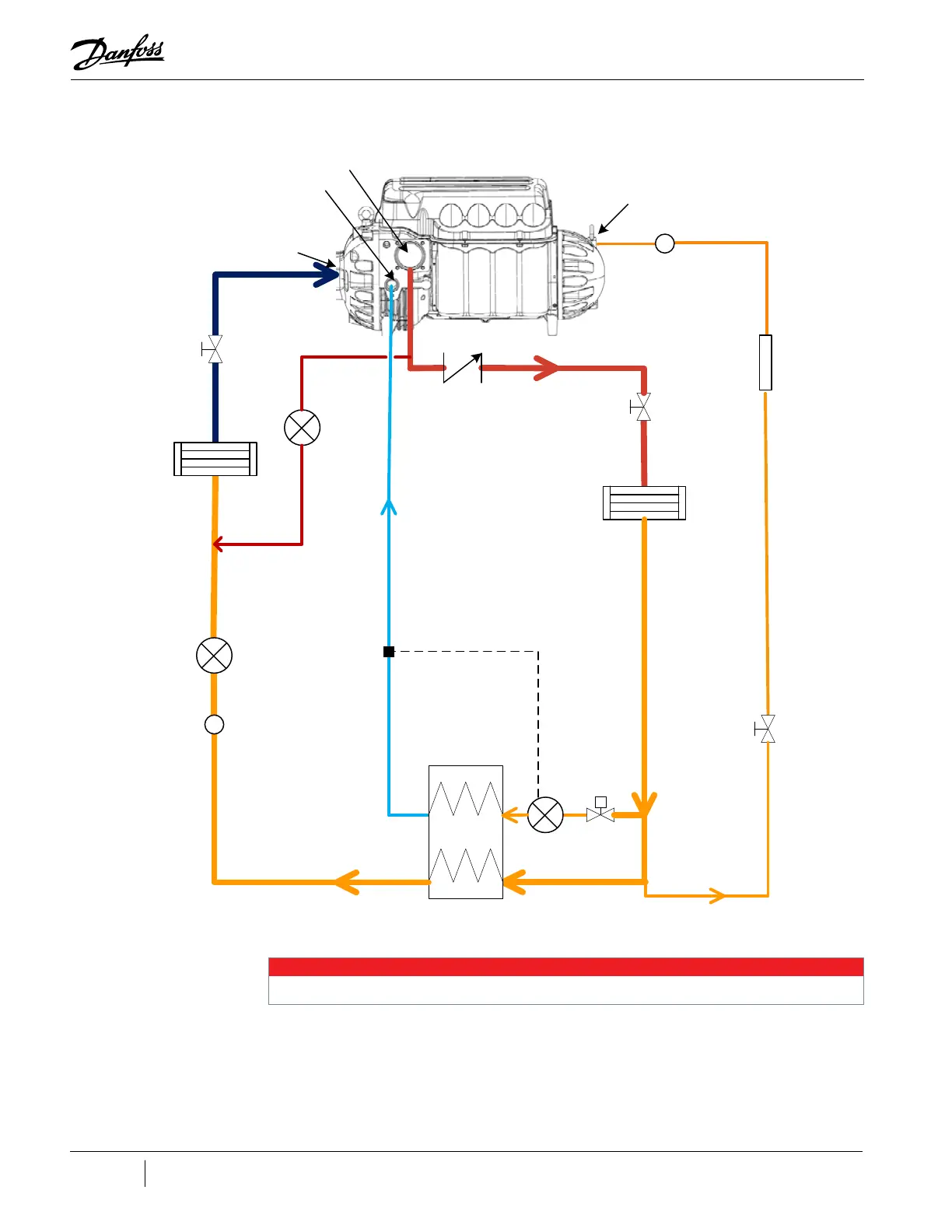

Figure 14-4 Typical Refrigeration Piping Schematic With Closed Type Economizer






MotorCooling
Port
Suction
Port
Economizer
Port
DischargePort
*
Sight
Glass
Filter/
Drier
Evaporator

*
Sight
Glass

*
Expansion
Valve

Condenserwith
Subcooler

S
Solenoid
Valve
Expansion
Valve
Check
Valve
Staging
Valve
NOTE
*Service valves are optional.
