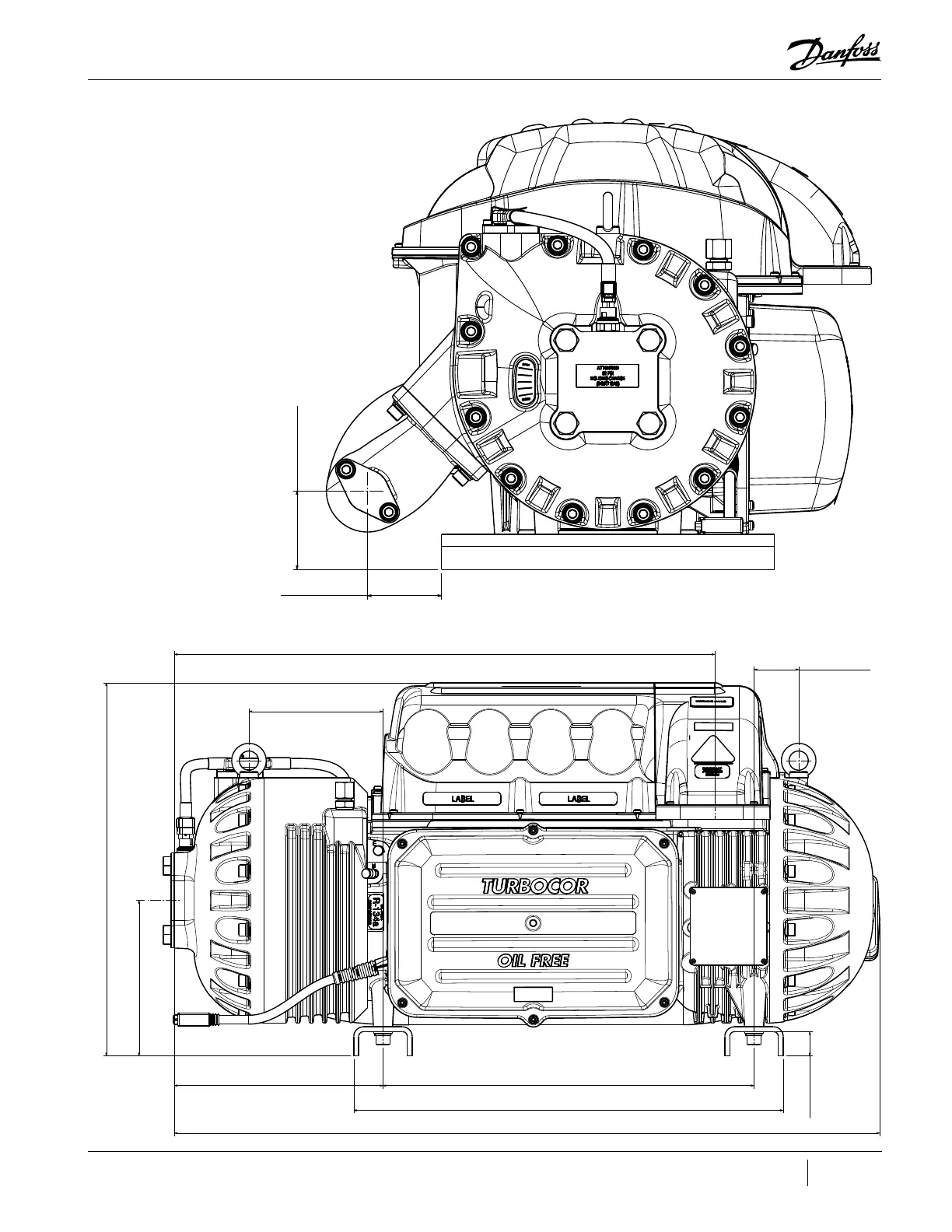

Figure 16-4 TTH/TGH Suction Side View

Figure 16-5 TTH/TGH Service Side View

Front view

Scale: 1:2

79.996 (3.15")

85.096 (3.35")

705.5 (27.78")

487.23 (19.18")

484.35 (19.07")

560.55 (22.07")

272.49 (10.73")

203.1 ( 8")

31.75 (1.25")

58.26 (2.29")

174.99 (6.89")

920.75 (36.25")
