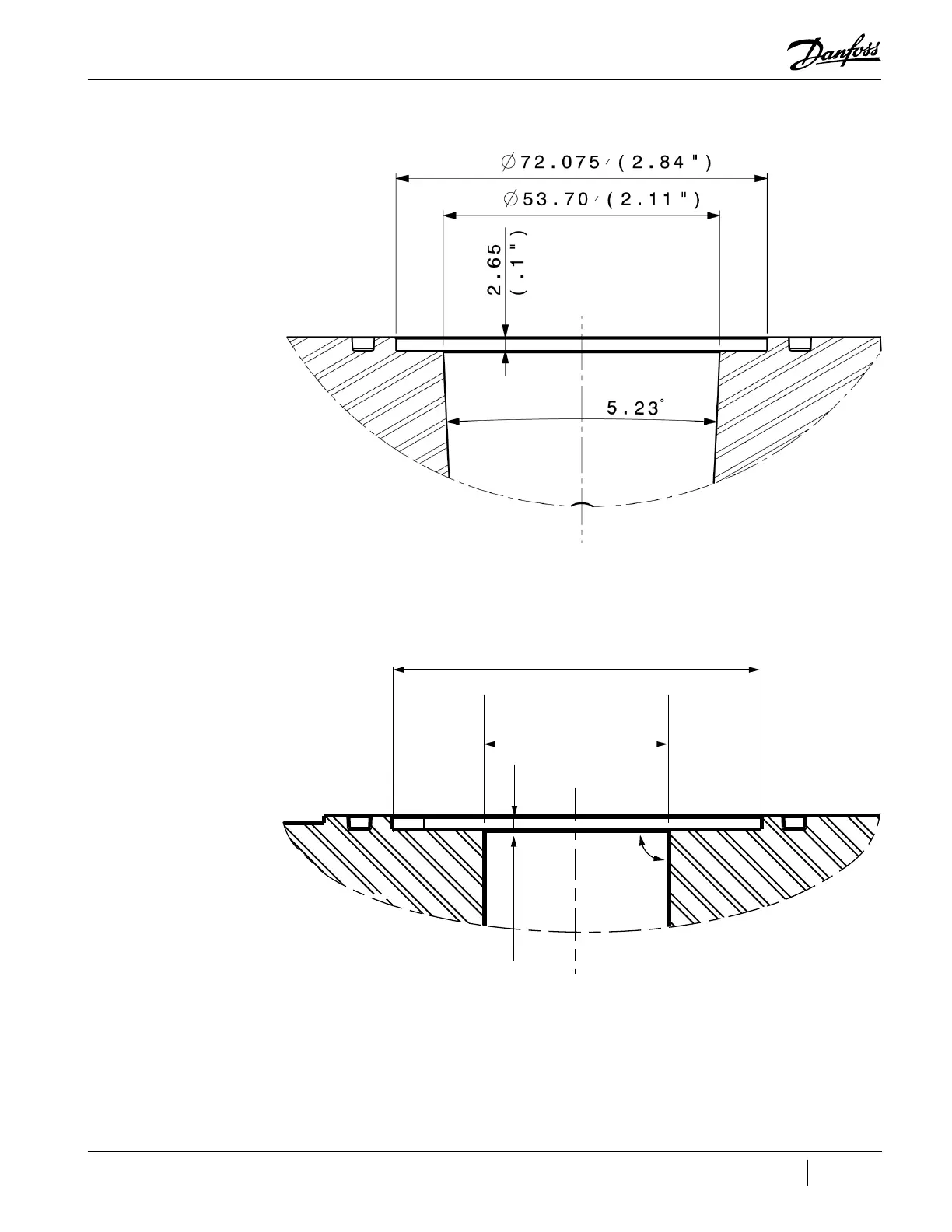

Figure 16-15 Discharge Port Detail (TTS700, TGS490, and TGS520)

Figure 16-16 Discharge Port Detail (TTH375 and TGH285)

Gas Flow

ø72.075 (2.84”)

ø36 1.41”)

2.65 (.1”)

90°
