1.7 Connection Examples
More examples can be found in the Operating Instructions (MG.27.AX.YY).

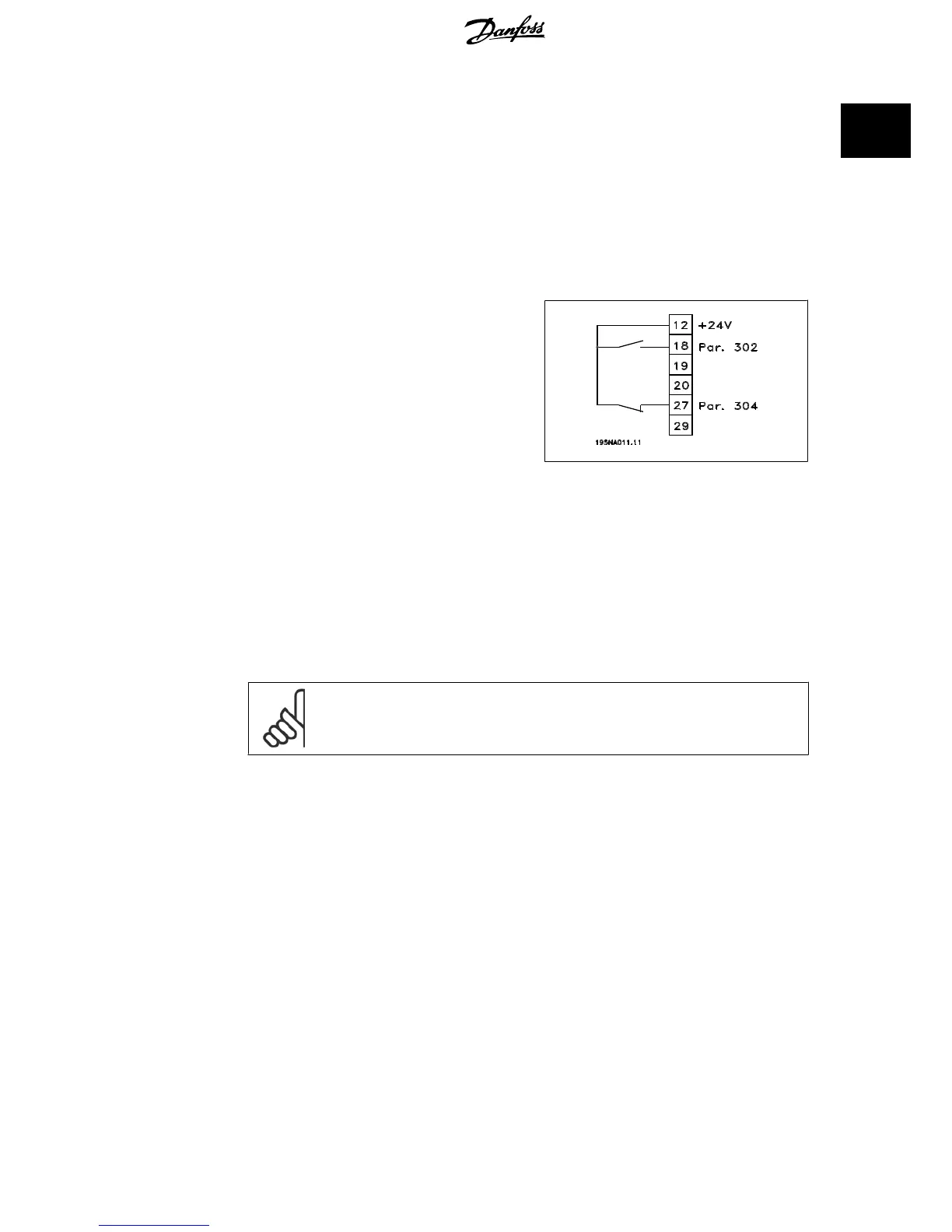

1.7.1 Start/Stop
Start/stop using terminal 18 and coasting stop using terminal 27.
Par. 302
Digital input
=
Start
[7]
Par. 304
Digital input
=
Coasting
stop inverted
[2]
For Precise start/stop the following settings
are made:
Par. 302
Digital input
=
Precise start/
stop
[27]
Par. 304
Digital input
=
Coasting
stop inverted
[2]
1.8 Parameter List
All parameters are listed in the following. For information on conversion index, data type and
further descriptions, please see Operating Instructions (MG.27.AX.YY) or Design Guide (MG.
27.EX.YY).
For external communication, please see dedicated literature (see section
Available Literature
).
NB!
Use MCT-10 and USB to RS485 converter to change parameters.
VLT 2800 Quick Guide 1 Quick Guide
MG.28.M1.02 - VLT
®
is a registered Danfoss trademark
21
