Danfoss VLT 2800 Quick Guide

1.3.2 Terminal cover

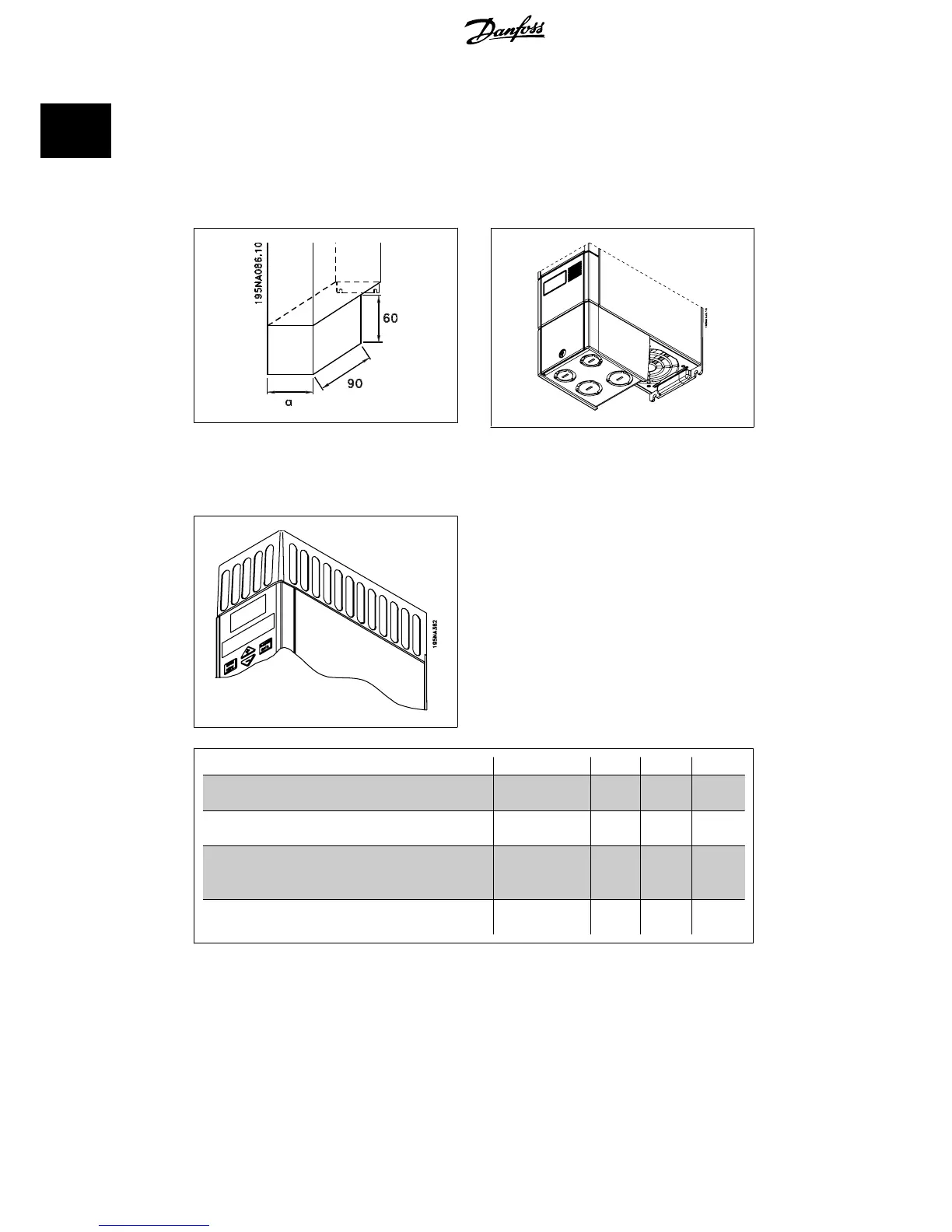

The drawing below gives the dimensions for NEMA 1 terminal covers for VLT 2803-2875.
Dimension 'a' depends on the unit type.
1.3.3 IP 21 solution
Type Code number A B C
VLT 2803-2815 200-240 V,
VLT 2805-2815 380-480 V
195N2118 47 80 170
VLT 2822 200-240 V,
VLT 2822-2840 380-480 V
195N2119 47 95 170
VLT 2840 200-240 V,
VLT 2822 PD2, TR1 2855-2875
380-480 V
195N2120 47 145 170
TR1 2880-2882 380-480 V,
VLT 2840 PD2
195N2126 47 205 245
Table 1.2: Dimensions
1 Quick Guide VLT 2800 Quick Guide
6 MG.28.M1.02 - VLT
®
is a registered Danfoss trademark
1
