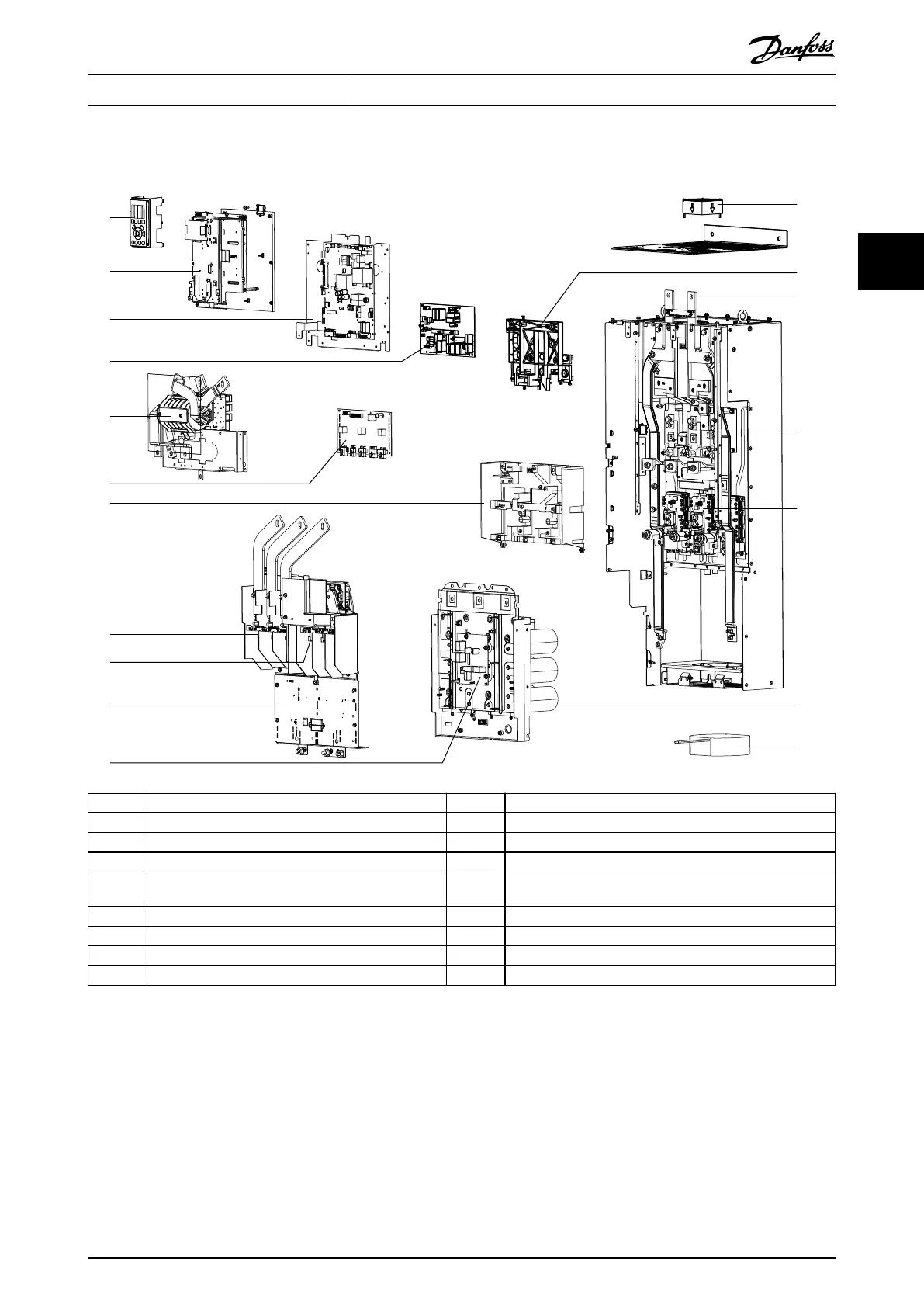

3.6.2 Exploded View of D2h/D4h/D7h/D8h/J9 Drive
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1 Local control panel and LCP cradle 10 Power terminal mounting plate
2 Control card and mounting plate 11 Balance/high frequency card
3 Power card and mounting plate 12 Top fan (IP20 only)
4 Inrush card 13 Inrush card bracket
5 RFI lter (optional) 14 Regen/load share terminals (optional)
6 Gate drive card 15 SCR/diode modules
7 Gate drive card support bracket 16 IGBT modules
8 Mains input terminals 17 Capacitor bank
9 Motor terminals 18 Heat sink fan
Illustration 3.3 Exploded View D4h Drive (D2h/D7h/D8h/J9 Drives are similar).
Product Overview Service Guide
MG94A502 Danfoss A/S © 02/2019 All rights reserved. 23
3 3
