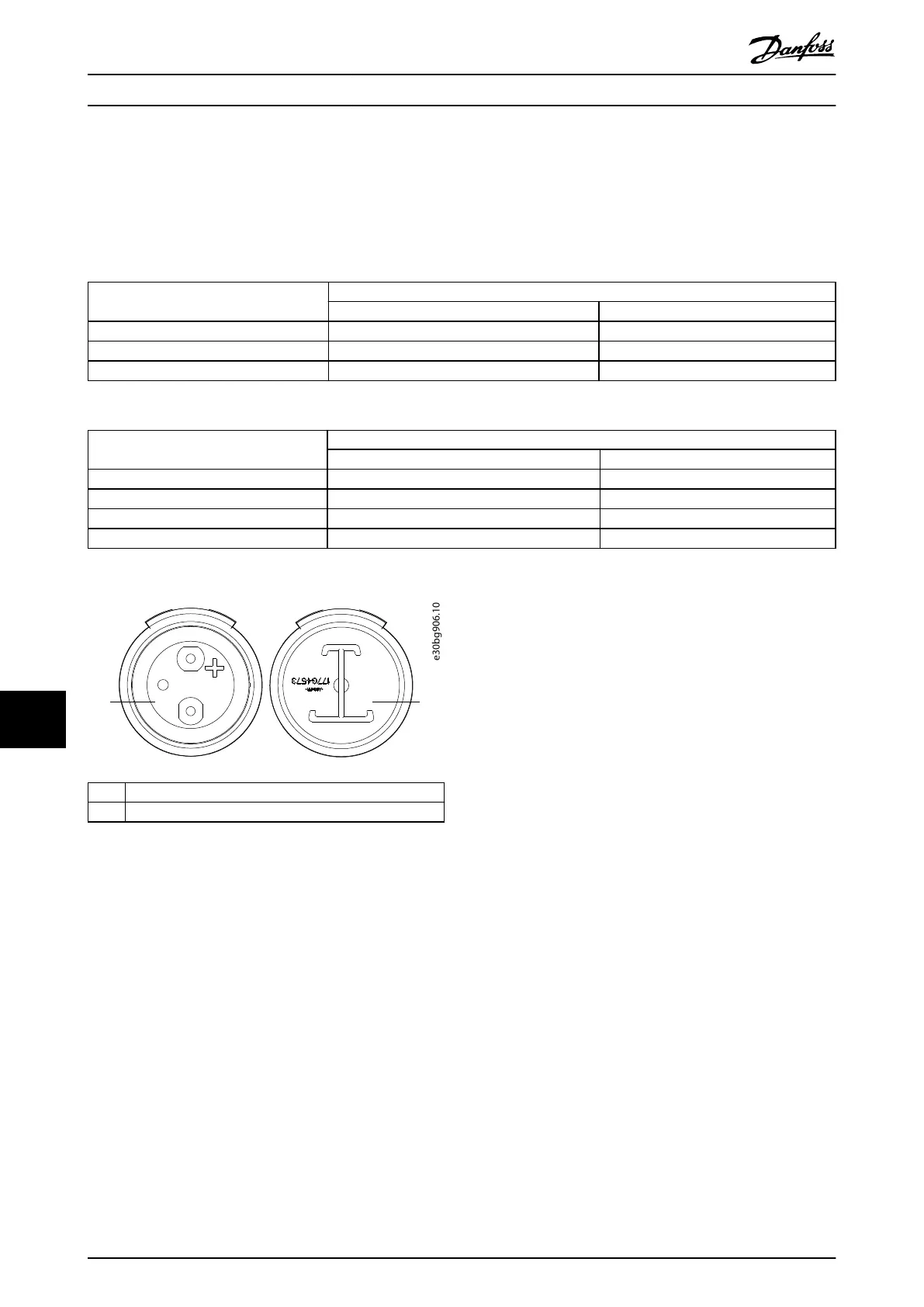

11.2.21 Standard DC Capacitor Bank Layouts
Standard DC capacitor banks dier in the number of capacitors present and the location of fasteners, such as screws and
standos. The drive size and power rating determine the layout of the capacitor bank. Use Table 11.3 and Table 11.4 to nd
the capacitor bank layout for a particular drive in D2h/D4h/D7h/D8h/J9 sizes. Each illustration includes a table that lists
which fasteners are screws or standos, and which DC bus plate or midplate they secure.
Graphic reference Model
FC 102, FC 103, and FC 202 FC 302
Illustration 11.17 N200 N160
Illustration 11.18 N250 N200
Illustration 11.19 N315 N250
Table 11.3 Standard DC Capacitor Bank Layout 380–480/500 V
Graphic reference Model
FC 102, FC 103, and FC 202 FC 302
Illustration 11.20 N200 N160
Illustration 11.20 N250 N200
Illustration 11.21 N315 N250
Illustration 11.21 N400 N315
Table 11.4 Standard DC Capacitor Bank Layout 525–690 V
e30bg906.10
1
2
1 Standard DC capacitor
2 Plug
Illustration 11.16 Standard DC Capacitor and Plug
D2h/D4h/D7h/D8h/J9 Unit Dis...
VLT
®
FC Series, D1h–D8h, Da2/Db2/Da4/Db4, E1h–E4h, J8/J9
220 Danfoss A/S © 02/2019 All rights reserved. MG94A502
