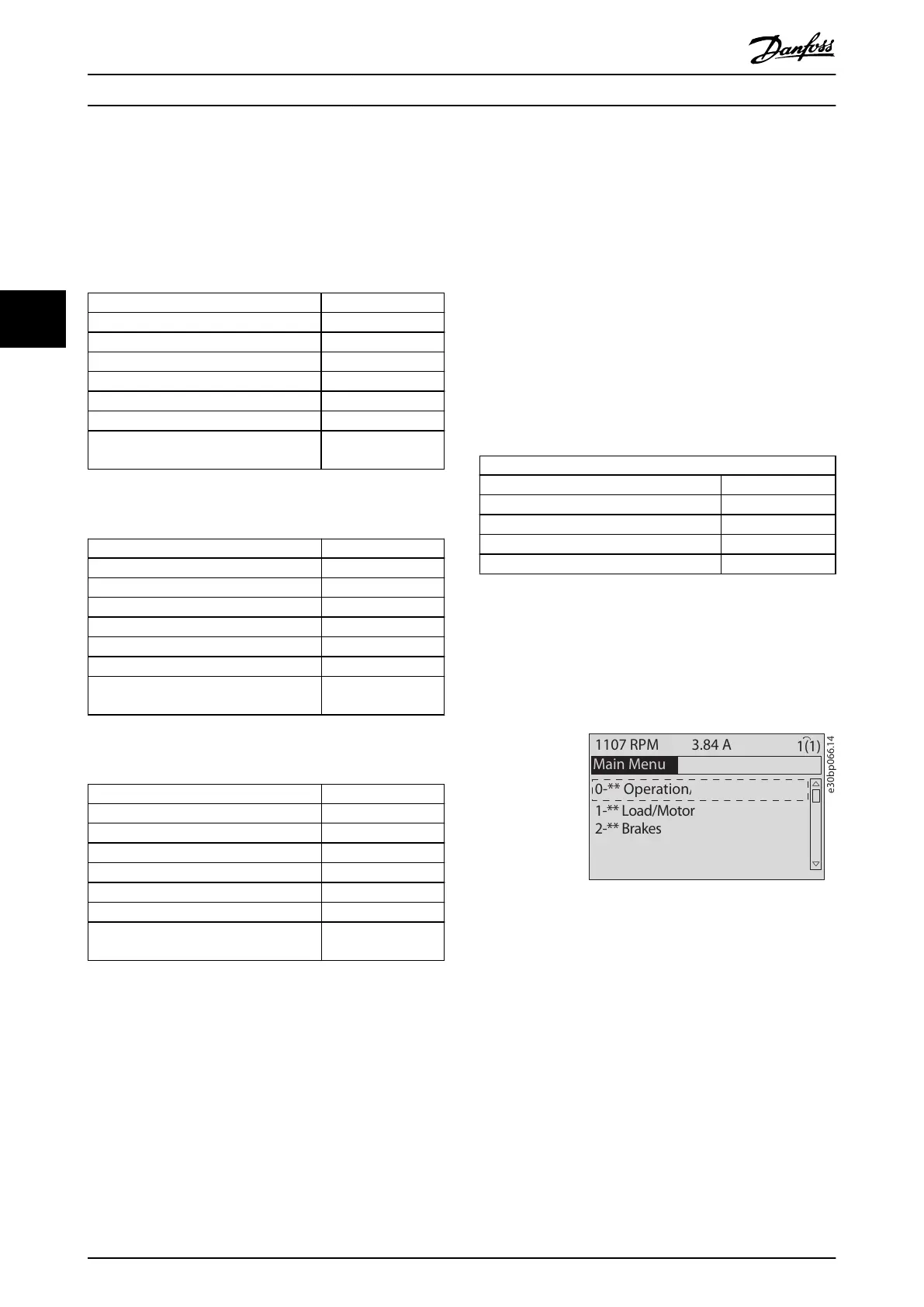

4.2.2.2 Q1 My Personal Menu
My Personal Menu is used to dene the LCP display (refer
to chapter 4.2.1 Layout) and store pre-selected parameters.
Store important set-up values by using up to 20 pre-
programmed parameters. These parameters are selected in
parameter 0-25 My Personal Menu.
Parameter Default setting
Parameter 0-01 Language English
Parameter 0-20 Display Line 1.1 Small Reference %
Parameter 0-21 Display Line 1.2 Small Motor current
Parameter 0-22 Display Line 1.3 Small Power [kW]
Parameter 0-23 Display Line 2 Large Frequency
Parameter 0-24 Display Line 3 Large kWh counter
Parameter 15-51 Frequency Converter Serial
Number
Table 4.6 Q1 My Personal Menu Settings for
VLT
®
HVAC Drive FC 102
Parameter Default setting
Parameter 0-01 Language English
Parameter 0-20 Display Line 1.1 Small Reference [Unit]
Parameter 0-21 Display Line 1.2 Small Analog input 53
Parameter 0-22 Display Line 1.3 Small Motor current
Parameter 0-23 Display Line 2 Large Frequency
Parameter 0-24 Display Line 3 Large Feedback [Unit]
Parameter 15-51 Frequency Converter Serial
Number
Table 4.7 Q1 My Personal Menu Settings for
VLT
®
AQUA Drive FC 202
Parameter Default setting
Parameter 0-01 Language English
Parameter 0-20 Display Line 1.1 Small Speed [RPM]
Parameter 0-21 Display Line 1.2 Small Motor current
Parameter 0-22 Display Line 1.3 Small Power [kW]
Parameter 0-23 Display Line 2 Large Frequency
Parameter 0-24 Display Line 3 Large Reference %
Parameter 15-51 Frequency Converter Serial
Number
Table 4.8 Q1 My Personal Menu Settings for
VLT
®
AutomationDrive FC 302
4.2.2.3 Q2 Quick Set-up
The parameters in Q2 Quick Set-up are the basic
parameters that are always necessary for set-up. This menu
provides the most ecient set-up for most applications.
Perform the unit set-up in the order listed. Refer to the
programming guide for the set-up steps.
4.2.2.4 Q5 Changes Made
Select Q5 Changes Made for information about:
•
The 10 most recent changes.
•
Changes made from default setting.
4.2.2.5 Q6 Loggings
Use Q6 Loggings for fault nding. To get information about
the display line readout, select Loggings. The information is
shown as graphs. Only show parameters selected in
parameter 0-20 Display Line 1.1 Small to
parameter 0-24 Display Line 3 Large can be viewed. It is
possible to store up to 120 samples in the memory for
later reference.
Q6 Loggings
Parameter 0-20 Display Line 1.1 Small Speed [RPM]
Parameter 0-21 Display Line 1.2 Small Motor Current
Parameter 0-22 Display Line 1.3 Small Power [kW]
Parameter 0-23 Display Line 2 Large Frequency
Parameter 0-24 Display Line 3 Large Reference %
Table 4.9 Loggings Parameter Examples
4.2.2.6 Main Menu Mode
The LCP provides access to the Main Menu mode. Select
the Main Menu mode by pressing the [Main Menu] key.
The resulting readout appears on the LCP display.
e30bp066.14
0-** Operation/Display
1-** Load/Motor
2-** Brakes
1107 RPM 3.84 A
Main Menu
1(1)
3-** References/Ramps
Illustration 4.3 Main Menu View
Lines 2 through 5 on the display show a list of parameter
groups that can be selected via the [
▲
] and [
▼
] keys.
All parameters can be changed in the main menu. Option
cards added to the unit enable extra parameters associated
with the option device.
Operator Interface and Driv...
VLT
®
FC Series, D1h–D8h, Da2/Db2/Da4/Db4, E1h–E4h, J8/J9
32 Danfoss A/S © 02/2019 All rights reserved. MG94A502
