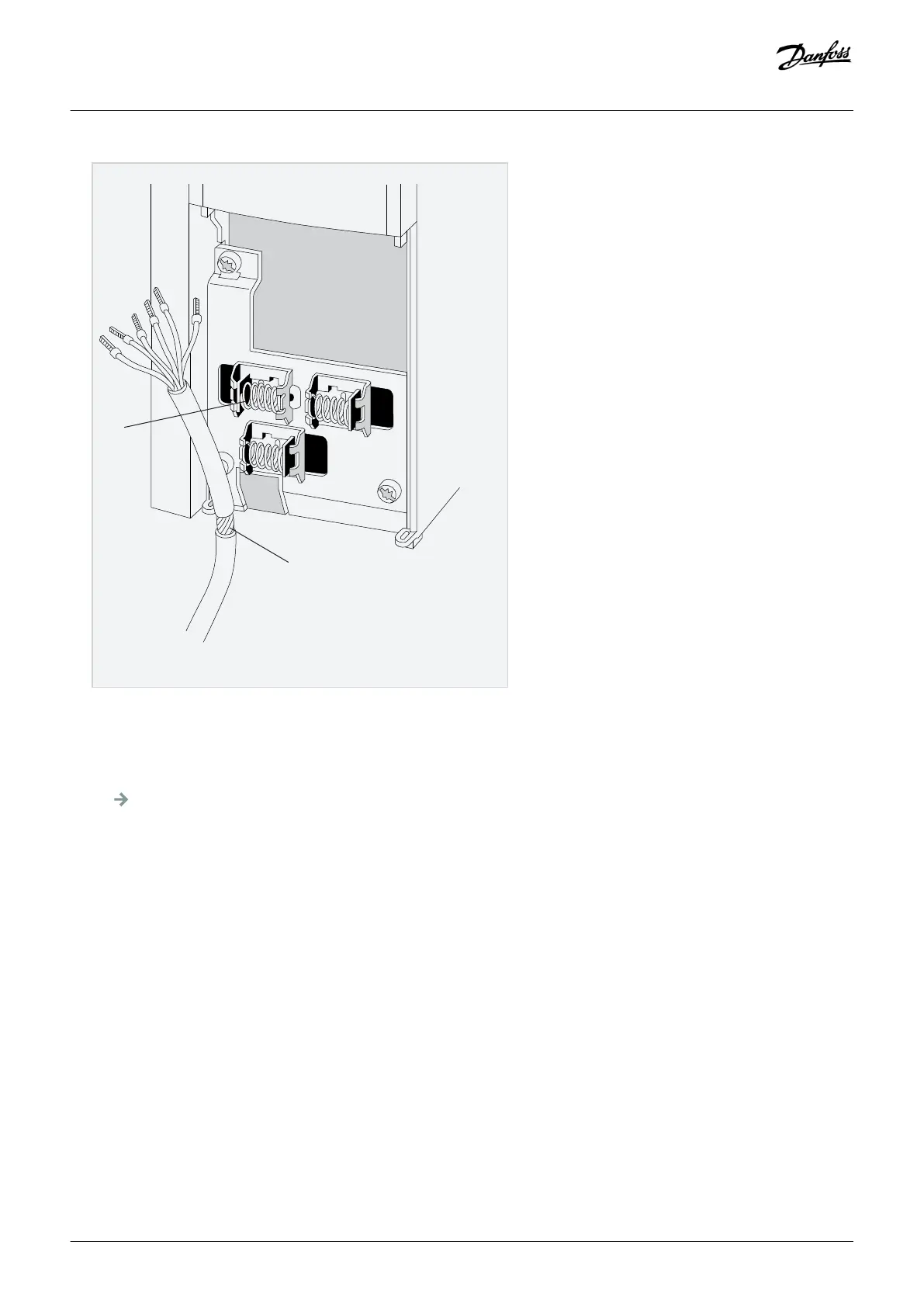

Illustration 15: Connecting the Shielded Wire, Example Showing FC 302
4. Remove the knock-out in the extended LCP frame so that the option fits under the frame.
5. Fit the extended LCP frame and terminal cover.
6. Fit the LCP or blind cover in the extended LCP frame.
7. Connect power to the drive.
At the 1
st
power-up, the safety option is in blank initial state, and all safety parameters are at their default values.
4.4.4 Installation Checklist
Before completing installation of the unit, inspect the entire installation as described in:
• VLT® AutomationDrive FC 301/FC 302 Operating Guide
• VLT® Decentral Drive FCD 302 Operating Guide.
Installation
Installation Guide | VLT®Safety Option MCB 152
AN327351953089en-000101 / 130R0578
26 | Danfoss A/S © 2020.02
