Danfoss VLT AutomationDrive FC 302 Operating Instructions

130BB017.10
1
2
3
4
5
6
7
8
9
10

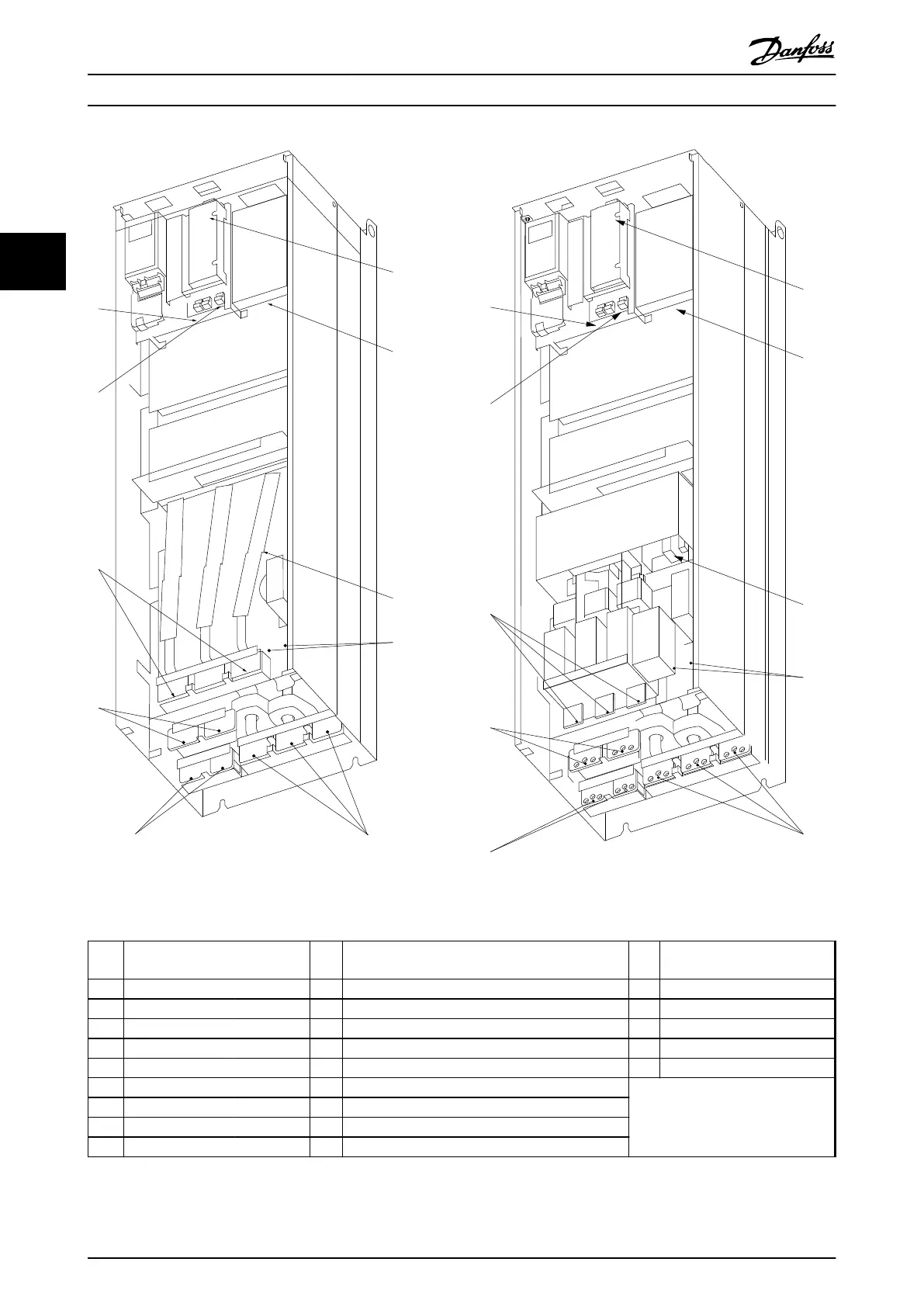

Illustration 3.52 Compact IP00 (Chassis), Enclosure Type D3
1
2
3
4
5
6
7
8
9
10
130BB018.10
FASTEMER TORQUE: M10 19 NM (14 FT-LB)
FASTEMER TORQUE: M8 9.6 NM (7 FT-LB)
R/L1 91
-DC 88
+DC 89
FASTEMER TORQUE: M8 9.6 NM (7 FT-LB)
FASTEMER TORQUE: M10 19 NM (14 FT-LB)
R 81
+DR 82
U/T1 96
V/T2 97
W/T3 98
S/L2 92
T/L3 93
Illustration 3.53 Compact IP00 (Chassis) with Disconnect, Fuse
and RFI Filter, Enclosure Type D4
1)
AUX Relay 4) Load sharing 8) Fan Fuse (see fuse tables for
part number)
01 02 03 -DC +DC 9) Mains ground
04 05 06 88 89 10) Motor
2) Temp Switch 5) Brake U V W
106 104 105 -R +R 96 97 98
3) Mains 81 82 T1 T2 T3
R S T 6) SMPS Fuse (see fuse tables for part number)
91 92 93 7) AUX Fan
L1 L2 L3 100 101 102 103
L1 L2 L1 L2
Table 3.16 Legend to Illustration 3.52 and Illustration 3.53
How to Install
VLT
®
Automation Drive FC 300 Operating Instructions
46 MG33U402 - Rev. 2013-12-16
