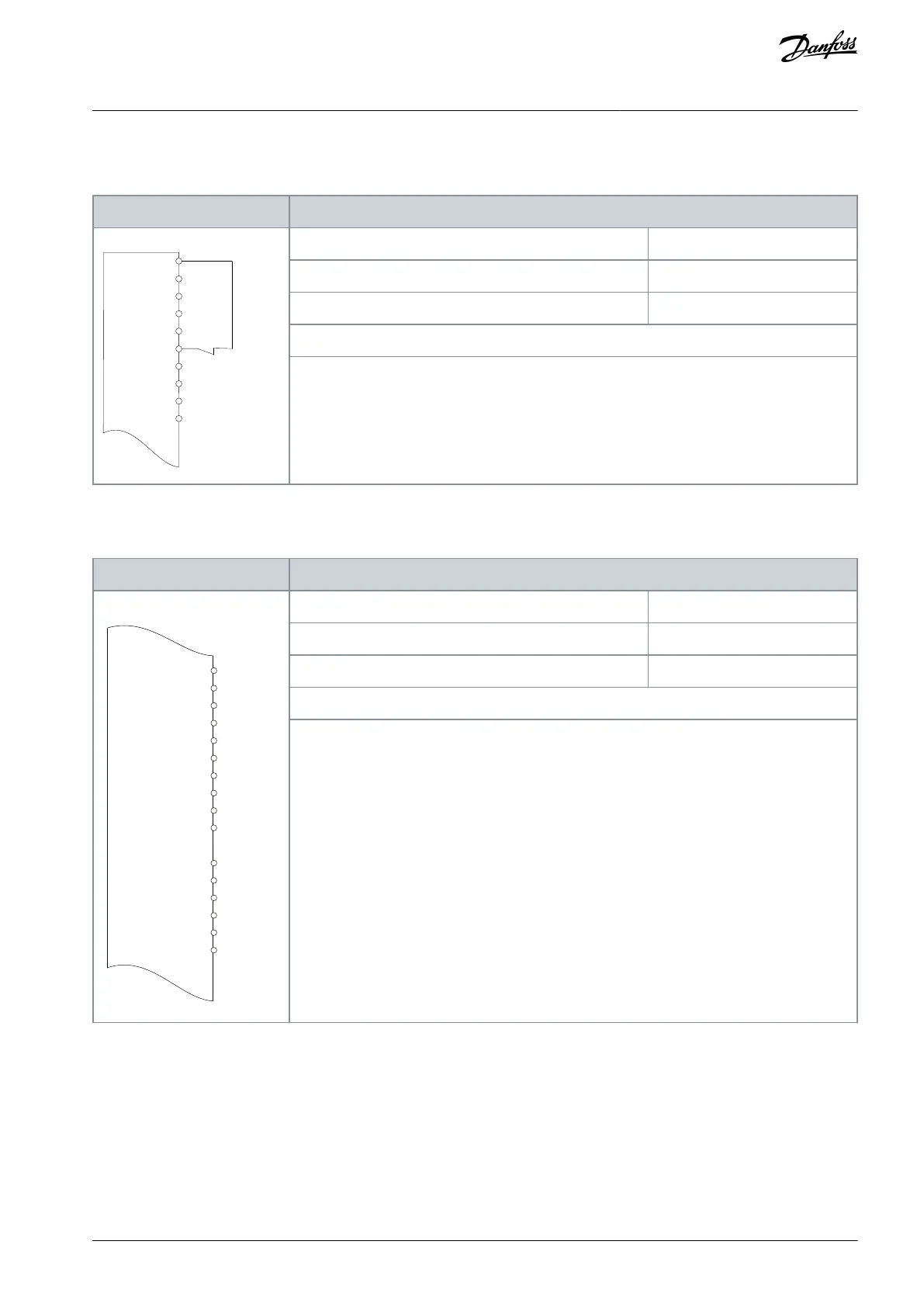

8.1.2 Wiring Configuration for Automatic Motor Adaptation (AMA)
Table 74: Wiring Configuration for AMA with T27 Connected
Parameters
+24 V
+24 V
D IN
D IN
D IN
COM
D IN
D IN
D IN
D IN
e30bu099.10
XD2.10
XD2.11
XD2.12
XD2.13
XD2.18
XD2.14
XD2.15
XD2.16
XD2.17
XD2.19
Function
Setting
Parameter 1-29 Automatic Motor Adaptation (AMA)
[1] Enable complete AMA
Parameter 5-12 Terminal 27 Digital Input
[2]* Coast inverse
*=Default value
Notes/comments:
Set parameter group 1-2* Motor Data according to motor nameplate.
Terminal 27 in the parameter title corresponds to terminal XD2.14 in the control compartment.
8.1.3 Wiring Configuration for Automatic Motor Adaptation (AMA) without T27
Table 75: Wiring Configuration for AMA without T27 Connected
Parameters
+24 V
+24 V
D IN
D IN
D IN
COM
D IN
D IN
D IN
D IN
+10
V
A IN
A IN
COM
A OUT
COM
XD2.10
XD2.11
XD2.12
XD2.13
XD2.18
XD2.14
XD2.15
XD2.16
XD2.17
XD2.19
XD2.6
XD2.7
XD2.8
XD2.9
XD2.5
XD2.4
e30bu091.10
Function
Setting
Parameter 1-29 Automatic Motor Adaptation (AMA)
[1] Enable complete AMA
Parameter 5-12 Terminal 27 Digital Input
[0] No operation
*=Default value
Notes/comments:
Set parameter group 1-2* Motor Data according to motor nameplate.
Terminal 27 in the parameter title corresponds to terminal XD2.14 in the control compartment.
AQ262139143212en-000301 / 130R0879 | 123Danfoss A/S © 2021.10
Wiring Configuration Examples
VLT® AutomationDrive FC 302
Operating Guide
