7.2.4 Terminal Locations - Frame size E
Terminal Locations - E1
Take the following position of the terminals into consideration when designing the cable access.
176FA278.10
0[0.0]
0[0.0]
600[23.6] 525[20.7] 412[16.2] 300[11.8]
188[7.4]
75[3.0]
B
492[19.4]
323[12.7]
195[7.7]
0[0.0]
155[6.1] 193[7.6]
280[11.0] 371[14.6] 409[16.1]

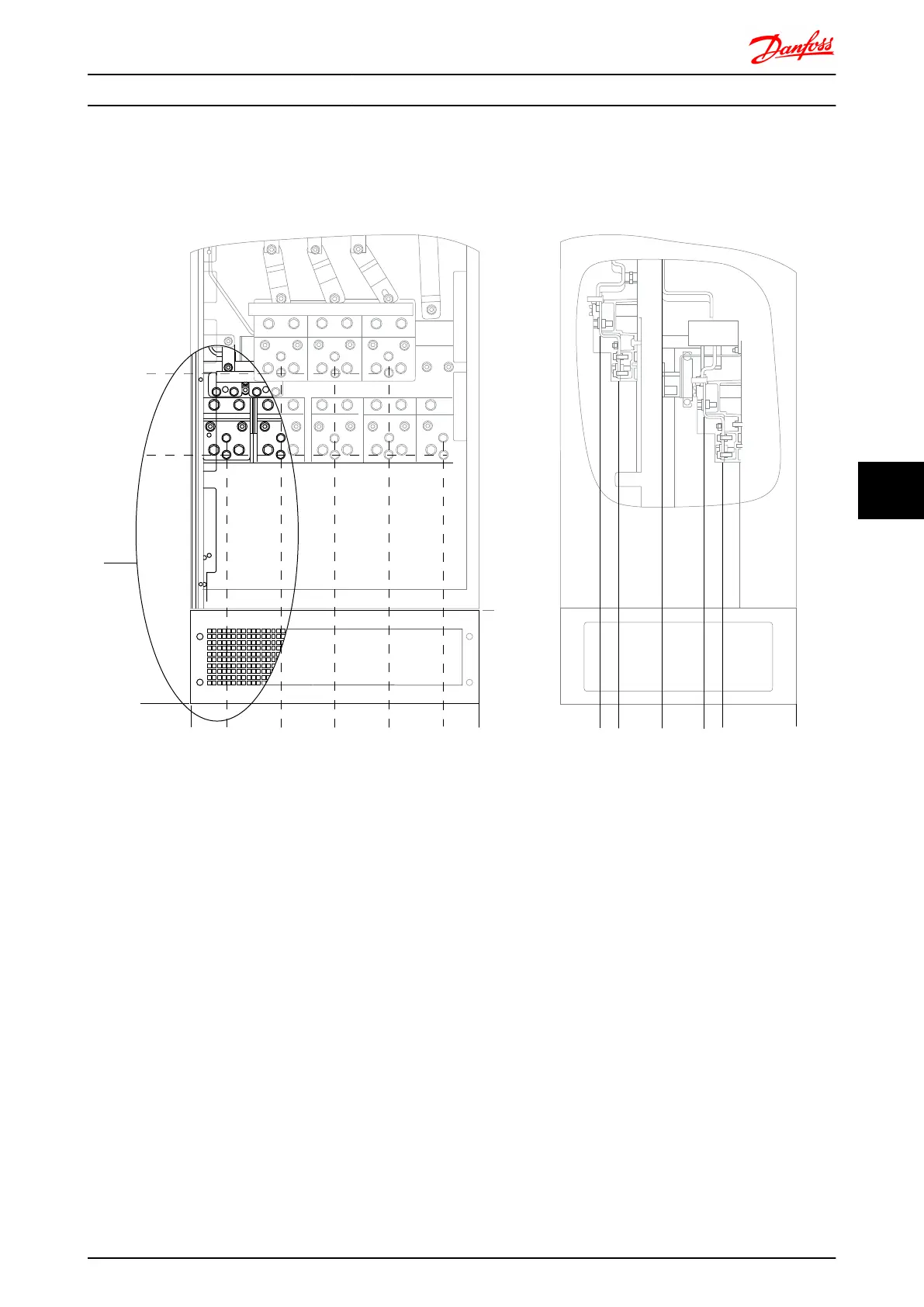

Illustration 7.19 IP21 (NEMA Type 1) and IP54 (NEMA Type 12) enclosure power connection positions
