130BT311.10

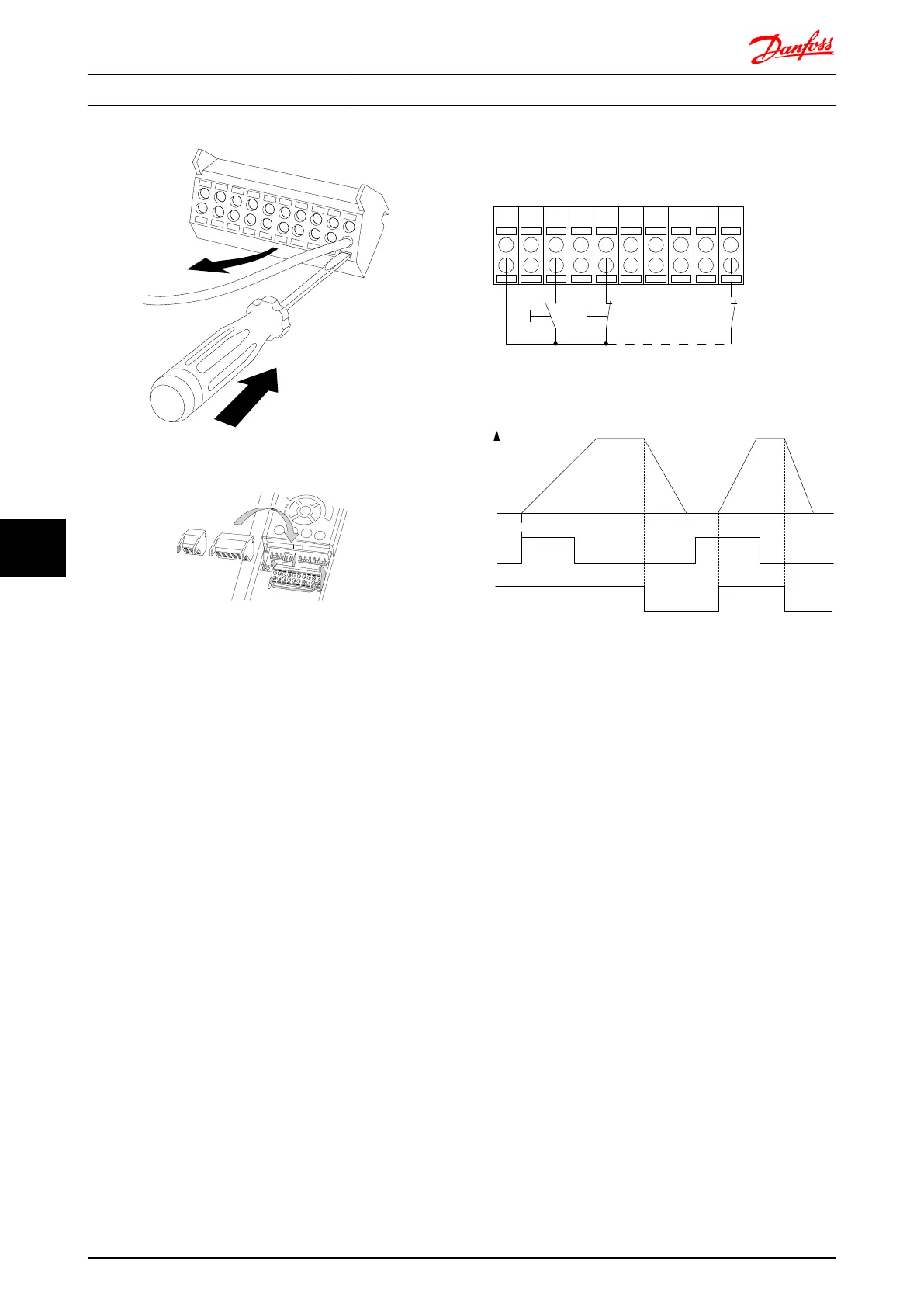

Illustration 8.59 3.
130BT306.10
8.6.6
Basic Wiring Example
1. Mount terminals from the accessory bag to the
front of the frequency converter.
2. Connect terminals 18, 27 and 37 (FC 302 only) to
+24V (terminal 12/13)
Default settings:
18 = Start, 5-10 Terminal 18 Digital Input [9]
27 = Stop inverse, 5-12 Terminal 27 Digital Input [6]
37 = safe stop inverse
12 13 18 37
130BA156.12
322719 29 33 20
P 5 - 12 [6]
P 5 - 10[9]
+24V
Speed
Start Stop inverse Safe Stop
Start (18)
Start (27)
Electrical Installation FC 300 Design Guide
212 MG.33.BD.02 - VLT
®
is a registered Danfoss trademark
88
