FASTENER TORQUE: M8 9.6 Nm [7 FT-LB] FASTENER TORQUE: M10 19 Nm [14 FT-LB]
R/L1 91 S/L2 92 T/L3 93
V/T2 97/T1 96 V/T3 9
19 Nm [14FT-LB]
0[0.0]
144[5.7]
26[1.0]
26[1.0]
391[15.4]
A
176FA279.10

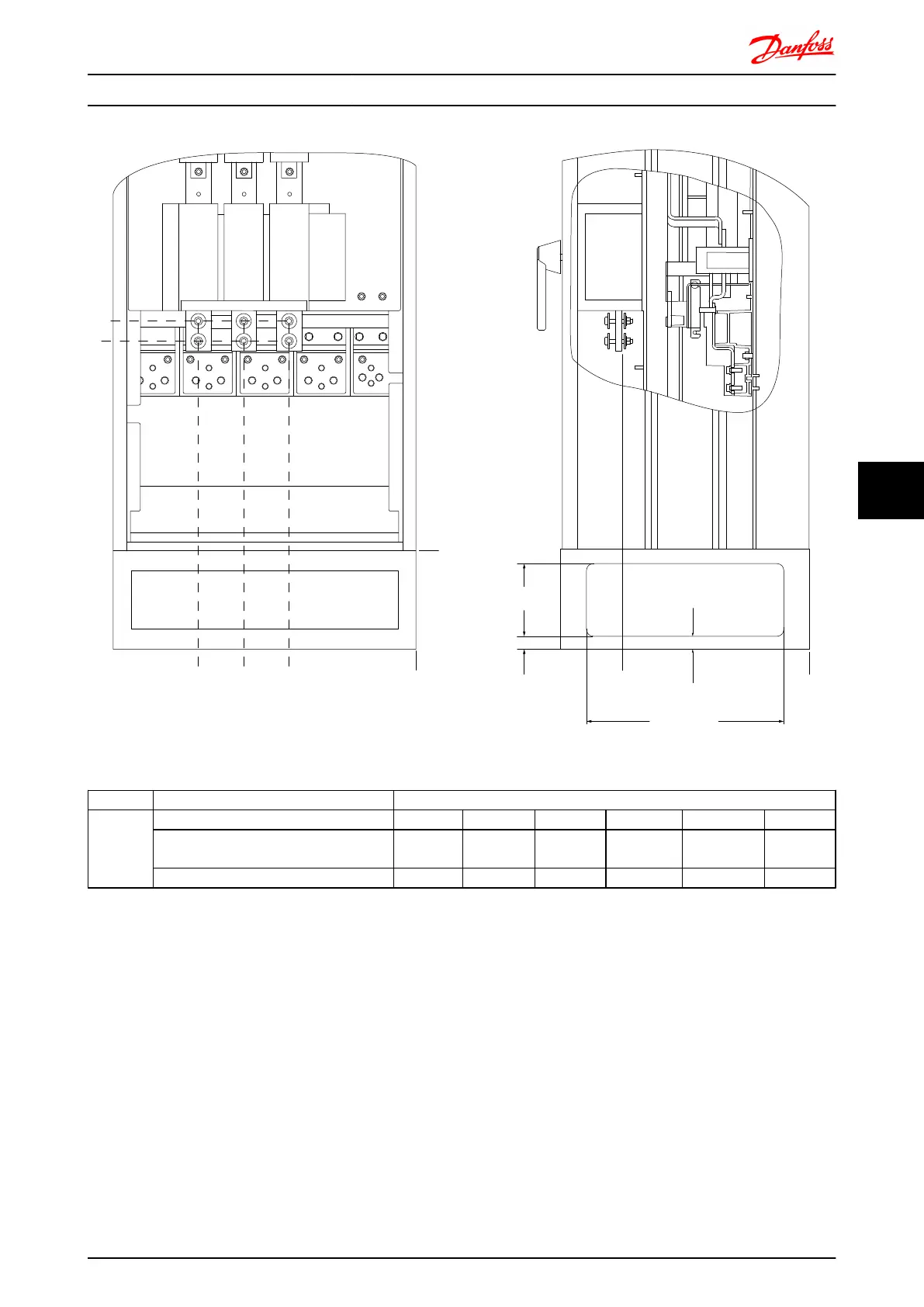

Illustration 7.21 IP21 (NEMA type 1) and IP54 (NEMA type 12) enclosure power connection position of disconnect switch
Frame size
Unit type Dimension for disconnect terminal
E1
IP54/IP21 UL AND NEMA1/NEMA12
250/315 kW (400V) AND 355/450-500/630
KW (690V)
381 (15.0) 253 (9.9) 253 (9.9) 431 (17.0) 562 (22.1) N/A
315/355-400/450 kW (400V) 371 (14.6) 371 (14.6) 341 (13.4) 431 (17.0) 431 (17.0) 455 (17.9)
