Danfoss VLT FC 300

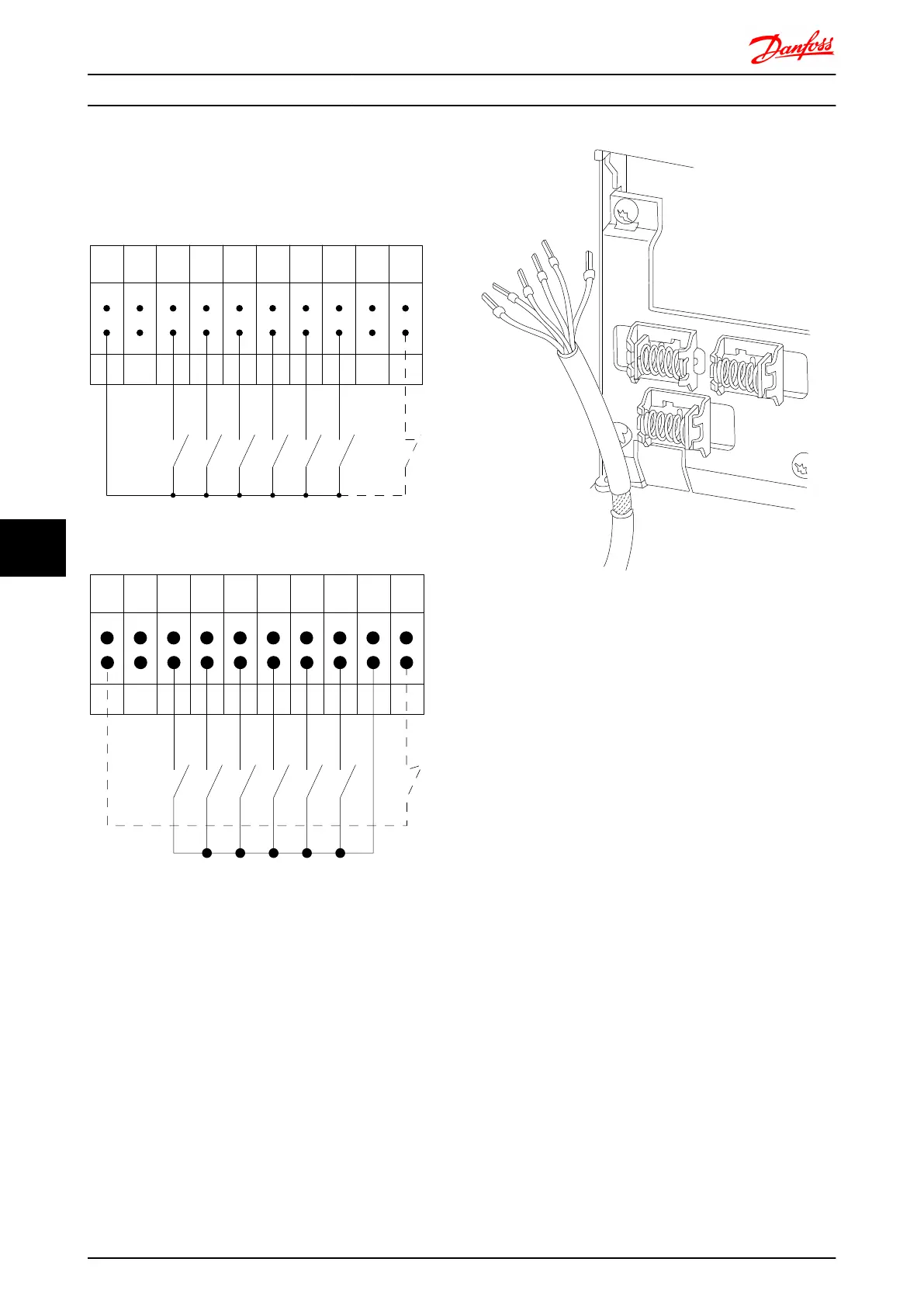

Input polarity of control terminals
12 13 18 19 27 29 32 33 20 37
+24 VDC
0 VDC
130BT106.10
PNP (Source)
Digital input wiring
NPN (Sink)
Digital input wiring
12 13 18 19 27 29 32 33 20 37
+24 VDC
0 VDC
130BT107.11
To comply with EMC emission specifications, screened/
armoured cables are recommended. If an unscreened/
unarmoured cable is used, see section Power and Control
Wiring for Unscreened Cables.. For more information, see
EMC Test Results.
130BA681.10
Electrical Installation FC 300 Design Guide
