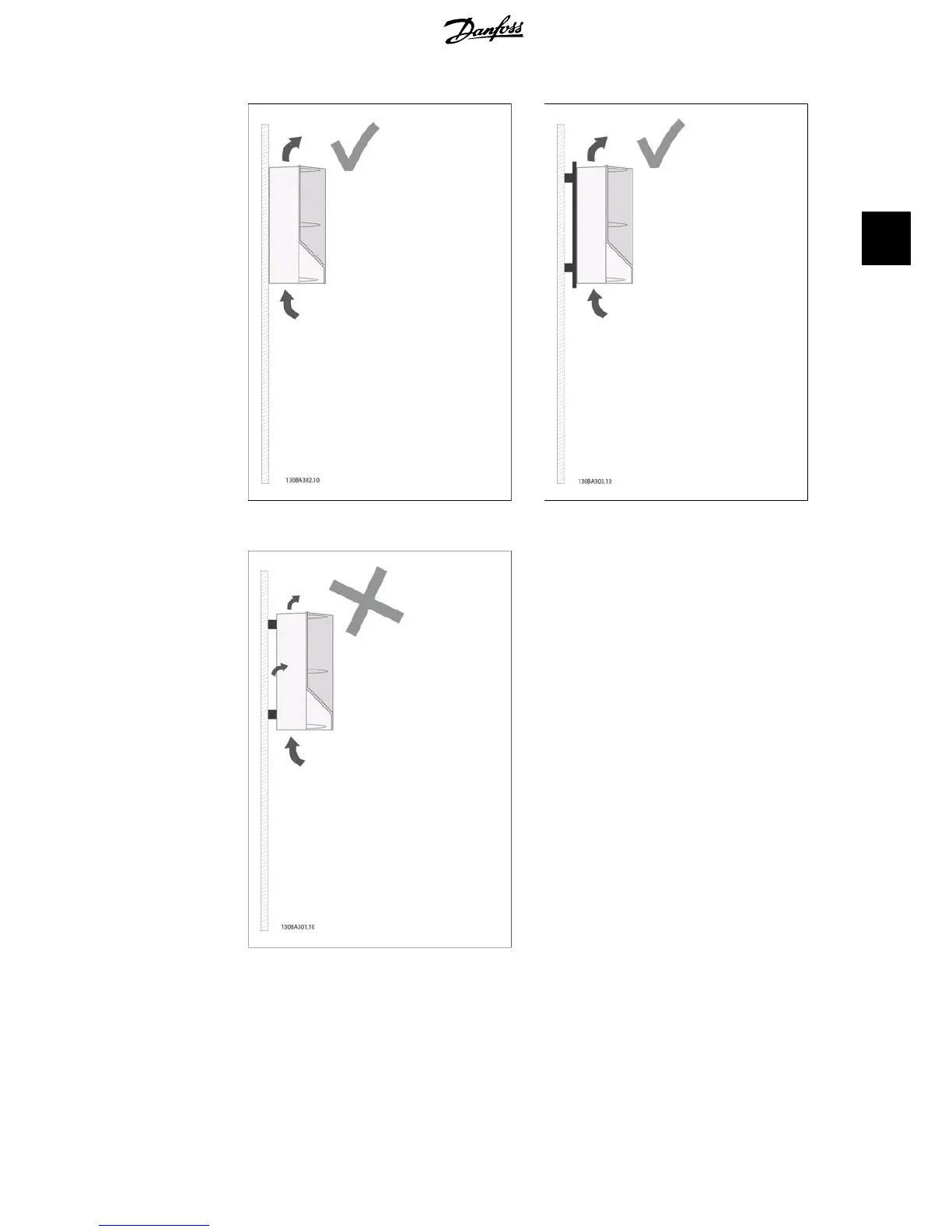

Illustration 3.2: This is the correct way to mount
the unit.
Illustration 3.3: Other than A2 and A3 enclosures
do not mount units as shown without back plate.
Cooling will be insufficient and service life can be
drastically shortened.
Illustration 3.4: If the unit must be mounted a
small distance from the wall please order the back
plate with the unit (see Ordering type code posi-
tion 14-15). A2 and A3 units have back-plate as
standard.
VLT
®
HVAC Drive Operating Instructions 3. Mechanical installation
MG.11.A4.02 - 09.10.06. VLT
®
is a registered Danfoss trademark
15
3
