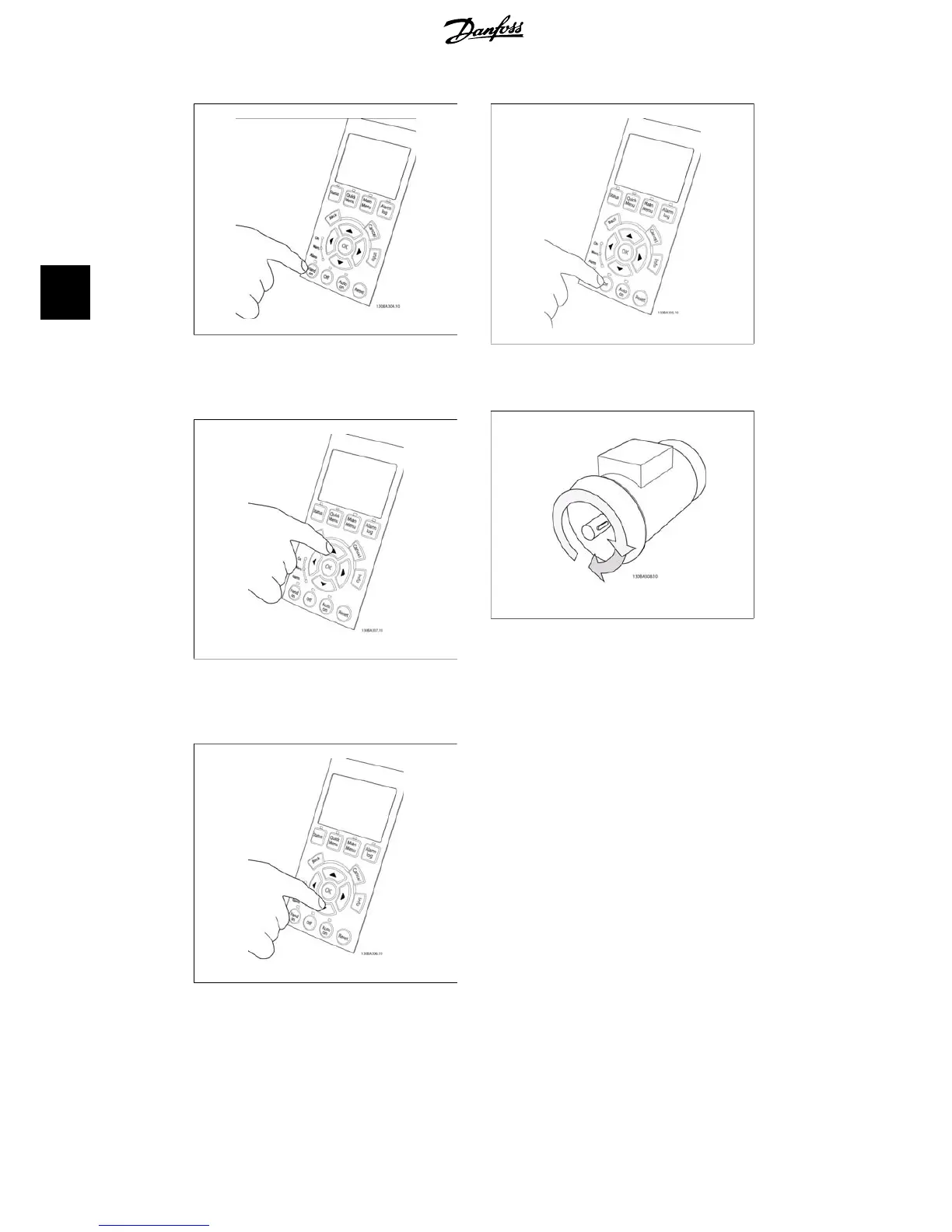

Illustration 4.23:
Step 5: By pressing the [Hand on] button, the
LED above the button should be lit and the motor
may rotate.
Illustration 4.24:
Step 6: The speed of the motor can be seen in
the LCP. It can be adjusted by pushing the up ▲
and down arrow buttons.▼
Illustration 4.25:
Step 7: To move the cursor, use the left and◄
right arrow buttons. This enables changing the►
speed in larger increments.
Illustration 4.26:
Step 8: Press the [Off] button to stop the motor
again.
Illustration 4.27:
Step 9: Change two motor wires if the desired
rotation of direction is not achieved.
