1.4 Programming
1.4.1 Programming with the Local Control
Panel (LCP)
NOTE
The frequency converter can also be programmed from a
PC via RS-485 com-port by installing the MCT 10 Set-up
Software. This software can either be ordered using code
number 130B1000 or downloaded from the Danfoss Web
site: www.danfoss.com/BusinessAreas/DrivesSolutions/softwar-
edownload
1.4.2 Local Control Panel (LCP)
The LCP is divided into four functional sections.
A. Alphanumeric display
B. Menu key
C. Navigation keys and indicator lights (LEDs)
D. Operation keys and indicator lights (LEDs)
130BB765.11
B
a
c
k
Com.
1-20 Motor Power
[5] 0.37kW - 0.5HP
Setup 1
A
B
1
12
13 14 15
11
11
10
9
8
7
6
5
4
3
2
C
D
Status
Main
Menu
Quick
Menu
Hand
On
OK
Menu
O
Reset
Auto
On
Alarm
Warn.
On
11

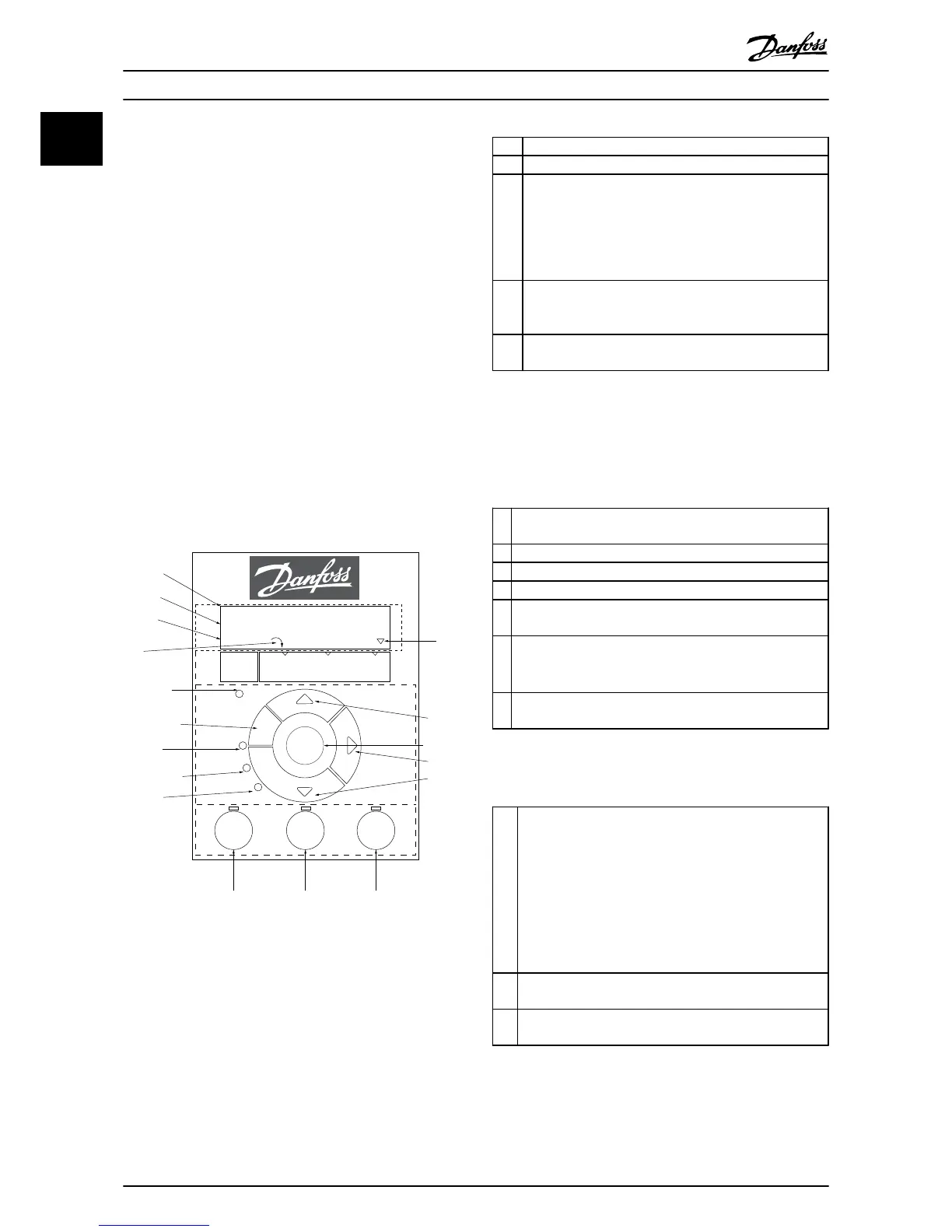

Illustration 1.11 Local Control Panel (LCP)
A. Alpha Numeric Display
The LCD-display is back-lit with 2 alpha-numeric lines. All
data is displayed on the LCP.
Information can be read from the display.
1
Parameter number and name.
2 Parameter value.
3 Set-up number shows the active set-up and the edit set-
up. If the same set-up acts as both active and edit set-up,
only that set-up number is shown (factory setting). When
active and edit set-up differ, both numbers are shown in
the display (Setup 12). The number flashing, indicates the
edit set-up.
4 Motor direction is shown to the bottom left of the display
– indicated by a small arrow pointing either clockwise or
counterclockwise.
5 The triangle indicates if the LCP is in status, quick menu or
main menu.
Table 1.14
B. Menu key
Use the menu key to select between status, quick menu or
main menu.
C. Navigation keys and indicator lights (LEDs)
6 Com led: Flashes when bus communication is communi-
cating.
7 Green LED/On: Control section is working.
8 Yellow LED/Warn.: Indicates a warning.
9 Flashing Red LED/Alarm: Indicates an alarm.
10 [Back]: For moving to the previous step or layer in the
navigation structure
11
[
▲
] [
▼
] [►]: For maneuvering between parameter groups,
parameters and within parameters. Can also be used for
setting local reference.
12 [OK]: For selecting a parameter and for accepting changes to
parameter settings
Table 1.15
D. Operation keys and indicator lights (LEDs)
13
[Hand On]: Starts the motor and enables control of the
frequency converter via the LCP.
NOTE
Terminal 27 Digital Input (5-12 Terminal 27 Digital
Input) has coast inverse as default setting. This means
that [Hand On] does not start the motor if there is
no 24 V to terminal 27. Connect terminal 12 to
terminal 27.
14 [Off/Reset]: Stops the motor (Off). If in alarm mode the
alarm will be reset.
15 [Auto On]: frequency converter is controlled either via
control terminals or serial communication.
Table 1.16
Quick Guide
VLT
®
HVAC Basic Drive Cascade Controller Quick Guide
12 MG18F402 - VLT
®
is a registered Danfoss trademark
