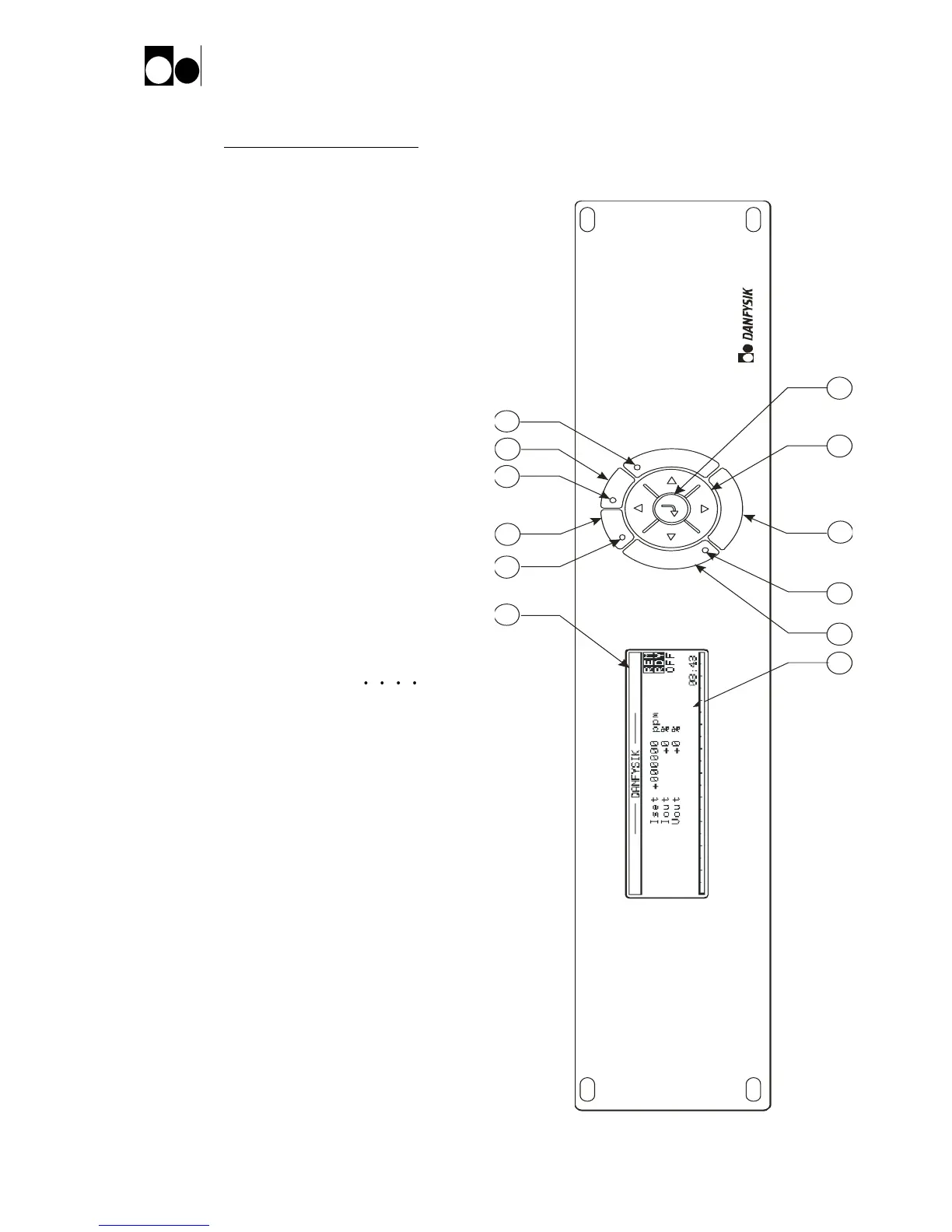

3.2.3 Front panel controls.
1. Graphic display 240*64
2. Main power is "ON" LED.
3. Main power "ON" push button.
4. Main power is "OFF" LED.
5. Main power "OFF" push button.
6. READY LED indicates when the
actual
output current is within a predefined
limit.
7. Control Power "ON". Back light is
lit.
8. Interlock "RESET" push button.
9. Sum Interlock LED.
10. MENU - Enter / Exit pull down
menus.
11. Navigation keys.
12. ENTER - Enter / Exit parameter
change.
