MAGNET POWER SUPPLY SYSTEM 9100
43
DANFYSIK A/S - DENMARK.

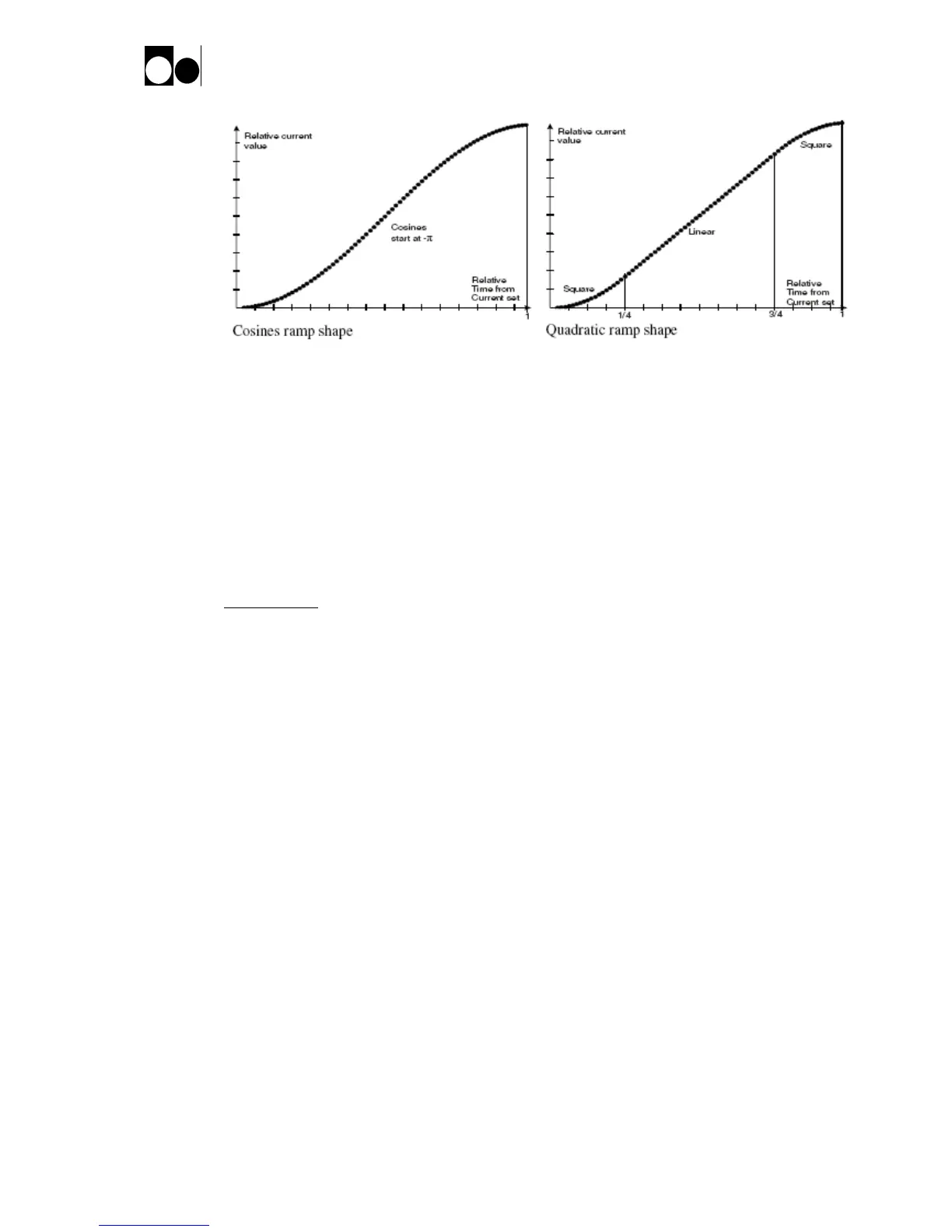

The time slot must be given as a multiple of 1.25ms. Between 1.25ms to 1 second. Any value
in-between will automatically be rounded according to formulae:
{time slot}=frac({time}/0.00125)*0.00125
The ramp profile can be stopped either with a “STOP” command or when the power supply is
turned OFF.
The state of the ramp profile can be read through the “RR” command.
3.3.9 SW limits
The limits of the “Arbitrary point method” ramp profile SW are:
- The set value must be given in ppm units
- The time between two points can be between 0.2 to 65535 seconds.
- Maximum numbers of stacks: = 15
- Maximum number of lines in a stack: = 15
The limits of the “Equal time slot method” ramp profile SW are:
- The set value must be given in a floating point representation normalized to
1.000000.
- The time slot may be between 0.0125 to 1 second given in a floating point
representation normalized to 1.0000.
- Maximum numbers of stacks = 1
- Maximum number of time slots in a stack = 1000
The limits of the “Auto Slew Rate method” ramp profile SW are:
- Maximum positive slew rate time = 10 sec,
- Maximum negative slew rate time = 10 sec,
- Minimum positive slew rate time = 5m sec,
- Minimum negative slew rate time = 5m sec,
- Number of points = 80 with a minimum interval of 2.5ms
