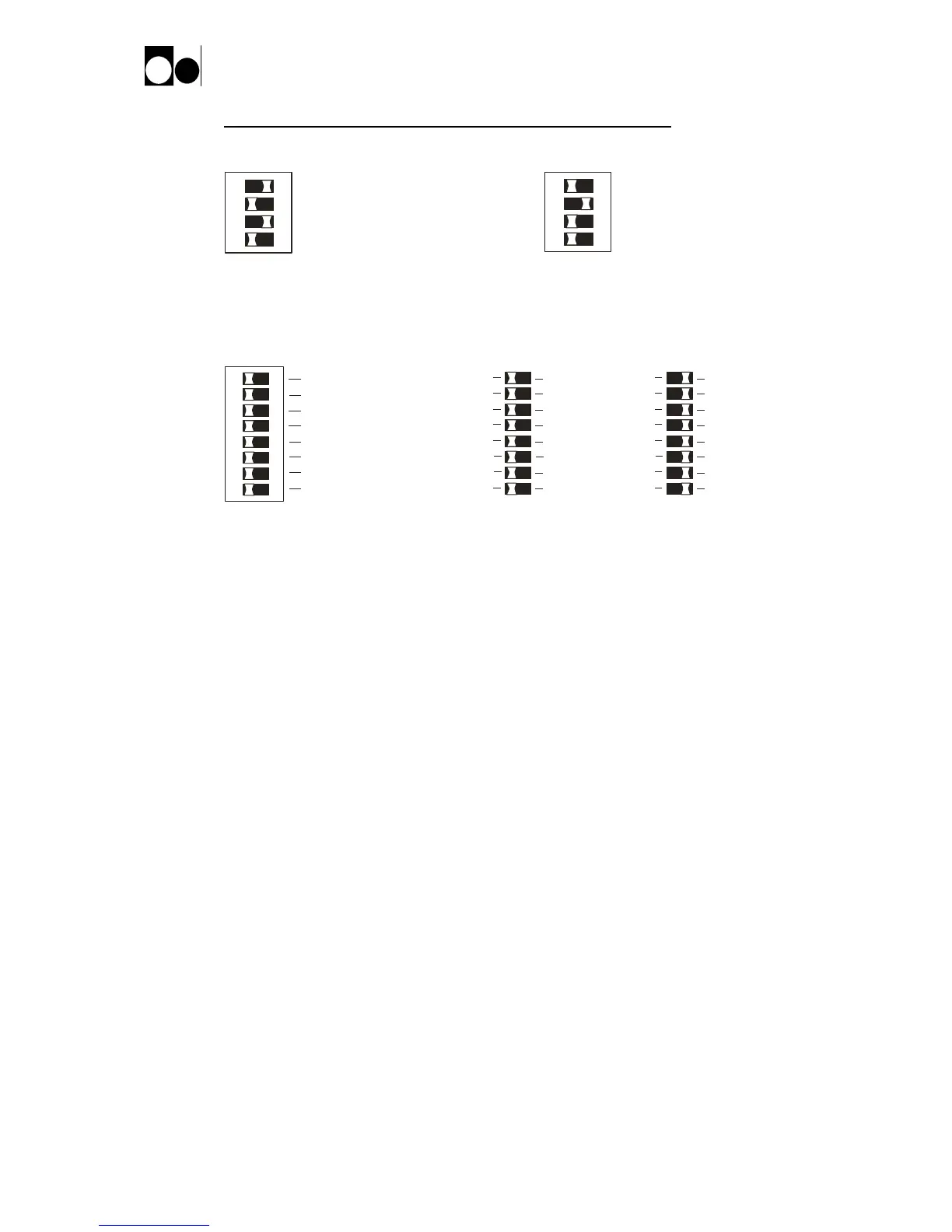

LINE FUNCTION PROTOCOL SETUP (Esc<LINE)
SW3 FOR LOCAL LINE
SW3 FOR REMOTE LINE
ON ON
1
2 3
4
1
2 3
4
5
2
The “LINE FUNCTION PROTOCOL SETUP” is for setting up serial line protocols.
Parameters:
SW4
„OK‟ ANSWER MODE
DISABLED ENABLED
RS 485 LINE TURN AROUND
DISABLED ENABLED
RS 485 LINE TURN AROUND
DISABLED ENABLED
RS 485 COMMUNICATION
DISABLED ENABLED
NOT USED
DISABLED ENABLED
XON/XOFF PROTOCOL
DISABLED ENABLED
NOT USED
BOOT CHARACTER
SEND “FF” Hex SEND “R”
ON
1
2 3
4 5 6
7
8
DISABLED
ENABLED
Default setting after “COLD BOOT”
Remote Line: RS485 Communication: Disabled
(=0) RS485 Line turn around time: Disabled Line turn around set bit 0
RS485 Line turn around time: Disabled Line turn around set bit 1
OK Answer mode: Disabled
BOOT character: "FF" / "R"
NU Disabled
XON/XOFF Protocol: Disabled
NU Disabled
Local Line: RS485 Communication: Disabled
(=1) RS485 Line turn around time: Disabled Line turn around set bit 0
RS485 Line turn around time: Disabled Line turn around set bit 1
OK Answer mode: Disabled
BOOT character: "FF" / "R"
NU Disabled
XON/XOFF Protocol: Disabled
NU Disabled
Line turn around set bit:
2, 3: 0, 0 Delay = 0
2, 3: 1, 0 Delay = 1ms approx.
2, 3: 0, 1 Delay = 2ms approx.
2, 3: 1, 1 Delay = 3ms approx.
The line turn around time setting includes RS422 as well.
