Attaching Sharpening Fixture to
Base Casting:
Make sure all contact areas are clean and free
of metal dust.

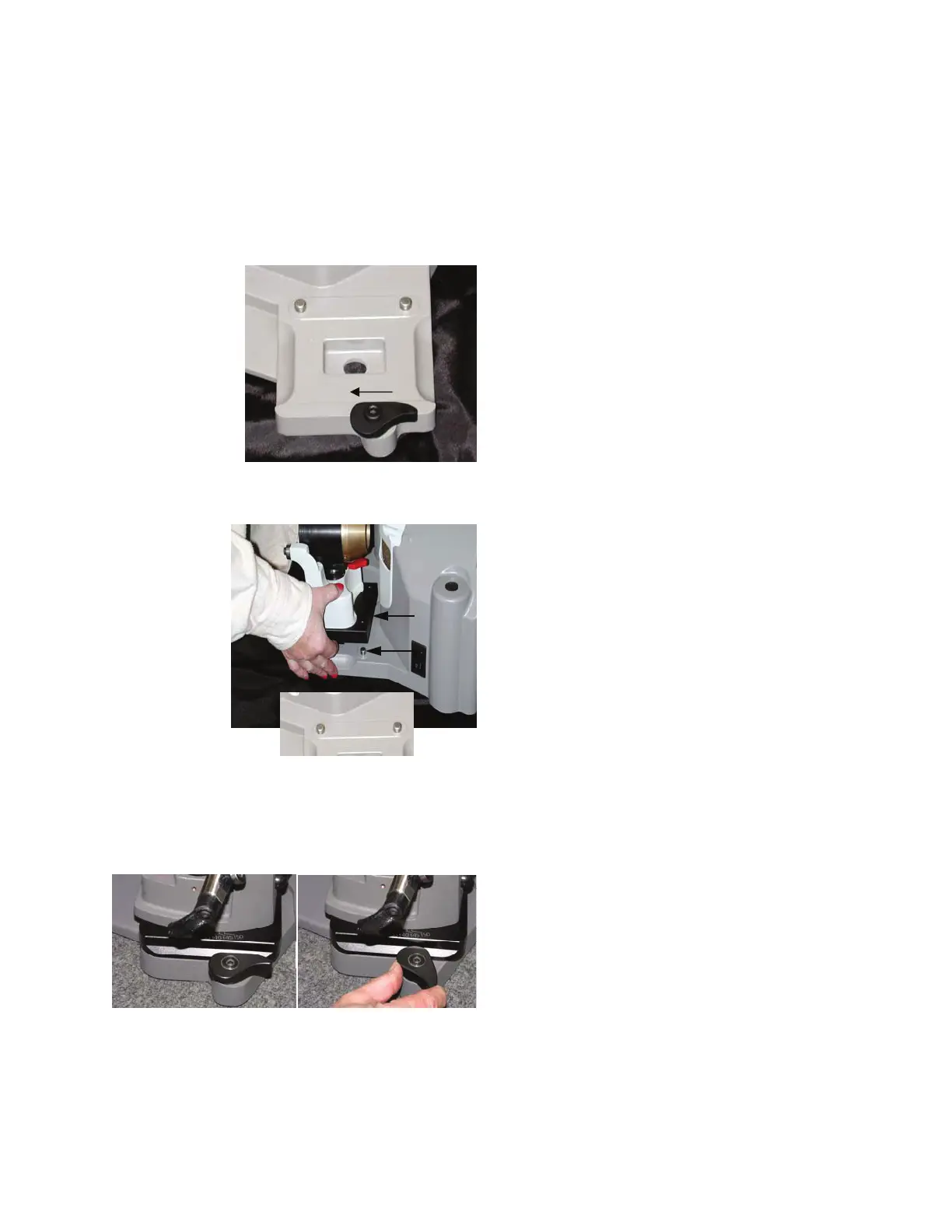

1. Rotate the locking lever so the flat edge is
on top, horizon-
tal and in a
straight line
with the base
casting.
2. Position the
sharpening fixture so that the 2 location holes
on the base of
the alignment
fixture are
aligned with
the 3/8 dowel
pins.
3. After sharpening fixture is in place, rotate
the locking lever clockwise until snug. This will
secure the sharpening fixture to the base.
