Darex XT-3000 - Auto Sharpening Fixture

75
Auto Sharpening Fixture

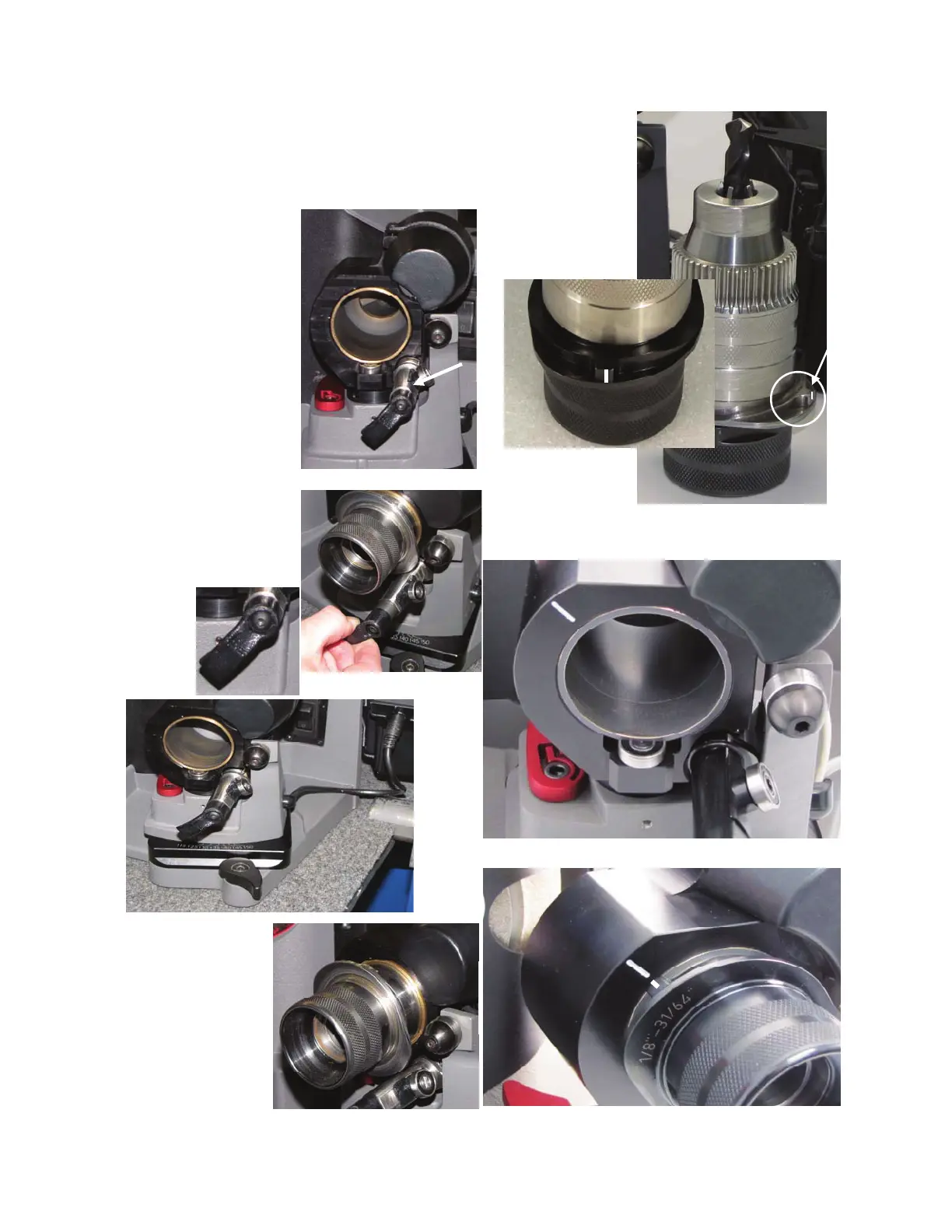

SECURE CHUCK IN SHARPENING FIXTURE
After the drill has been properly aligned and
secured in the chuck, be sure to lock the chuck
into the automated sharpening fixture.
Located on the front of
the sharpening fixture
is a spring loaded han-
dle assembly.
This is the “Cam Fol-
lower” assembly.
Grip the Cam Follower
“Knob”, rotate the as-
sembly as far clockwise
as possi-
ble.
This will allow you
to insert the chuck
into the sharpening
tube without inter-
ference.
Insert chuck into
sharpening port
with the white line
on the dog,
aligned
with the locating mark on the face of the
sharpening tube housing.
