BATTERY CHARGING REQUIREMENTS
The default charging parameters are shown below. Use this as a reference to make sure the battery selected is
compatible with H5000 inverter. It is recommended that you use a deep cycle battery when the mode of operation is
not set as one of the two back-up modes. If you want to change battery charging parameters, please contact your
Darfon representative.
Charging Voltage
Default Value
Max. Charging Current
60A
Floating Charging Voltage
54.0 Vdc
Max. Absorption Charging Voltage
56.0 Vdc
Battery Overcharge Protection
58.0 Vdc

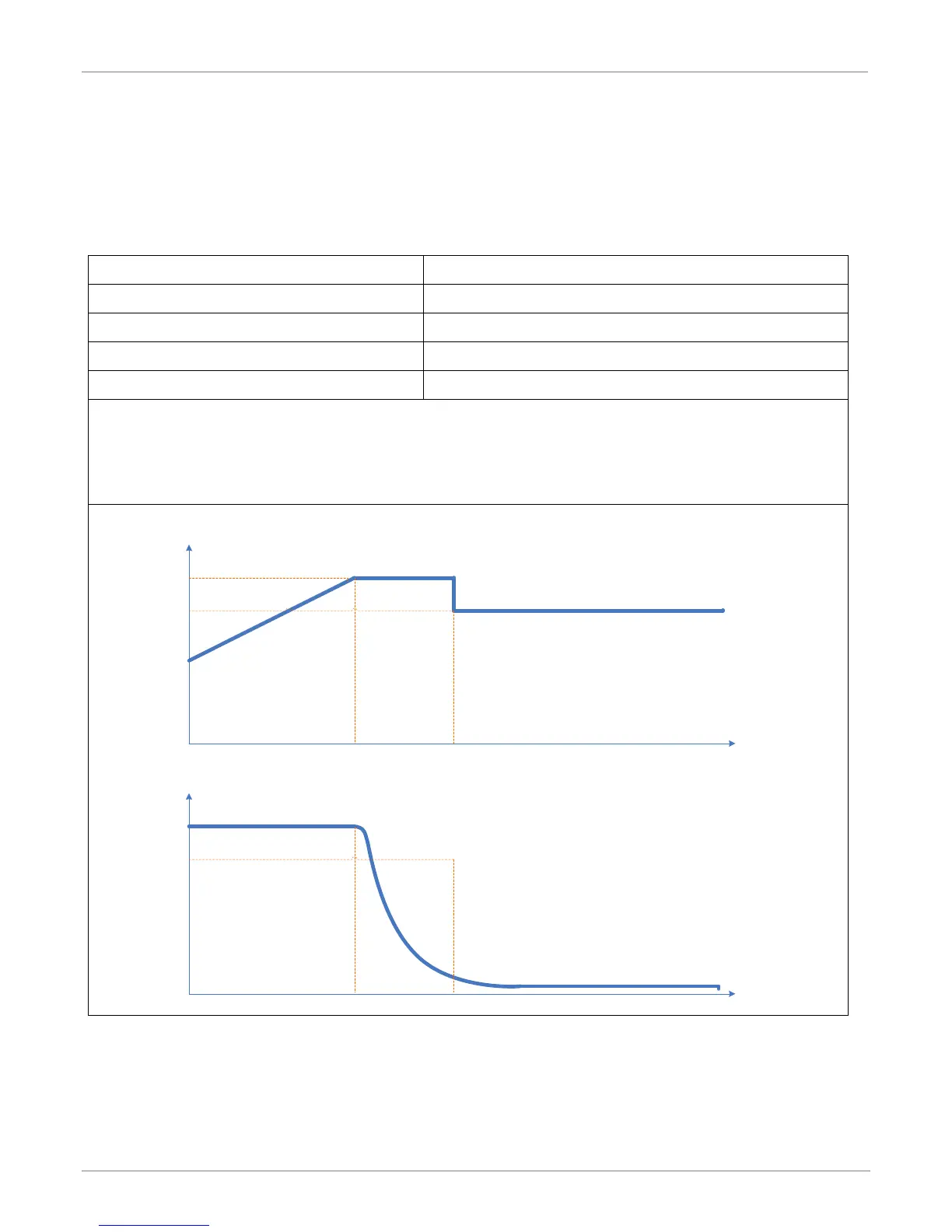

Charging process based on default setting.
3 stages:
First - max. charging voltage increases to 56V;
Second- charging voltage will maintain at 56V until charging current is down to 5 Amp;
Third- go to floating charging at 54V.
Bulk FloatingAbsorption
time
U
time
I
Bulk Voltage
Float Voltage
