SR200 & SR300 Card Printers and LM200 & LM300 Laminators User’s Guide 91

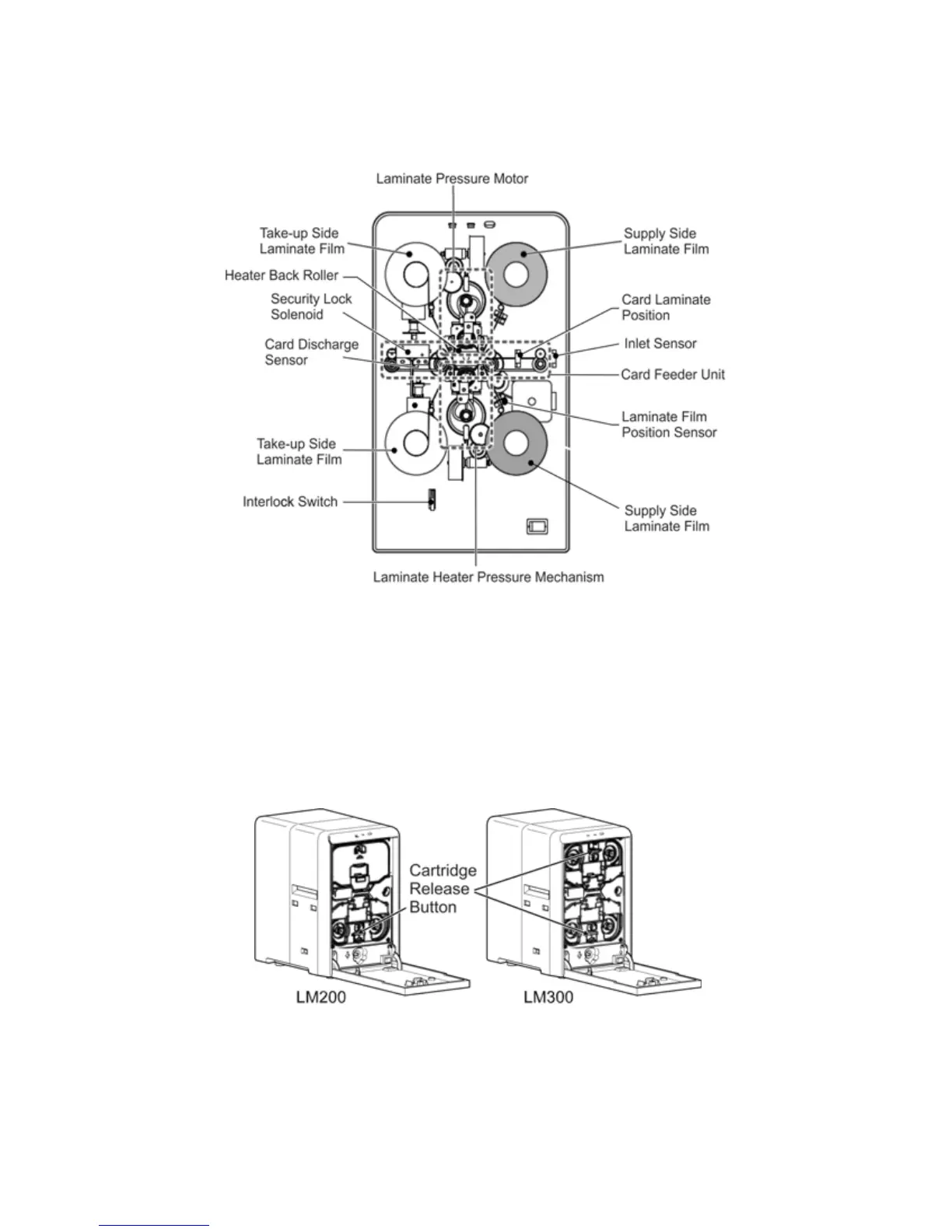

Laminator Roller Layout
Recovering from Laminator Errors
TheprinterLCDpanelandtheStatusMonitordisplaylaminatormessages.Referto“Error
Messages”onpage 95foralistofmessages.
Clearing a Card Jam
TheprinterLCDpaneldisplaysthelocationofthelaminatorcardjam:CardJam(In),CardJam
(Middle),orCardJam(Out).Usethefollowingstepstoremovecardjams:
1. Openthelaminatordoor.
2. Turnthetake‐upknobclockwise(bottom)orcounterclockwise(top)toremoveslackinthe
laminatormaterial.
