SD Series Installation and Administrator’s Guide A-5

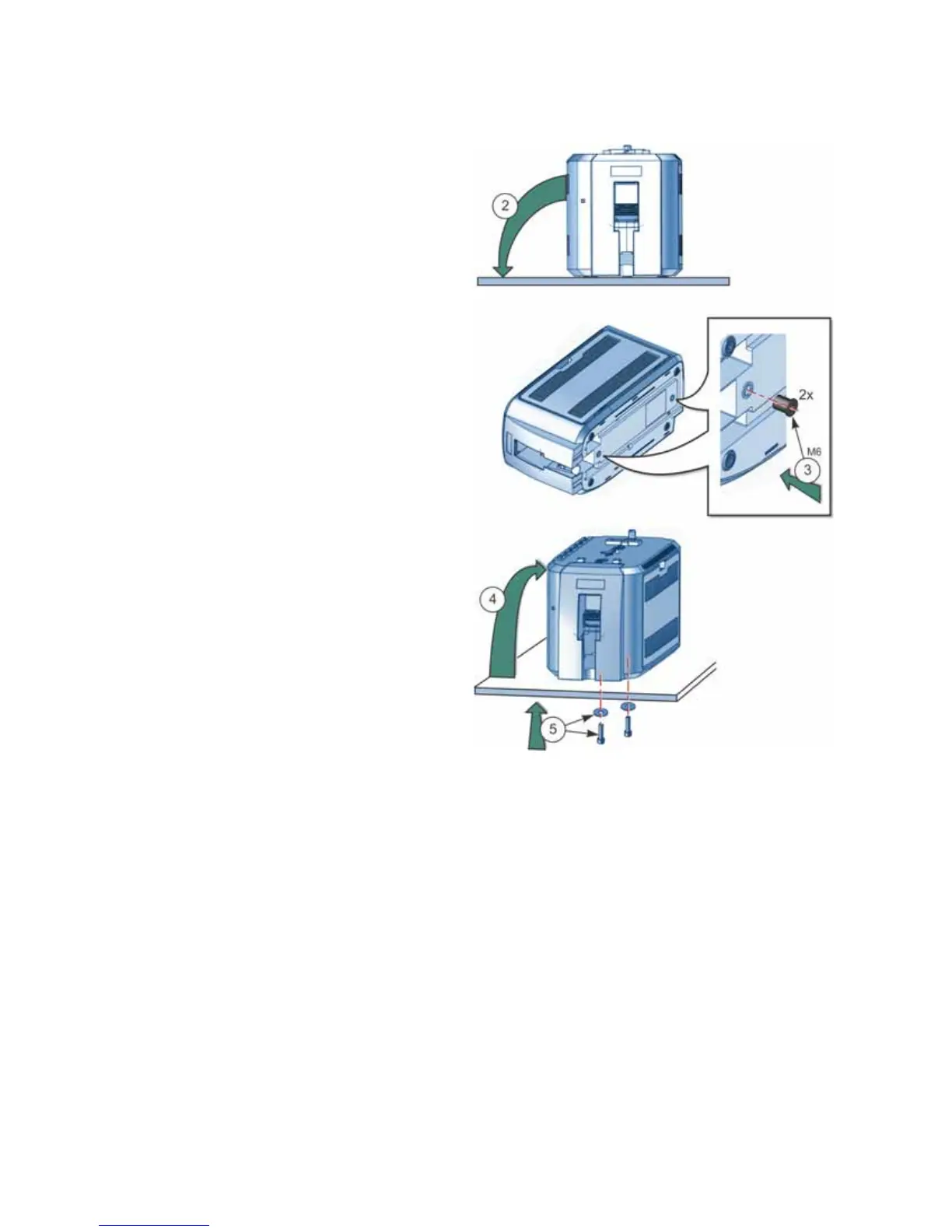

Carefullytipthelaminator

ontoitsleftside(theside

withouttheaccessdoor).

3. InserttheM6wellnut

threadedinsertsintothe

bolt‐downopeningsonthe

bottomofthelaminator.

4. Returnthelaminatortoits

uprightpositionand

positionitovertheholes

thataredrilledinthe

mountingsurface.

5. Securethelaminatorto

themountingsurface.

A. Placeaflatwasheron

eachofthescrews

beneaththemounting

surface.

B. InserttheM6screws

throughtheholesin

themountingsurface

andintothewellnuts

inthebottomofthe

laminator.

C. Tightenthescrews

securely.
