3. Return the sample holder to the upright position.
WARNING
Do not allow sample arm to spring back.

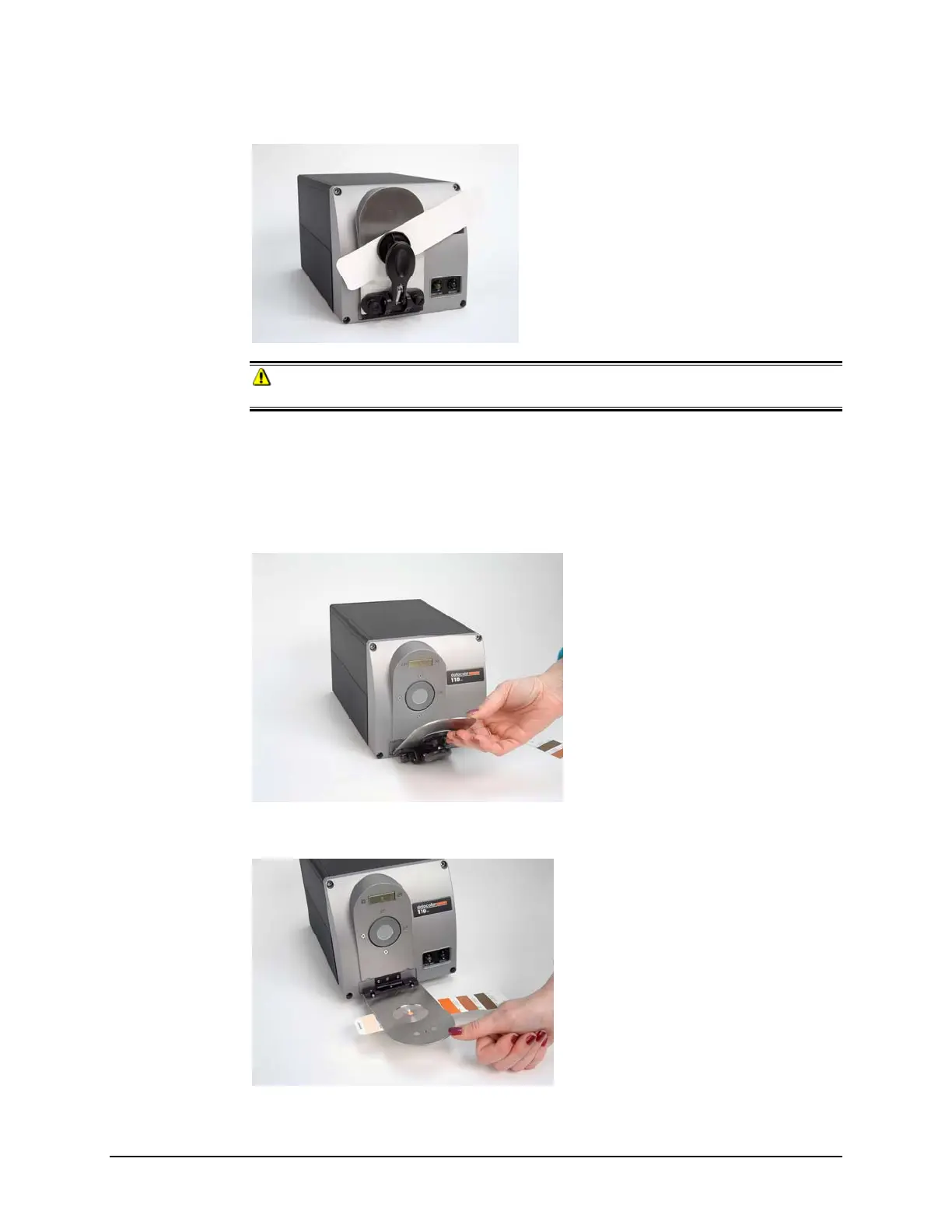

Sample Viewing Port
When measuring small samples, you may need to check that the sample is properly positioned at the
port. To verify that the correct area of the sample is being measured:
1. Grasp the tab above the aperture plate.
2. Pull top of door down to its full horizontal position. The backside of this door reveals the
area of the sample covering the port opening.
26 • About Sample Presentation/Measurement Datacolor 110 User's Guide
