DM4380 – Installation Guide
Hardware DESCRIPTION
204.4336.00 - October/2019
14

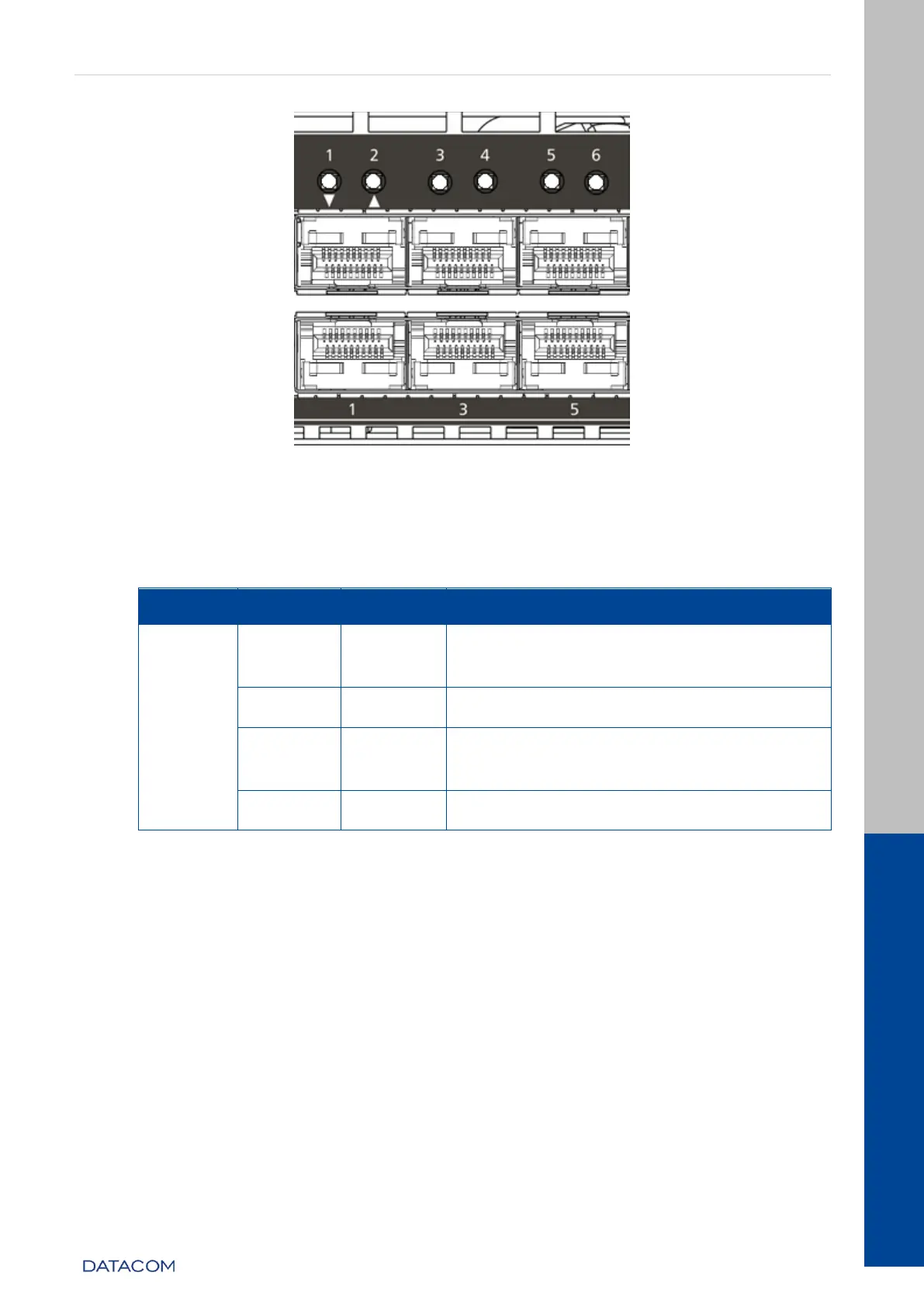

Figure 6 - 10GE SFP+ Port LEDs
3.8.1.1 10 Gigabit Optical Ethernet Interface LED indicators
The convention to indicate the operation and mode of operation of the 10GE SFP+
interfaces is described in the table below:
Indicator
Color
Status
Description
LINK/ACT
/SPEED
GREEN
On
Link Up (active port) operating in
10GBase-X mode.
YELLOW
On
Link Up (active port) operating at a rate
lower than 10GE.
GREEN or
YELLOW
Blinking
Data sending and/or receiving activity
-
Off
Link Down (active port)
Table 5 - 10GE SFP+ Interface LED indicators
3.8.1.2 40 and 100 Gigabit Optical Ethernet Interfaces
The DM4380 12XS+3CX has 3 high-speed interfaces using QSFP28 connectors.
