DS2 Ethernet Instruction Manual
24

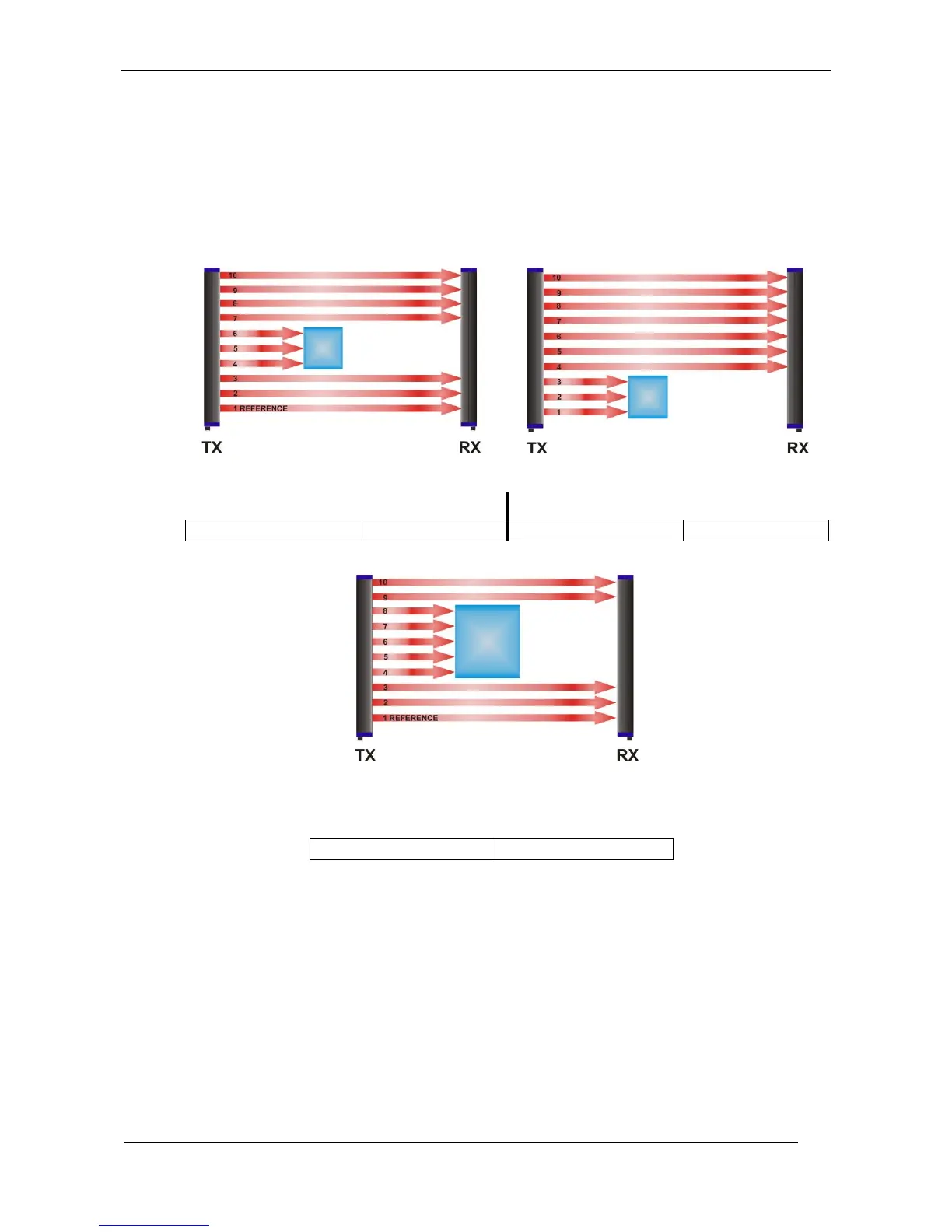

Absolute detection mode
The digital output switches only if the object, whose dimensions have been previously memorised,
passes in the exact position where it has been previously detected (see Fig.15).
The analogue output is always active in this configuration and supplies a voltage value according to
the measurement setting.
Analogue output, absolute
measurement (top beam)
Switching
Output
Analogue output, relative
measurement (total beam)
Switching
Output
= 6 V
ON
= 3 V (1,2,3 beams)
OFF
Analogue output, relative
measurement (total beam)
Switching
Output
= 5 V (4,5,6,7,8 channels)
OFF
Fig. 15
