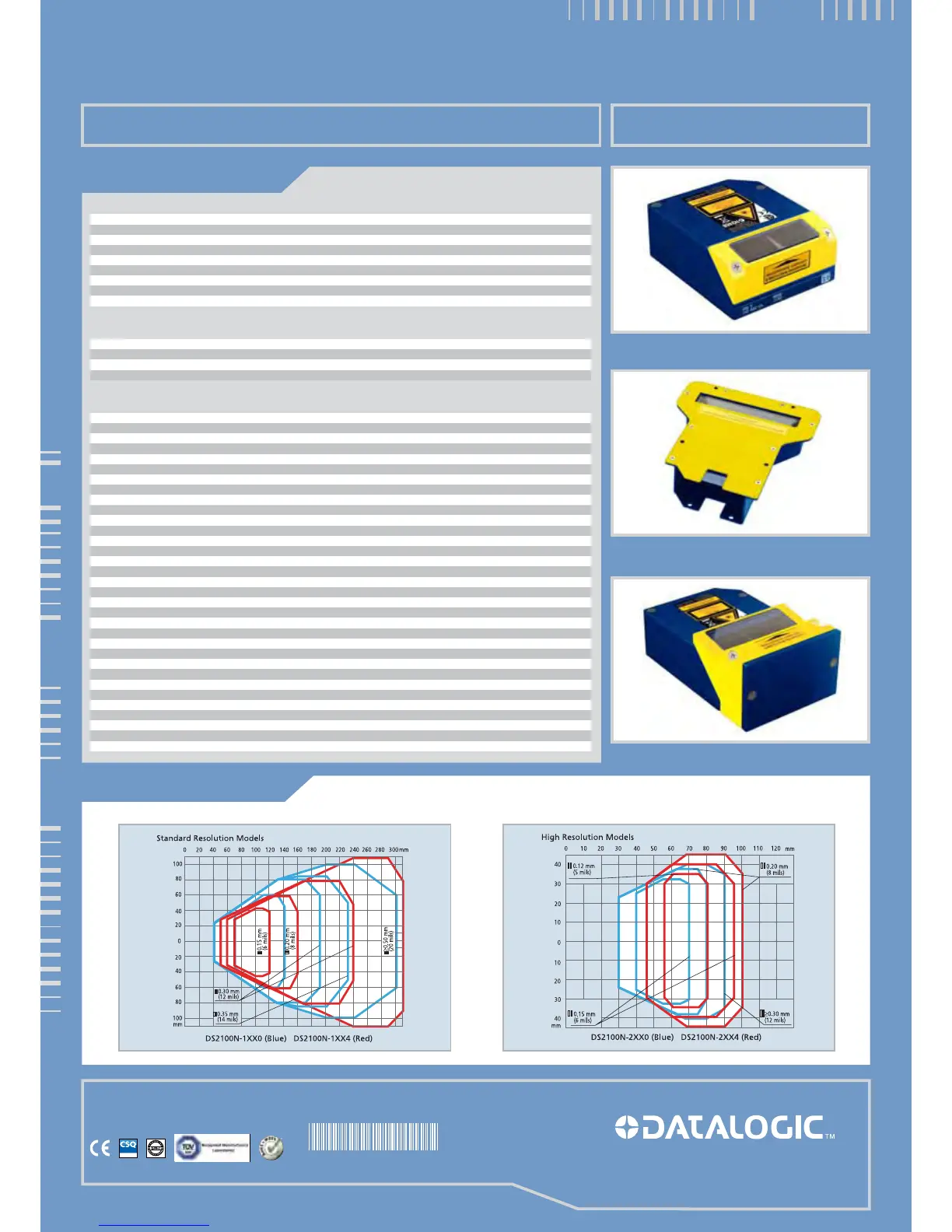

9C0005565
DS2100N
Accessories
GFC-2100 90° Mirror Solution
GFC-200 Contact Reading Mirror
Specications
DATALOGIC AUTOMATION
For more information and software downloads see: www.automation.datalogic.com/DS2100N
Product and Company names and logos referenced may be either trademarks or registered
trademarks of their respective companies. We reserve the right to make modications and
improvements.
February 2008
Models
Accessories
Technical Data
OM2000 Oscillating Mirror
Reading Diagrams
DIMENSIONS 84 x 68 x 34 mm (3.31 x 2.68 x 1.34 in)
WEIGHT 330 g (11.6 oz)
CASE MATERIAL Aluminum
OPERATING TEMP. 0 to 45 °C (32 to 113 °F)
STORAGE TEMP. -20 to 70 °C (-4 to 158 °F)
HUMIDITY 90% non condensing
VIBRATION RESISTANCE IEC 68-2-6 test FC 1.5 mm; 10 to 55 Hz; 2 hours on each axis
SHOCK RESISTANCE IEC 68-2-27 test EA 30 G; 11 ms; 3 shocks on each axis
PROTECTION CLASS IP65
LIGHT SOURCE Visible laser diode (630 to 680 nm)
SCANNING SPEED 500 to 1000 scans/sec (SW programmable)
MAX. RESOLUTION Up to 0.12 mm (5 mils)
MAX. READING DISTANCE Up to 310 mm (12.2 in) on 0.50 mm (20 mils) bar codes
MAX. DEPTH OF FIELD Up to 260 mm (10.2 in) on 0.50 mm (20 mils) bar codes
APERTURE ANGLE 60 degrees
RASTER APERTURE 24 mm (0.95 in) at 500 mm (20 in)
READABLE CODES Code 2/5, Code 39, Code 93, Code 128, EAN/UPC, EAN 128,
Codabar, Pharmacode, ISBN128
MULTILABEL READING Up to 10 different symbologies during the same reading phase
COMM. INTERFACES Main port RS232/RS485 SW selectable up to 115.2 kbps
Aux. port RS232 up to 115.2 kbps
ID-NET™ port up to 1 Mbps
DEVICE PROGRAMMING Genius™ SW conguration tool
X-PRESS™ human machine interface
Serial host mode programming sequences
OPERATING MODES ‘On line’, ‘Serial On-line’, ‘Automatic’, ‘Continuous’, ‘Test’, ‘Veri er’
INPUT SIGNAL External Trigger (optocoupled, NPN/PNP), IN2 ( not optocoupled, NPN only)
OUTPUT SIGNALS OUT1, OUT2 SW programmable event driven (optocoupled, NPN/PNP)
LASER CLASSIFICATION IEC 825-1 Class 2; CDRH Class II
LASER CONTROL Security system to turn laser off in case of motor slow down or failure
MOTOR CONTROL Motor ON/OFF command string and motor speed SW programmable
POWER SUPPLY 10 to 30 VDC
POWER CONSUMPTION 3 W (xxx0 models); 4 W (xxx4 models)
Order n° models Description
930153183 DS2100N-1200 STD-RES, LINEAR, NSC
930153184 DS2100N-2200 HIGH-RES, LINEAR, NSC
930153185 DS2100N-1210 STD-RES, RASTER, NSC
930153186 DS2100N-2210 HIGH-RES, RASTER, NSC
930153187 DS2100N-1204 STD-RES, LINEAR, HI-PERF, NSC
930153188 DS2100N-1214 STD-RES, RASTER, HI-PERF, NSC
930153189 DS2100N-2204 HIGH-RES, LINEAR, HI-PERF, NSC
930153190 DS2100N-2214 HIGH-RES, RASTER, HI-PERF, NSC
Order n° models Description
93ACC1839 OM2000N OSCILLATING MIRROR, NSC
93A201108 GFC-200 85° MIRROR CONTACT READING, NSC
93A201000 GFC-2100 90° Reading Mirror
Innovation > Solutions > Service > Results
UNI EN ISO9001
