DS6300 COMMON FEATURES
32

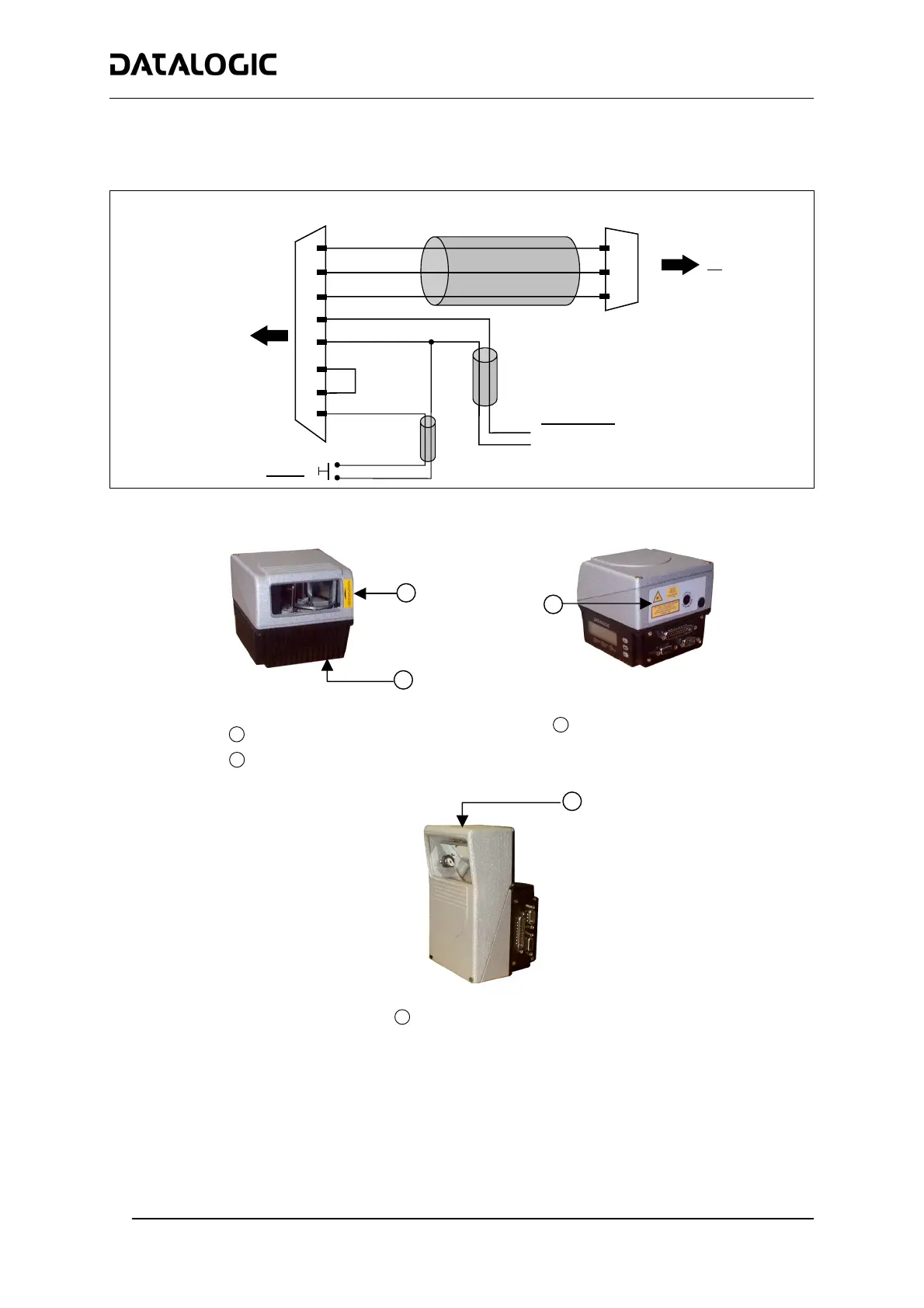

How To Build A Simple Interface Test Cable:
The following wiring diagram shows a simple test cable including power, external (push-button) trigger and PC
RS232 COM port connections.
25-pin D-sub female
23
20
GND
RXAUX
TXAUX
21
DS6300
25
13
GND
VS
9-pin D-sub female
GND
TX
RX
PC
2
3
5
18
9
EXT TRIG A
VS
Power Supply
VS (12 – 30 VDC)
Power GND
Trigger
EXT TRIG B
19
Safety Precautions
Figure A
Laser Safety Label
1
Identification Label
2
Figure B
Warning and Device Class Label
1
Figure C
Laser Safety Label
1
The scanner is classified as a Class 2 laser product according to EN 60825-1 regulations and as a Class II laser
product according to CDRH regulations.
Disconnect the power supply when opening the device during maintenance or installation to avoid exposure to
hazardous laser light.
There is a safety device which allows the laser to be switched on only if the motor is rotating above the threshold
for its correct scanning speed.
1
2
1
1
