Parts of the Imager
8 Gryphon™ I GD4100

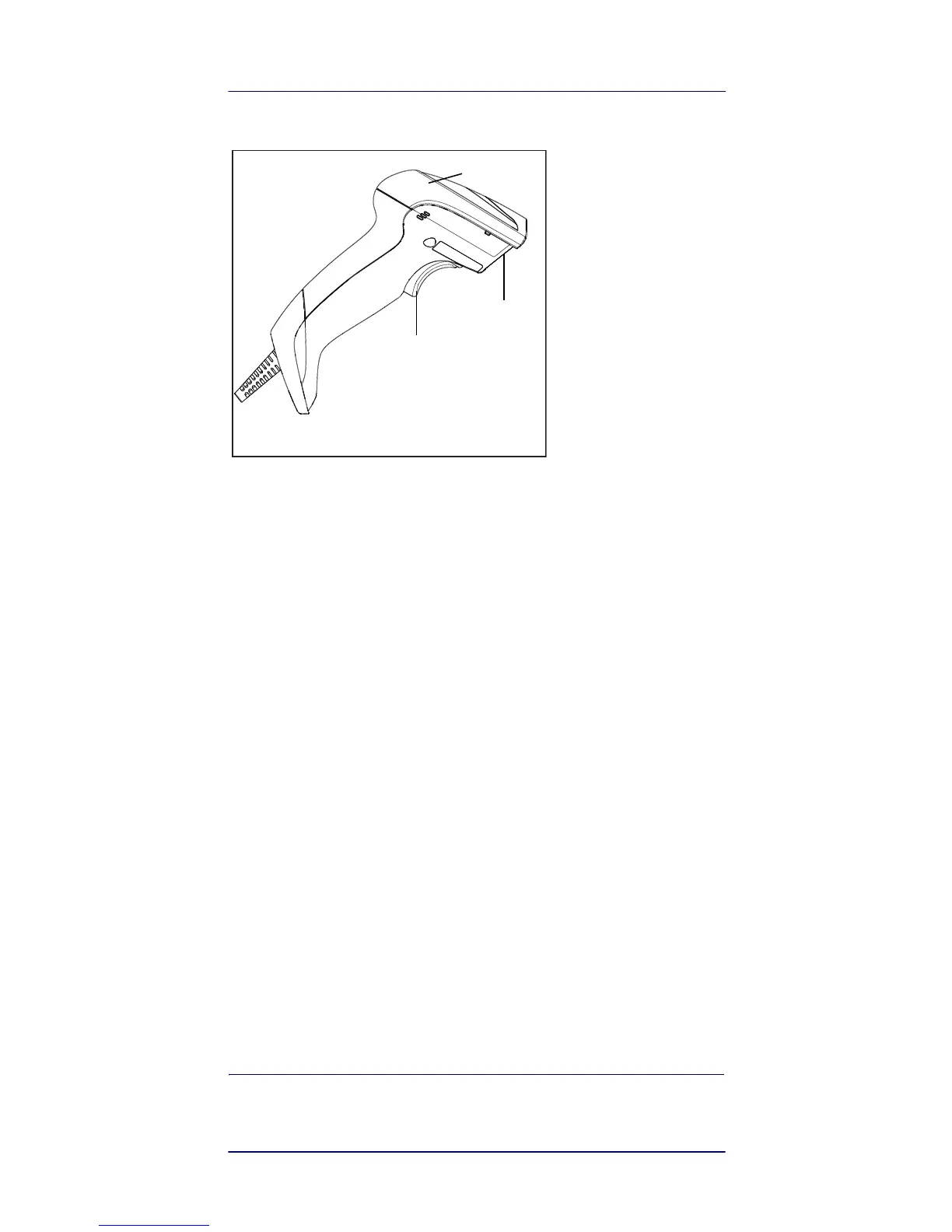

Parts of the Imager
Scanning Modes
The imager can operate in one of several scanning modes:
Trigger Single — When the trigger is pulled, scanning is activated
until one of the following occurs:
- a programmable duration
1
has elapsed
- a label has been read
- the trigger is released
This mode is associated with typical handheld reader operation:
when the trigger is pulled, scanning starts and the product scans
until the trigger is released, or a label is read, or the maximum
programmable duration
1
has elapsed.
Trigger Hold Multiple — When the trigger is pulled, scanning
starts and the product scans until the trigger is released or a pro-
grammable duration
1
has elapsed. Reading a label does not dis-
able scanning. Double Read Timeout
2
prevents undesired
multiple reads while in this mode.
Trigger Pulse Multiple — When the trigger is pulled and released,
scanning is activated until programmable duration1 has elapsed
or the trigger has been pulled again to transition to another
state. Double Read Timeout
2
prevents undesired multiple
reads while in this mode.
1. See the Product Reference Guide (PRG) for additional programmable fea-
tures, in this case: Scanning Active Time.
2. Double Read Timeout is also programmed using the PRG.
Trigger
Scan
Window
LED
