Datalogic Gryphon I GD4132 Quick Reference Guide

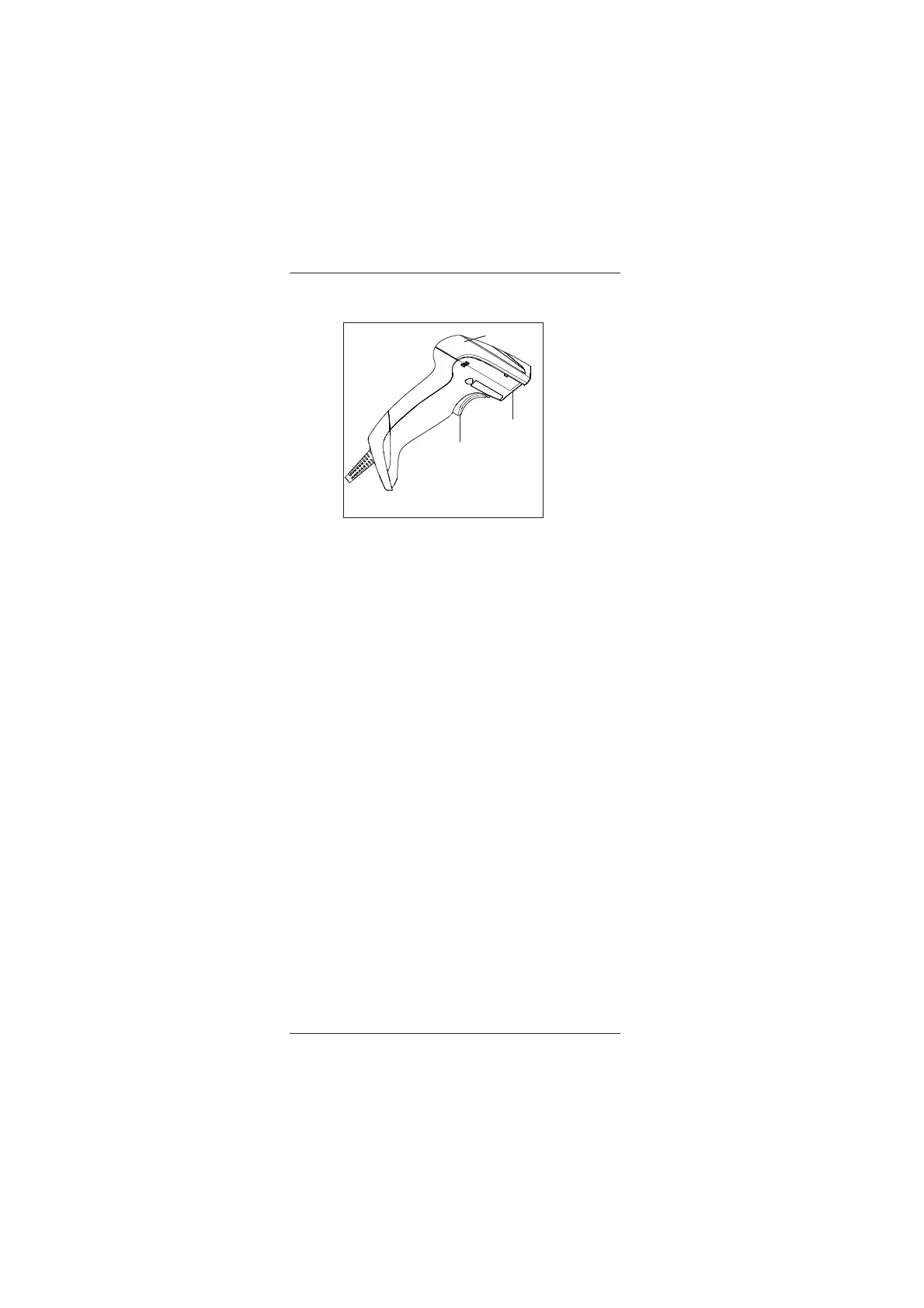

Parts of the Imager
10 Gryphon™ I GD4132
Parts of the Imager
Scanning Modes
The imager can operate in one of several scanning modes:
Trigger Single — When the trigger is pulled, scanning is
activated until one of the following occurs:
- a programmable duration
1
has elapsed
- a label has been read
- the trigger is released
This mode is associated with typical handheld reader
operation: when the trigger is pulled, scanning starts and
the product scans until the trigger is released, or a label is
read, or the maximum programmable duration
1
has
elapsed.
Trigger Hold Multiple — When the trigger is pulled, scanning
starts and the product scans until the trigger is released
or a programmable duration
1
has elapsed. Reading a label
does not disable scanning. Double Read Timeout
2
pre-
vents undesired multiple reads while in this mode.
Trigger Pulse Multiple — When the trigger is pulled and
released, scanning is activated until programmable dura-
tion1 has elapsed or the trigger has been pulled again to
transition to another state. Double Read Timeout
2
pre-
vents undesired multiple reads while in this mode.
1. See the Product Reference Guide (PRG) for additional
programmable features, in this case: Scanning Active
Time.
2. Double Read Timeout is also programmed using the
PRG.
Trigger
Scan
Window
LED

Datalogic Gryphon I GD4132 Specifications

General

Brand	Datalogic
Model	Gryphon I GD4132
Category	Barcode Reader
Language	English
