Setting Up the Reader
Quick Reference Guide 11

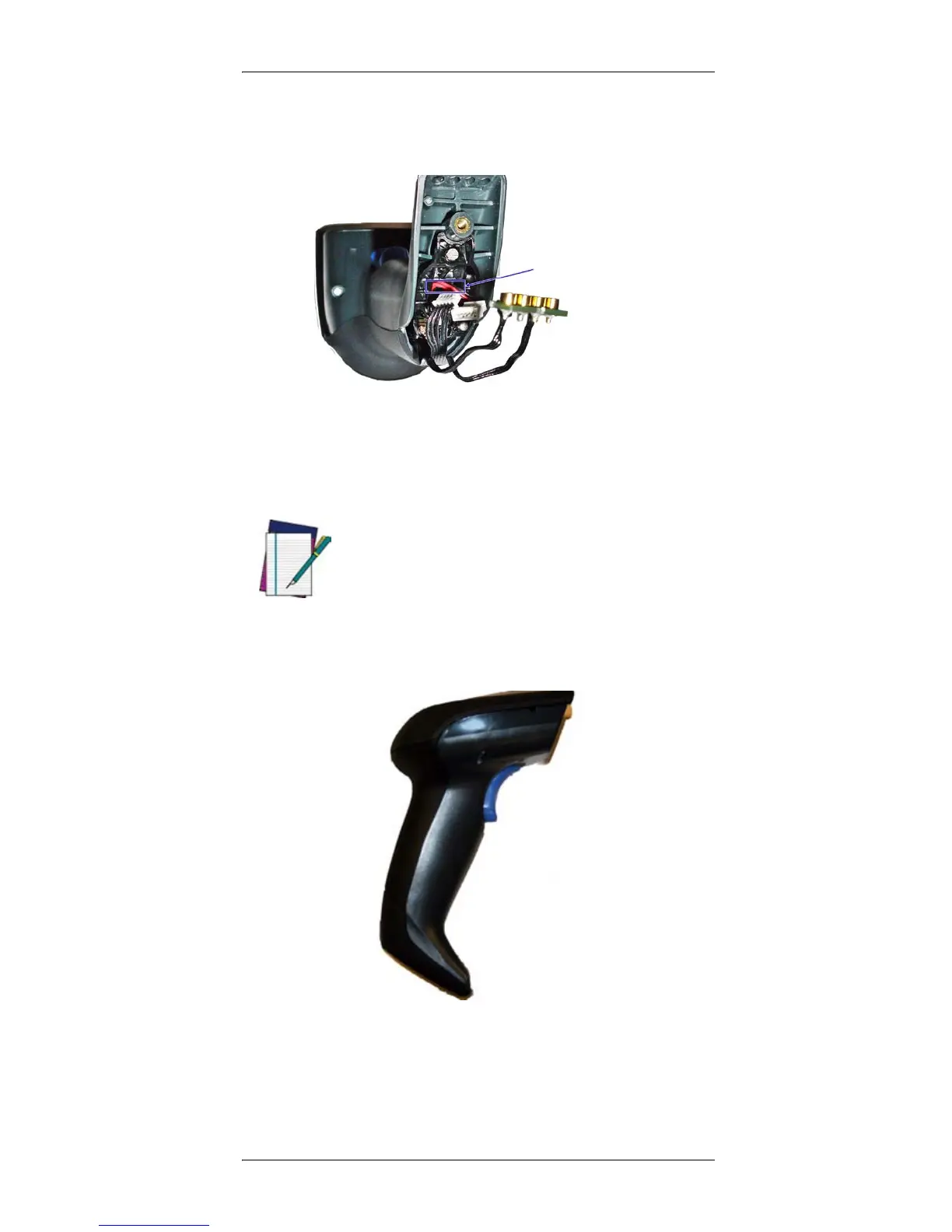

3. Carefully lift out the gold contacts circuit, and remove
the battery holder while letting the white connector pass
through the hole in the battery holder (as shown in the
picture below).
4. Remove the old battery from its place (if present), and
insert the new battery in the same position.
5. Replace the battery holder, plug in the connector and
return the contacts circuit to its previous location.
6. Insert the cover in the handle and screw it back into
place.
NOTE
When inserting the new battery into the handle, take
care to position the battery and the connector as
shown.
