Configuring the Base Station
Quick Reference Guide 15

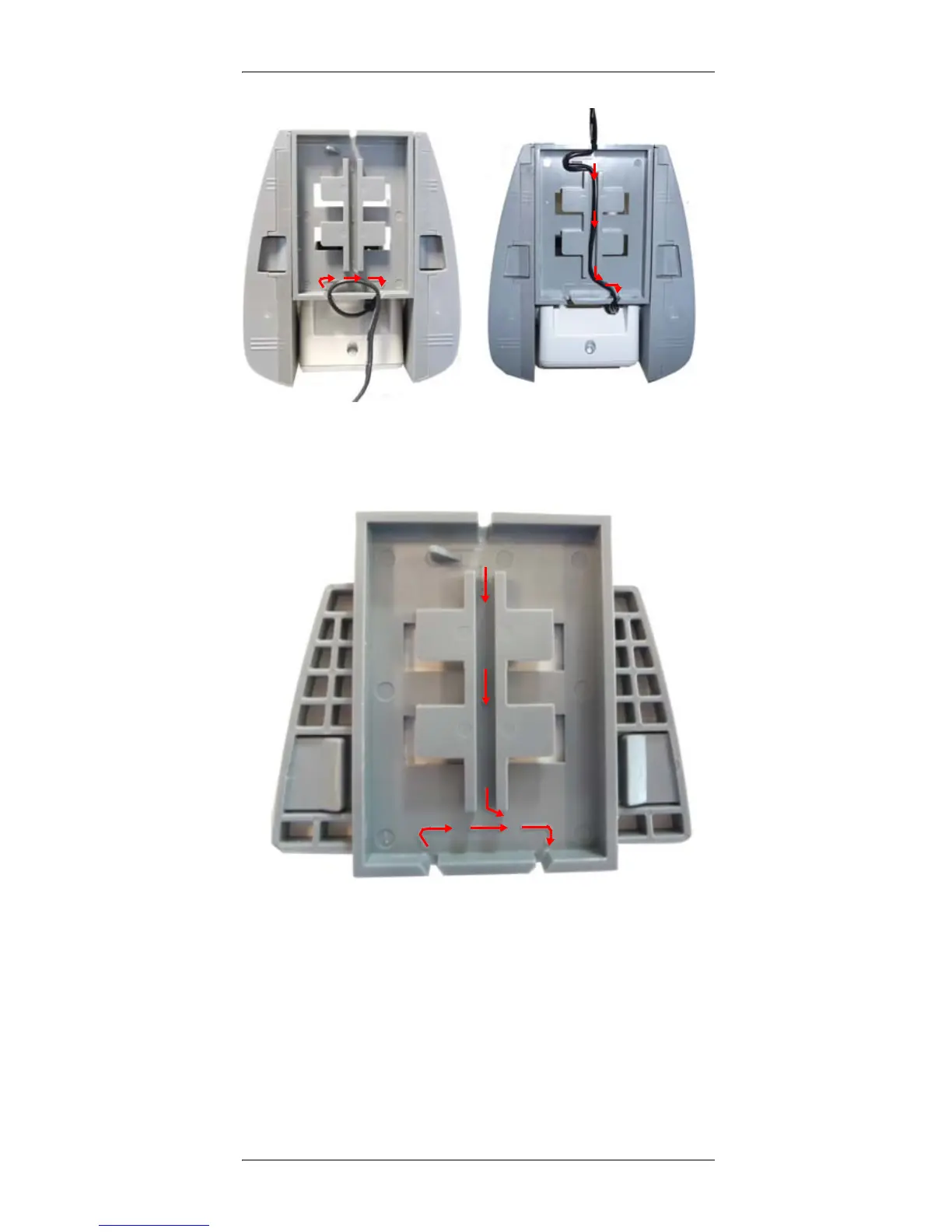

Figure 2. Options for routing the DC cord
Please refer to the arrows depicted on the bottom of the base when
placing the cables, detailed in Figure 3.
Figure 3. Arrows showing routing
Host Connection:
Verify before connection that the reader’s cable
type is compatible with your host equipment. Most connections
plug directly into the host device as shown in Figure 4 on page 16.
Keyboard Wedge interface cables have a ‘Y’ connection where its
female end mates with the male end of the cable from the key-
board and the remaining end at the keyboard port on the termi-
nal/PC.
