System and Network Layouts
18 Gryphon™ I GM4100

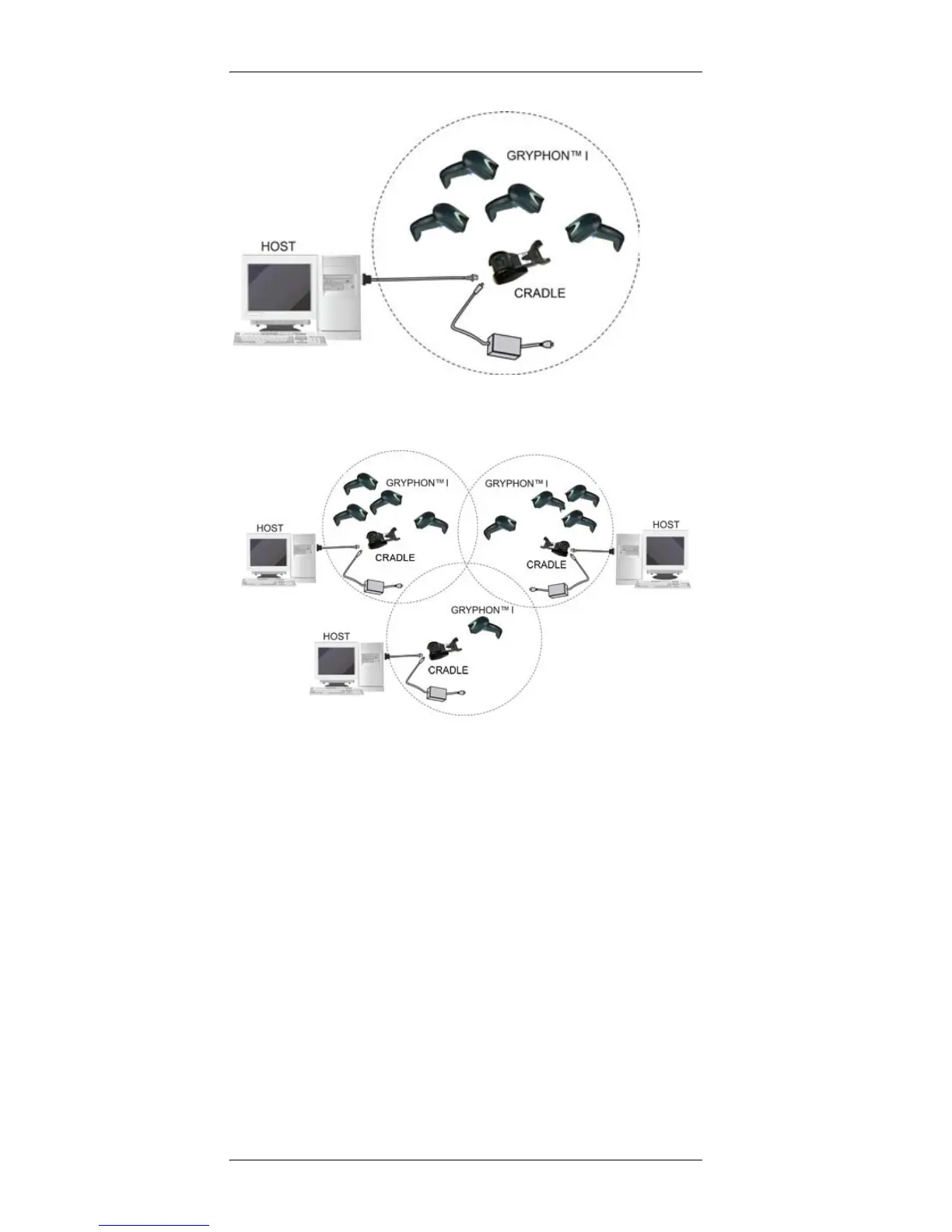

Figure 7. Multiple Reader Layout
In stand alone systems, each cradle is connected to a single Host.
Figure 8. Multiple Stand Alone Layouts
Many stand alone connections can operate in the same physical
area without interference, provided all readers and cradles in the
system have different addresses.
