System Connections
6 GWU-HS7600 GATEWAY
SYSTEM CONNECTIONS
The connection of the GWU-HS7600 Gateway can be done either via USB or
Wi-Fi interface.
USB
When using a USB connection, a USB host is needed to power and communi-
cate with the Gateway.

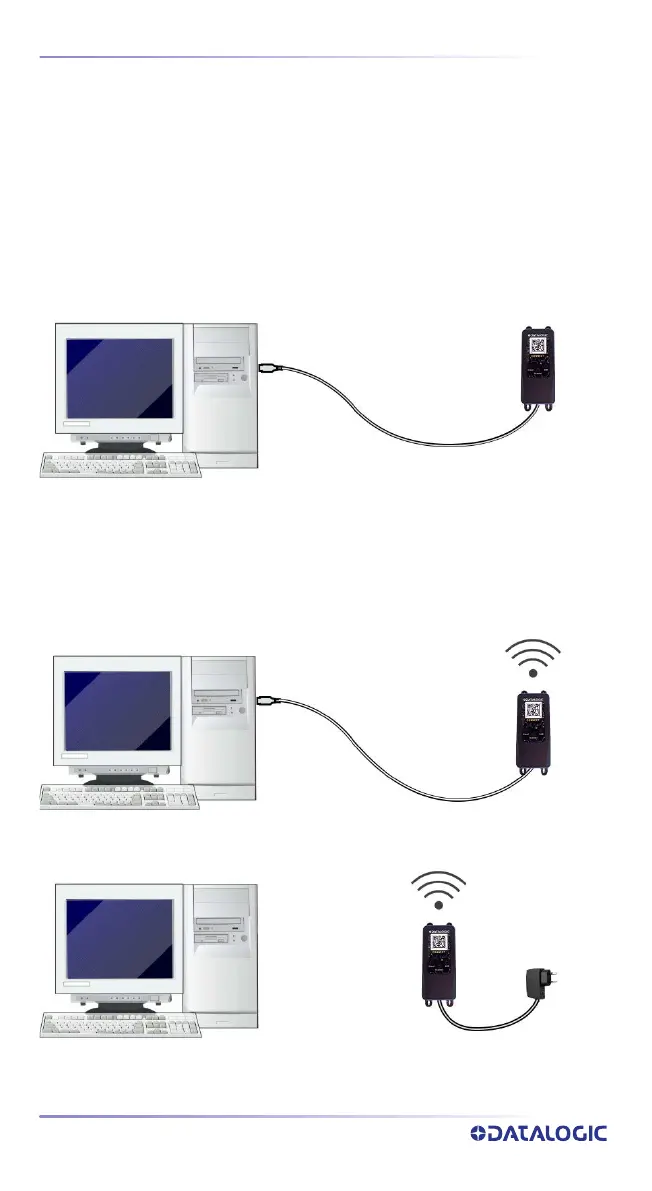

Figure 3. Connection via USB
Wi-Fi
When connecting via Wi-Fi, the Gateway can be powered either via a USB
host or an external power supply (5V).
Figure 4. Wi-Fi - Host supply
Figure 5. Wi-Fi - External power supply
1.
2.
1.
2.
